| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | 381 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $185~$295/pc |
| Packaging Details: | Factory High Quality Digital Temperature and Humidity Data Logger Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | China Oem High Temperature Melt Pressure Transmitter | Measuring Media: | Liquid, Gas |
|---|---|---|---|
| Measuring Range: | -50-300 ℃ | Power Supply Range: | 9 ~ 36VDC |
| Probe Material: | Stainless Steel 304 | Accuracy Class: | ± 0.5 ℃ |
china oem high temperature melt pressure transmitter Ordering guide
Pressure range:
Output:
Power:
Thread:
Electric connection:
Quantities:

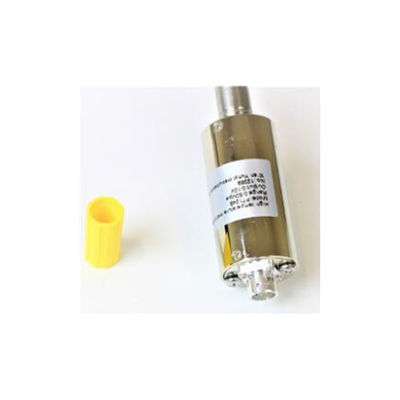

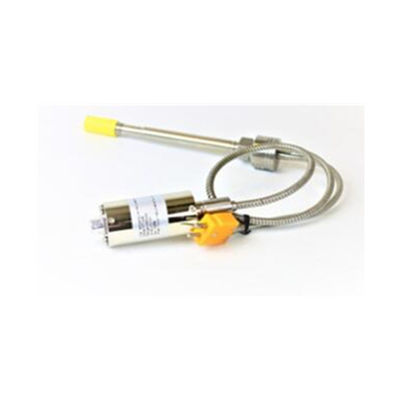

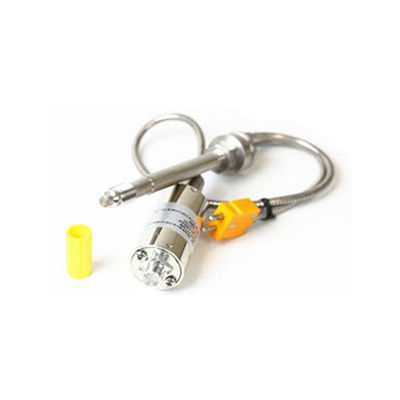

Description china oem high temperature melt pressure transmitter
HTP124 Series Melt Pressure Transducer can achieve the pressure and temperature measuring. This series adopt special material and alloy elastic membrane to low down temperature draft and improve accuracy. The zero & full span can be calibrated, with amplify signal be connected with PLC, and internal 80% calibration. It has the wide application in high-temp liquid pressure measurement and control such as Chemical & Fiber equipment, polyester equipment, etc.
Application china oem high temperature melt pressure transmitter:
Fiber Equipment
Plastic and Rubber manufacturing equipment
Other melt pressure measurement and Control
Technical indicatorschina oem high temperature melt pressure transmitter transducer :
Range: 0….10Mpa to 0….150MPa (0…1500psi to 0…20000psi)
Output: 3.33mV/V; 2mV/V
Accuracy: ±0.5%FS
Excitation: 10VDC
Repeatability: ±0.2%
Diaphragm material: 15-5PH
Bridge resistance: 350 ohms±10%
Overload pressure: 1.5×FSO
Internal calibration: 80%FSO±1%
Insulation Resistance: 1000Megohms @50Vdc
Max. Diaphragm Temp: 350℃
Electric connector: 5PIN, 6PIN, 8PIN
Process connector: 1/2″-20UNF, M14×1.5, M18×1.5(Customer design)
Features china oem high temperature melt pressure transmitter:
High accuracy
Stainless steel welding
Easy to install
Internal 80% calibration
Excellent stability and repeatability
Dimension of china oem high temperature melt pressure transmitter
Standard export carton packing.
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
