| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | WSS |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $5~$29/pc |
| Packaging Details: | Factory High Quality Digital Temperature and Humidity Data Logger Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Name: | Temperature Gauge Bimetal Thermometer, Temperature Gauge | Installation: | Thread, Flange |
|---|---|---|---|
| Application: | Anti-corrosion | Dial: | 100, 150mm Customized |

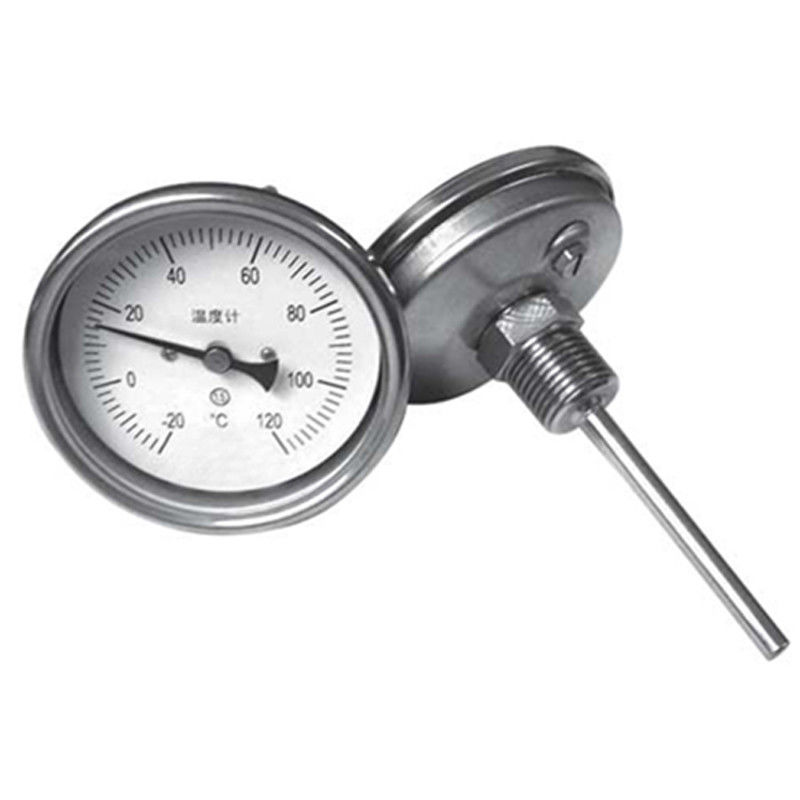

WSS Industrial temperature gauge bimetal thermometer, temperature gauge
Application: WSS Industrial temperature gauge bimetal thermometer, temperature gauge
option ranges stainless steel temperature gauge
It is one kind of thermometers to measure middle and low temperature on the spot. It could be used to directly measure temperature of liquid, vapor and gas ranging from -80 to 500.
Features: WSS Industrial temperature gauge bimetal thermometer, temperature gauge
option ranges stainless steel temperature gauge
1. Directly display temperature on the spot
2. High reliability and long life expectancy
3. Many structure forms to meet different demands
Operation Theory
option ranges stainless steel temperature gauge
Bimetallic thermometer is based on bimetal bended into ring shape. One side of bimetal expands in time of being heated ,which results in revolving of indicator, then the meter indicates corresponding temperature value to pyroelectric potential.
Main Technical Parameters
option ranges stainless steel temperature gauge
1. Executive Standard: JB/T8803-1998 2. Nominal Diameter of Dial: 60, 100, 150
3. Accuracy Class (1.0), 1.5 4. Thermal Response Time:≤40s
5. Protection Class: IP55
6. Angle-adjusting Error, It shall be no more than 1% of its measuring range
7. Return Error, It shall be no more than the absolute value of basic error limit.
8. Repeat, The repeat range shall be no more than 1/2 of absolute value of basic error limit.
option ranges stainless steel temperature gauge
| Measuring Range°C | Application Range | |
| For Industry & Commerce | For Laboratory | |
| -80~+40 | √ | √ |
| -40~+80 | √ | √ |
| 0~50 | √ | √ |
| 0~100 | √ | √ |
| 0~150 | √ | √ |
| 0~200 | √ | √ |
| 0~300 | √ | √ |
| 0~400 | √ | - |
| 0~500 | √ | - |
