| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | RD806 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $335~$595/pc |
| Packaging Details: | Factory High Quality Digital Temperature and Humidity Data Logger Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Range: | 0~35Mpa | Accuracy: | <0.1% |
|---|---|---|---|
| Power Supply: | 24V DC | Output: | 4~20mA /Hart /RS485(Option) |
| Application: | Various Liquids, Solid | Process Temperature: | -40~250℃ |
| Process Pressure: | -1~40BAR | Process Interface: | Thread, Flage (option) |
| Product Name: | Radar Liquid Level Measurement Radar Level Sensor |
radar liquid level measurement vega radar level sensor
Description
Radar level sensor emits a very narrow microwave pulse, the pulse to the speed of light in the space, encountered the surface of the measured medium, part of its energy is reflected back, the same antenna to receive. The time interval between the transmitting pulse and the receiving pulse is proportional to the distance from the antenna to the surface of the measured medium to calculate the distance from the antenna to the surface of the measured medium.

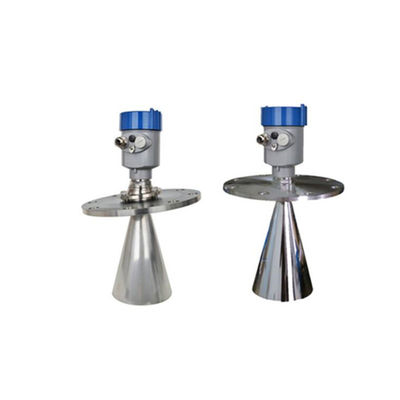

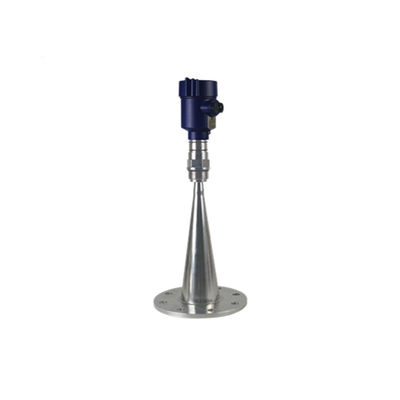

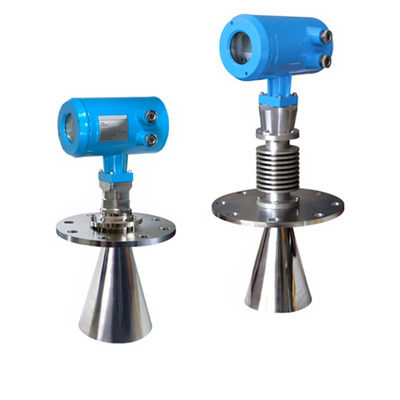

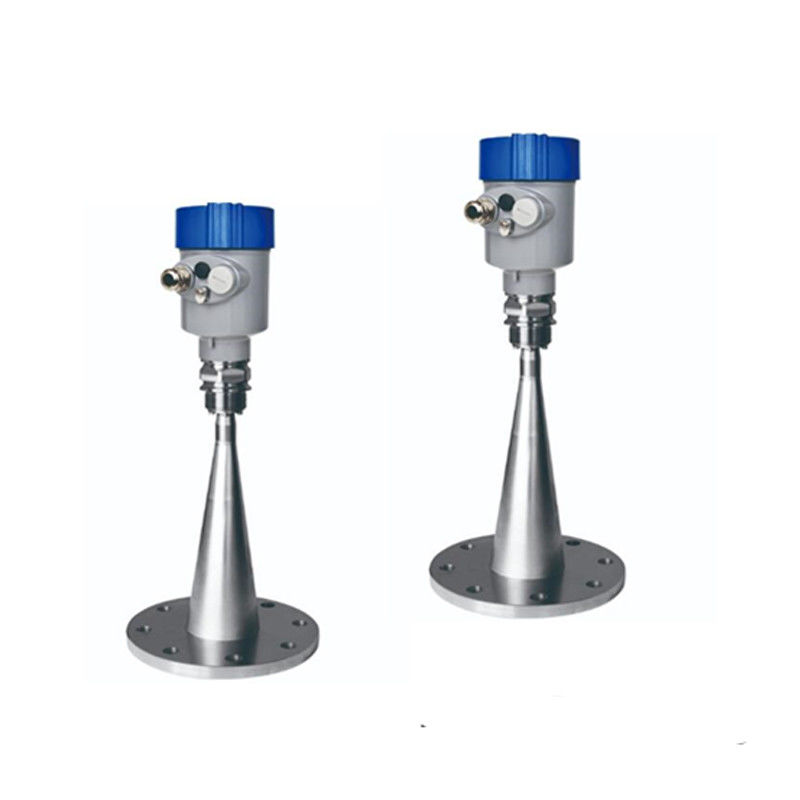

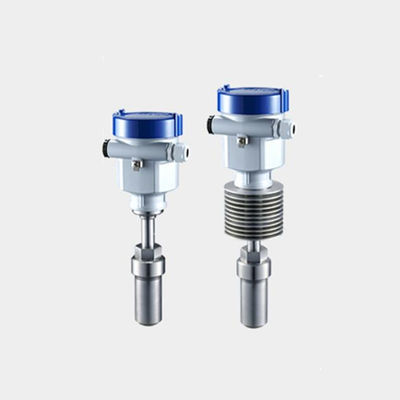

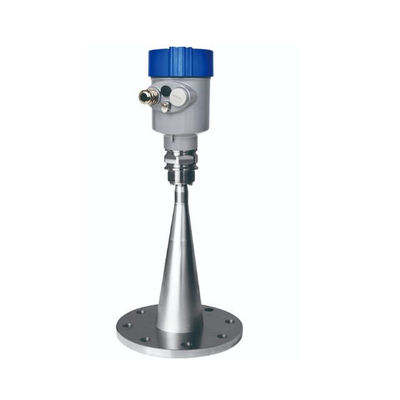

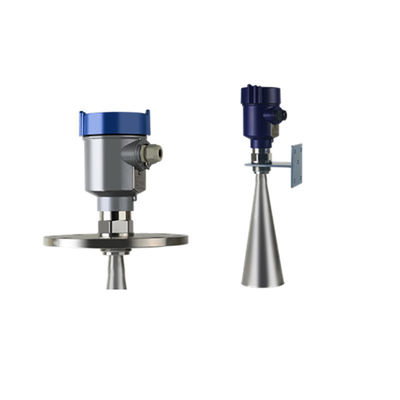

Detailed Images
Specification
| radar liquid level measurement vega radar level sensor | |||
| Model | RD801 | RD802 | RD803 |
| Measuring | 0 ~ 20 Meters, 0 ~ 35 Meters | ||
| Working | 6.8Ghz | ||
| Power Supply | 24V DC (±10%) | ||
| Current Signal | 4 ~ 20mA, RS485 (Optional) | ||
| Accuracy | <0.1% | ||
| Resolution | 1mm | ||
| Environment | -40℃ ~ 250℃ | ||
| Pressure Range | 1 ~ 40bar | ||
| Interface | 2Pcs M20×1.5 or 2Pcs 1/2Npt (Cable OD 5 ~ 9mm) | ||
| Application | Power Plants, Oil Fields, Chemicals, Metallurgy, Cement, Water Treatment, Paper Making and others | ||
| Beam Angle | 24" | 24" | 14" 16" 20" |
| Antenna | PP or PTFE | PTFE | SS |
| Process Connection | Thread (G11/2A or 11/2NPT) | Flange | Flange |
Principle
Radar level transmitter antenna microwave pulse is narrow, the downward transmission antenna. Microwave exposure to the medium surface is reflected back again by the antenna system receives, sends the signal to the electronic circuit automatically converted into level signals (because the microwave propagation speed, electromagnetic wave to reach the target and the reflected back to the receiver this time is almost instantaneous).
Datum measurement: Screw thread bottom or the sealing surface of the flange.
Note: Make sure the radar level meter the highest level cannot enter the measuring blind
area (Figure D shown below).
Features
Ø Small antenna size, easy to install; Non-contact radar, no wear, no pollution.
Ø Almost no corrosion, bubble effect; almost not affected by water vapor in the atmosphere, the temperature and pressure changes.
Ø Serious dust environment on the high level meter work has little effect.
Ø A shorter wavelength, the reflection of solid surface inclination is better.
Ø Beam angle is small, the energy is concentrated, can enhance the ability of echo and to avoid interference.
Ø The measuring range is smaller, for a measurement will yield good results.
Ø High signal-to-noise ratio, the level fluctuation state can obtain better performance.
Ø High frequency, measurement of solid and low dielectric constant of the best choice.
The Installation Requirements
Be installed in the diameter of the 1/4 or 1/6. Note: the distance between the tank wall minimum distance should be tank high 1/10.
Note: 1. datum
2.The container center or axis of symmetry
The top conical tank level, can be installed at
the top of the tank is intermediate, can guarantee the measurement to the conical bottom.
Ø Conical tank cannot be installed above the feed port.
Note: outdoor installation should adopt sunshade.
1. Correct
2. Error rainproof measures
Ø The instrument cannot be installed in the arched or domed roof intermediate. In addition to produce indirect echo is also affected by the echoes. Multiple echo can be larger than the real value of signal echo, because through the top can concentrate multiple echo. So cannot be installed in a central location.
1. Correct
2. Error
Ø There are obstacles affecting measurement needed reflection plate.
1. Correct
2. Error
