| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | LT-10 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $105~$235/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Accuracy: | 0.25%-0.5%F.S | Blind Zone: | 0.2-0.6m |
|---|---|---|---|
| Working Pressure: | 2 Bar (Explore Proof Type Is 5 Bar) | Resolution: | 3mm Or 0.1%F.S (Max Of Them) |
| Medium: | Water, Oil, Or Other. | Output Signal: | 4-20mA,or Other |
| Type: | Explore Proof Type | Product Name: | Ultrasonic Water Tank Level Transmitter Ultrasonic Radar Level Meter |

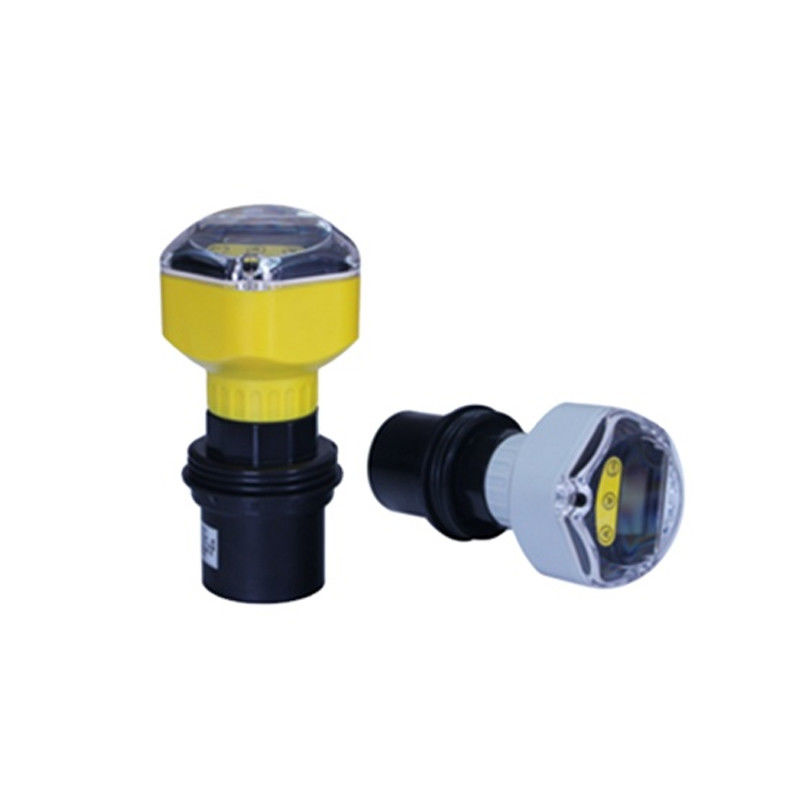

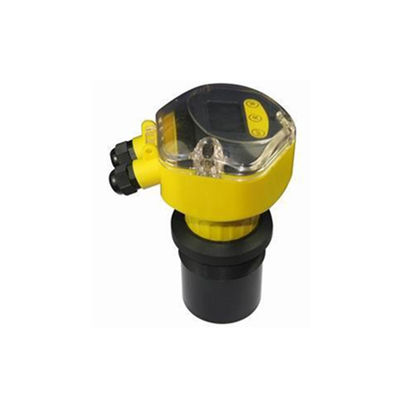

Description of ultrasonic water tank level transmitter ultrasonic Radar Level meter:
ultrasonic level transmitter is instrument of measured material level, which is non-contact, high reliability, cost-effective, easy to install and maintain.
ultrasonic level transmitter
Specifications of ultrasonic water tank level transmitter ultrasonic Radar Level meter :
| Functions | Integrative Type | Segregated Type |
| Level Range: |
Economic Type: 5M, 10M, 12M. Standard Type: 5M, 10M, 15M, 20M,30M, 50M. |
5M, 10M, 15M, 20M,30M, 50M, 70M. |
| Accuracy: | 0.25%-0.5%F.S | 0.25%-0.5%F.S |
| Blind Zone: | 0.2-0.6m | 0.2-0.6m |
| Working Pressure: | 2 Bar (Explore Proof Type is 5 Bar) | 2 Bar (Explore Proof Type is 5 Bar) |
| Resolution: | 3mm or 0.1%F.S (Max of them) | 3mm or 0.1%F.S (Max of them) |
| Display: | English language display:Level measurement, distance measurement, transmission value, ambient temperature, echo state, alarm display, algorithm selection. | English language display:Level measurement, distance measurement, transmission value, ambient temperature, echo state, alarm display, algorithm selection. |
| Analog Output: |
4~20mA/750Ω load resistance (2 wire) 4~20mA/250Ω load resistance (4 wire) |
4~20mA/750Ω load resistance NA |
| Relay /Alarm Output: |
AC 250V/ 8A; DC 30V/ 5A; State programmable (optional for 4 wire) |
AC 250V/ 8A; DC 30V/ 5A; State programmable (optional) |
| Power Supply: |
24VDC 120mA 12VDC (available to offer power by motor, battery or solar power and so on.) |
220VAC+15% 50Hz 24VDC 120mA 12VDC (available to offer power by motor, battery or solar power and so on.) |
| Environment Temperature: |
Meter: -20~+60°C Sensor: -20~+80°C |
Meter: -20~+60°C Sensor: -20~+80°C |
| Communication: | RS485 Communications (optional) | RS485 Communications (optional) |
| Explore Proof: | Ex(ia)ⅡCT6 | Ex(ia)ⅡCT6 |
| Water Proof: |
Economic Type: IP65 Standard Type: IP66 |
Meter: IP65 Sensor: IP68 |
| Cable of Sensor: | Null | Standard: 10 Meters, Max to 200 Meters |
| Sensor Installation: | By level range and model code | By level range and model code |
| Store Request: |
Temperature: -20~+80°C Pressure: atmospheric pressure Humidity: ≤90%RH Others:Non-corrosive gases (optional corrosion probe) or steam, no vibration. |
Temperature: -20~+80°C Pressure: atmospheric pressure Humidity: ≤90%RH Others:Non-corrosive gases (optional corrosion probe) or steam, no vibration. |
Ordering guide ultrasonic water tank level transmitter ultrasonic Radar Level meter:
medium Water, oil, or other.
Working temperature -20°C~80°C or other
Pressure range 5m 10m by order
Output signal 4-20mA,or other
