| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | 322F |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $235~$295/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Digital Ultrasonic Level Meter Water Fuel Depth Finder | Accuracy: | ± 0.3%F.S |
|---|---|---|---|
| Measuring Range: | 0-100M | Blind Zone: | <0.8M (different From Range) |
| Output Signal: | 4~20mA;RS485 | Working Frequency: | 20~2000KHz (optional) |
| Power Supply: | AC220V Or DC24V | Display: | LCD |
| Unit Dimension: | 240*184*110MM | Sensor Cable: | 10M |

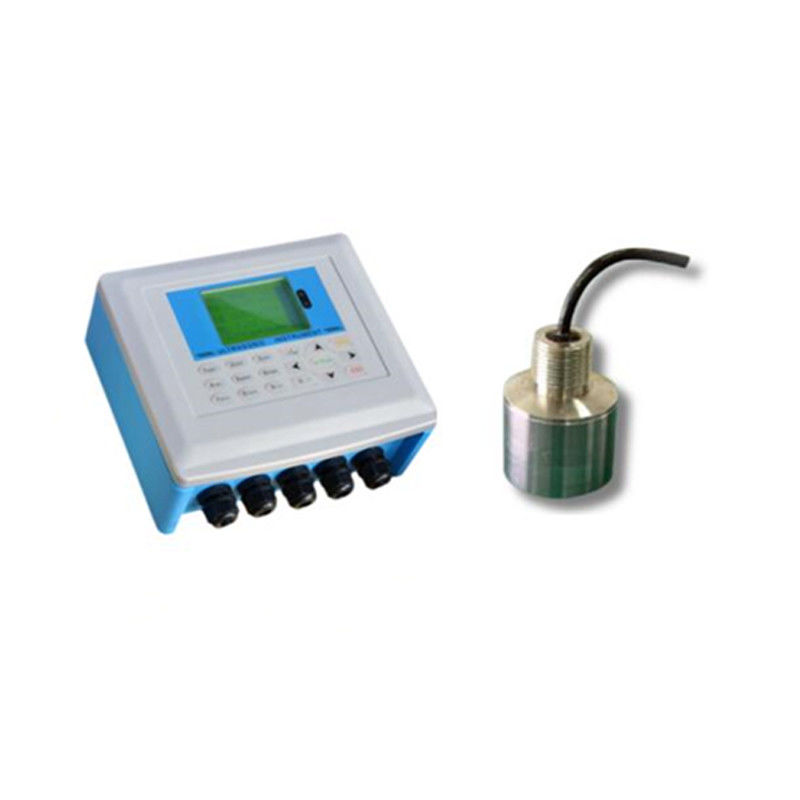

Wall-mounted digital ultrasonic level meter water fuel depth finder
Description
YTH-SX ultrasonic water depth meter is specially designed for the ship to measure the sound depth of water bodies such as reservoirs, lakes, rivers and shallow seas. When measuring the depth, the ultrasonic transducer is placed at a certain position underwater, and the ultrasonic sound velocity VC and ultrasonic waves are used in the water. At the time transmitted to the reception, the instrument automatically converts the water depth H.
There are a variety of signal outputs to make up for the lack of products of traditional water depth meter products without output. It has the advantages of accurate measurement, high reliability, convenient use, simple operation and accurate measurement speed. Ten interference echo points can be recorded. The instrument can measure the depth in still water, or measure the depth in water with a certain speed; the water flow speed can reach 5m/sec. It is an ideal depth measurement for hydrological tests, hydropower plants, reservoir areas, lakes, river surveys and environmental waters monitoring instrument.

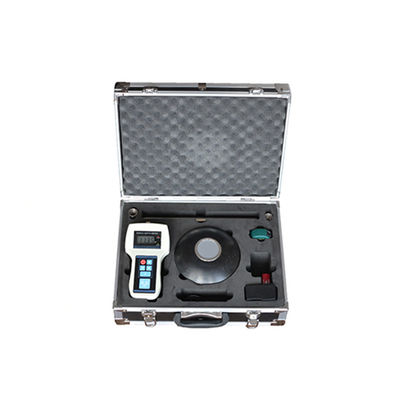

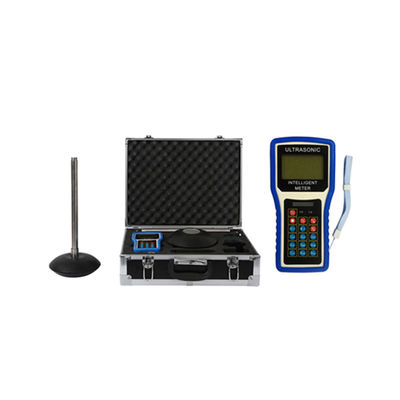

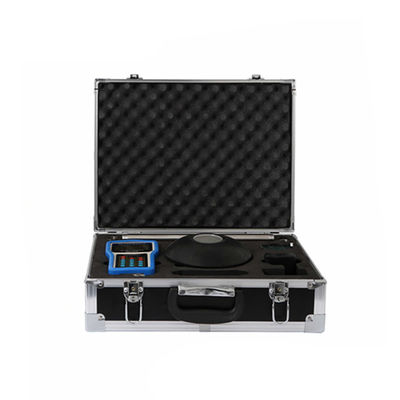

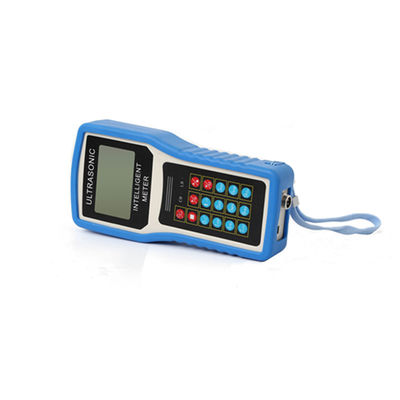

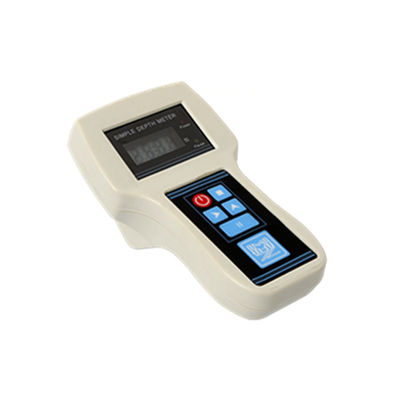

Detailed Images
Specification
| Measuring range | 0-60M,0-100M (at 25 ° C water standard plane) | ||
| Blind zone | <0.8M (different from range) | Working frequency | 20~2000KHz (optional) |
| Min resolution | 1mm | Display | LCD |
| Output signal | 4~20mA;RS485 | Accuracy | ±0.3% F.S |
| Power supply | AC220V or DC24V | Unit dimension | 240×184×110MM |
| Shell material | ABS Engineering plastics | transducer material | stainless steel |
| Connection | Threaded or screwed | Sensor cable | 10M |
| Working temperature | ≤80%RH without condensation | Working pressure | atmospheric pressure |
| Storage temperature | -40~ 70 °C | Detection method | 15Hz/s |
Applications
Hydrological survey, hydropower plant, reservoir area, lake, river survey
Ideal water depth measuring instrument for environmental water monitoring
Mainly used for underwater positioning and measuring water depth on sea, river and lake
Control system supporting use
Features
Sturdystable sensor for harsh industrial applications;
The built-in temperature sensor of the transducer realizes real-time automatic temperature compensation of measured values;
The blind zone can be manually set to shield the interference signal near the probe;
4~20mA isolated current output, optional fieldbus interface;
Perfect range measurement function, can be used as ordinary level gauge or level gauge
