| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | LE-200 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $135~$195/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Accuracy: | 0.25%FS | Output: | 0~10VDC (three Wire) |
|---|---|---|---|
| Range: | 0-5-10-20-50-100-200m | Connection: | G1/4, G1/2, 1/2NPT, 1/4NPT, M12 * 1.5, Etc. (can Be Customized) |
| Medium Temperature Range: | -20~85°C | Response Time: | ≤5mS |
| Power Supply: | 24V Dc(15~30VDC) | Pressure Type: | Gauge Pressure |

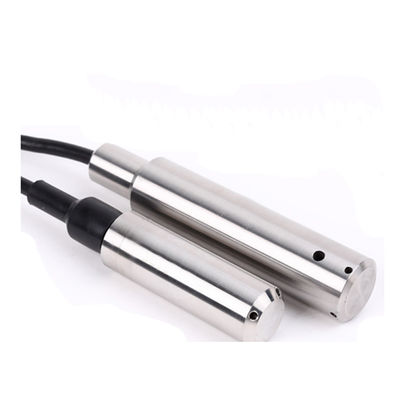

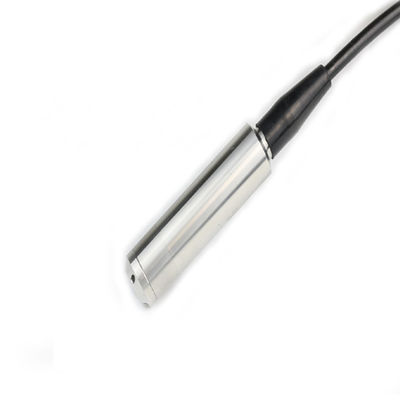

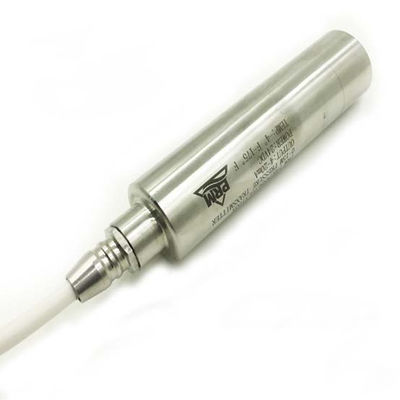

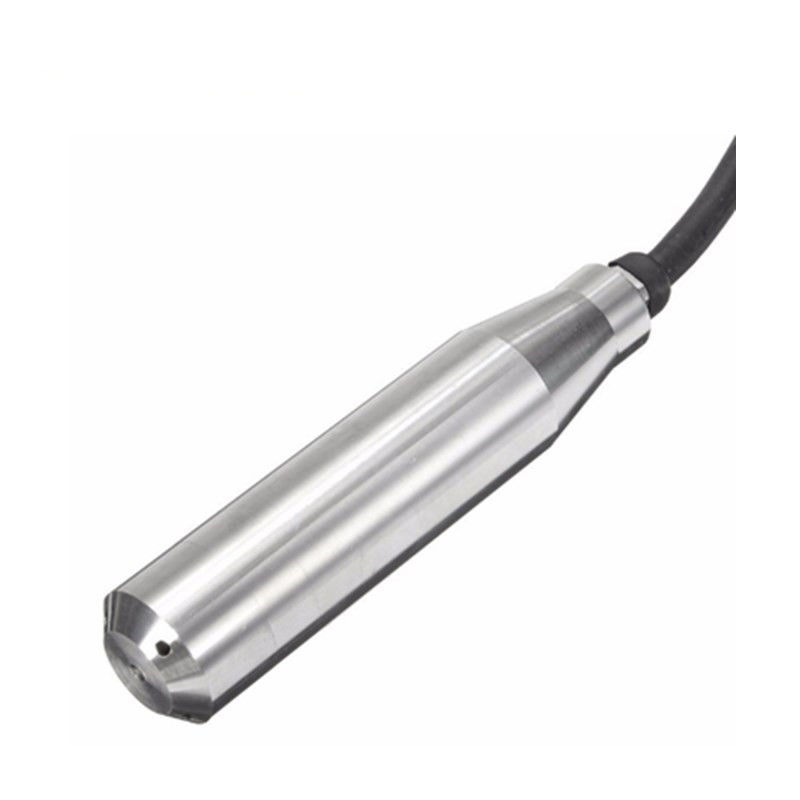

| Stability: | ≤±0.15%FS/ Year | Product Name: | Tank Input Hydrostatic 4-20ma Submersible Water Level Transmitter |
Application of low cost tank Input Hydrostatic 4-20ma submersible water level transmitter:
Input Hydrostatic Level Sensor / Tank Water Level Sensor used in the liquid level measurement of the water tank, oil level in oil tank, water sink (oil sink), wells, water towers, river, reservoir, sewage treatment equipment, sea water, groundwater monitoring, etc.
Technical Data of low cost tank Input Hydrostatic 4-20ma submersible water level transmitter:
Ordering guide low cost tank Input Hydrostatic 4-20ma submersible water level transmitter
| SLK-200 | Input Liquid Level transmitter | ||||||||
| Code | Measurement Range | ||||||||
| 1 | (0-1)mH2O | ||||||||
| 2 | (0-5)mH2O | ||||||||
| T | Special specification | ||||||||
| Code | Accuracy grade | ||||||||
| 1 | 0.2 | ||||||||
| 2 | 0.5 | ||||||||
| Code | Explosion proof type | ||||||||
| M | Explosion proof type | ||||||||
| N | Standard type | ||||||||
| I | EX iaⅡCT6 | ||||||||
| D | EX dⅡBT4 | ||||||||
| Code | Display or not | ||||||||
| M0 | display | ||||||||
| M1 | None | ||||||||
| M2 | LCD digital display | ||||||||
| Code | Output | ||||||||
| E | 4~20mA | ||||||||
| V | 0-5V | ||||||||
| S | 0-10V | ||||||||
| T | Special specification | ||||||||
| Code | Probe material | ||||||||
| A1 | SUS304 | ||||||||
| A2 | SUS316L | ||||||||
| Code | Material | ||||||||
| B | Cable sheath material | ||||||||
| B1 | Polyethylene rubber | ||||||||
| B2 | PTFE | ||||||||
| B3 | |||||||||
| Code | Power supply | ||||||||
| V1 | 24V DC | ||||||||
| V2 | Special specification | ||||||||
External dimension
Connection diagram
Installation notice
