| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | RD809 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $345~$695/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Hot Sale Oem Radar Fuel Tank Level Detectorl Meter Sensor | Range: | 0~35M |
|---|---|---|---|
| Accuracy: | <0.1% | Application: | Various Liquids, Solid |
| Power Supply: | 24V DC | Feature: | Digital Radar Level Meter |
| Process Temperature: | -40~250℃ | Process Pressure: | -1~40BAR |
| Output: | 4~20mA /Hart /RS485(Option) | Process Interface: | Thread, Flage (option) |

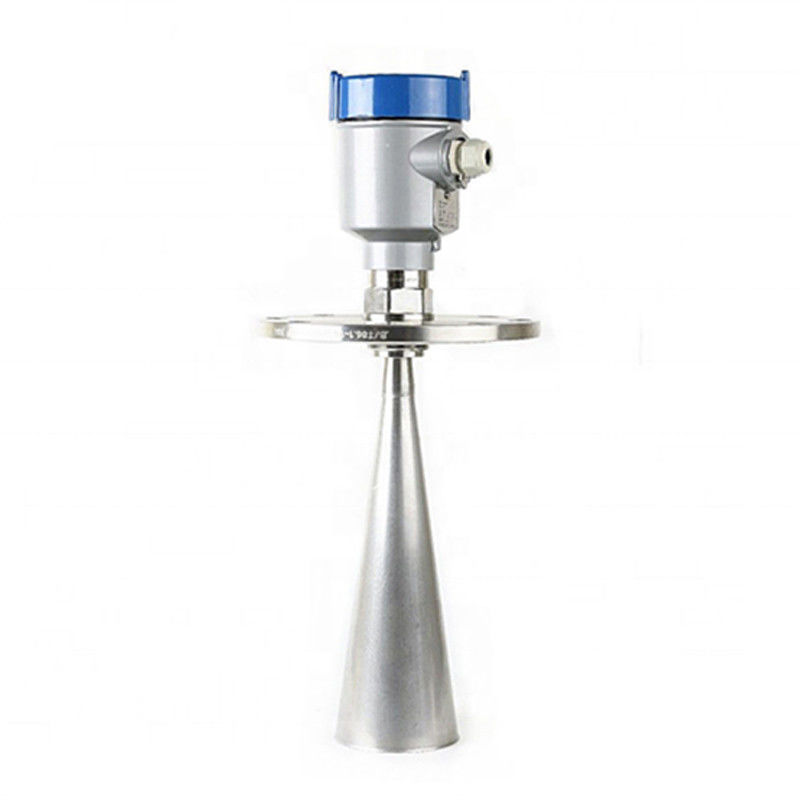

hot sale oem radar fuel tank level detectorl meter sensor
Radar level sensor emits a very narrow microwave pulse, the pulse to the speed of light in the space, encountered the surface of the measured medium, part of its energy is reflected back, the same antenna to receive. The time interval between the transmitting pulse and the receiving pulse is proportional to the distance from the antenna to the surface of the measured medium to calculate the distance from the antenna to the surface of the measured medium.
hot sale oem radar fuel tank level detectorl meter sensor
Digital radar water level sensor low price,2017 digital level sensor

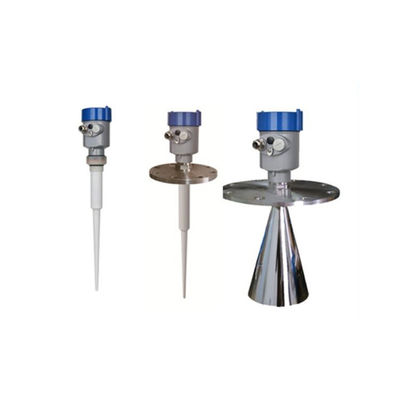

RD801 RD802 RD803
hot sale oem radar fuel tank level detectorl meter sensor
| Model | RD801 | RD802 | RD803 |
| Measuring Range | 0~20 meters , 0~35 meters | ||
| working frequency | 6.8Ghz | ||
| Power supply | 24VDC(+/-10%) | ||
| Current signal | 4~20mA ,RS485 (optional) | ||
| Accuracy | <0.1% | ||
| Resolution | 1mm | ||
| Response time | 0.2S | ||
| Environment Temperature | "-40~250℃ | ||
| Pressuage gauge | "-1~40bar | ||
| Interface | 2pcs M20*1.5 or 2pcs 1/2NPT (Cable OD 5~9MM) | ||
| Application | Power plants, oil fields, chemicals, metallurgy, cement, water treatment, paper making, and others | ||
| Beam angle | 24" | 24" | 14" 16" 20" |
| Antenna material | PP or PTFE | PTFE | SS |
| Process Connection | Thread(G11/2A or 11/2NPT optional) | Flange | Flange |
Power plant: coal pile, the original coal bunker, fuel tanks, reservoirs, waste gas purification tank, warehouse pumps, ash library, fuel tanks, etc.
Oil field: crude oil or refined oil storage tank, three - phase separator, settling tank, sewage tank and oil - water interface, drilling mud tank;
Chemical: crude oil distillation tower, raw materials and intermediate silos, reaction tanks, ammonia tanks, solid silos, separators, etc .;
Metallurgical: ore silo, ore grinder, raw materials warehouse, auxiliary materials warehouse, blast furnace, alumina powder warehouse, electrolytic tank buffer tank;
Cement: stone warehouse, raw silo, cement warehouse, coal warehouse, slag storage bin;
Water treatment: reservoirs, sewage tanks, water treatment tanks, sedimentation tanks, deep wells, drinking water networks;
Paper: raw materials warehouse, storage tower, drying drum, chemical materials storage warehouse, etc.
Other: quarry, food, pharmaceutical, environmental protection, shipbuilding and other industries;
Established with 10 million capital in 2015, Xi'an Shelok Instrument Co., Ltd. is a professional designer and manufacturer that engaged in the fields of pressure measurement instruments. We specializing in developing high precision pressure transmitter, pressure gauges, pressure calibration pump and dead weight tester,level transmitter, flow meter etc., widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
Specialties
pressure transmitter/sensor/transducer, pressure gauge, pressure calibration hand pump, and water level sensor
1, more than 10 years industry background
The original organization is Xi'an Precise Instruments Factory, established in 2007, and mainly produce pressure gauge, stainless steel pressure gauge, anti-vibration pressure gauge, pressure transmitter, pressure switch, pressure calibrator, and so on.
In 2013, Yunyi Group is established for development command, and process measurement instruments about water, flow, temperature are added in our product catalogue.
In 2015, Xi'an Shelok instruments Co., Ltd is estalished with 10 million capita for meeting the international business expanding demand.
2, a company of design and manufacture capability
Mainly focus on design and customized solution offer, and combining our professional industry background and our capability of supply chain management in local market, more comprehensive products and services could be offered.
3, R&D team + cooperation with colleges and universities
Keeping our capability of technology innovation improved makes us available to meet various technical challenges
4, three inspection steps + good warranty service
Strict inspection operation process keeps our products qualified, and clearly warranty policies help customer's solve after-sale problems and lower their cost.
5, sample first policy.
By offering most suitable proposal to help customers maximize their profit.
6, employees with + 4 years international experience are more than 100%
Professional and effective international business operation offers better service expericence
