| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | NU40F30TR |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $45~$95/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Measuring Range: | 200~5000mm | Frequency: | 40KHz |
|---|---|---|---|
| Angle: | 30,40,60° | Output: | NPN,PNP,0-10V,0-5V |
| Blind Area: | 100mm | Repeat Accuracy: | 0.5%±0.5cm |
| Power Consumption: | 20 Ma | Temperature Drift: | 0.3%/°C |
| Linearity: | <1% | Respond Time: | 30,40,50ms |

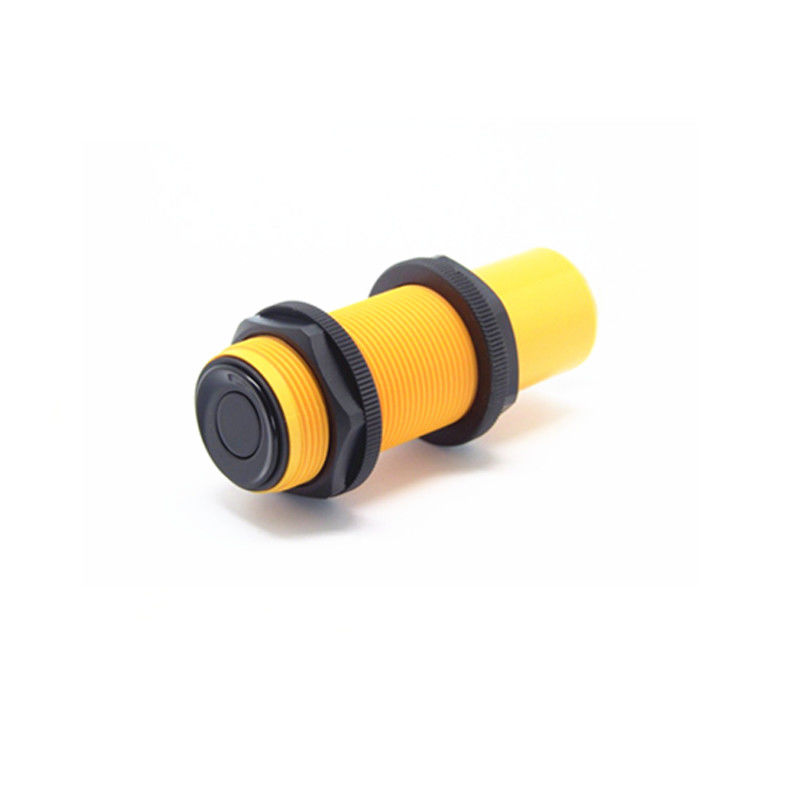

Ultrasonic fuel non contact liquid level sensor water
Description
The ultrasonic level sensors are mainly used in level measuring,distance detection, anti-theft alarm, intelligent toys, automatic control and other fields.With a variety of output mode, according to customer demand for customized products.
Detailed Images
Features
Waterproof and dustproof
High sensitivity and precision
Good durability in temperature and humidity
Stable performance
Cost-Effective
Specification
| Model | NU40F30TR | |||
| NPN | N-200D | N-300D | N-400D | N-500D |
| PNP | P-200D | P-300D | P-400D | P-500D |
| 0-10V | U-200D | U-300D | U-400D | U-500D |
| 0-5V | U2-200D | U2-300D | U2-400D | U2-500D |
| Measuring range | 20-200cm | 20-300cm | 25-400cm | 30-500cm |
| Angel | 30 | 40 | 60 | 60 |
| Respond time | 30ms | 40ms | 50ms | |
| Repeat accuracy | 0.5%±0.5cm | |||
| Temperature drift | 0.3%/ºC(no temperature compensation) | |||
| Linearity | 1% | |||
| Resolution | 1cm | |||
| Synchronization function | no | |||
| Power consumption | 20 ma | |||
| Protection circuit | anti-reverse protection, instantaneous overvoltage protection | |||
| Sensor frequency | 40KHz | |||
| Working temperature | - 20 ° C ~ + 60 ° C | |||
| Storage temperature | -40 ° C to + 70 ° C | |||
| Shell material | stainless steel | |||
| weight | 165 g | |||
| Cable length | 2m | |||
Dimension
Applications
Measurement of liquid level and oil level
Measuring diameter and coil diameter
Material height control

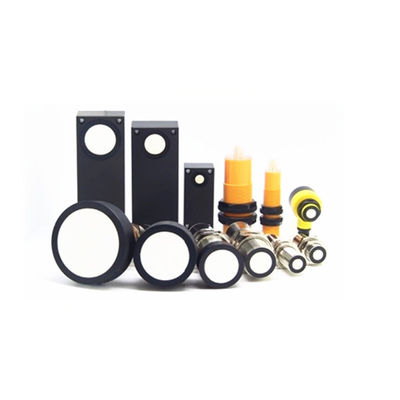

Related products
