| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | RD809 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $435~$695/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | High Accuracy Gasoline Diesel Radar Level Transmitter |
|---|
Description

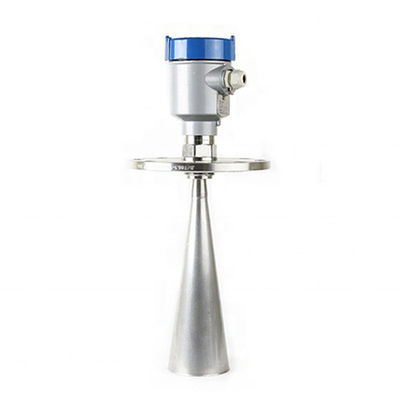

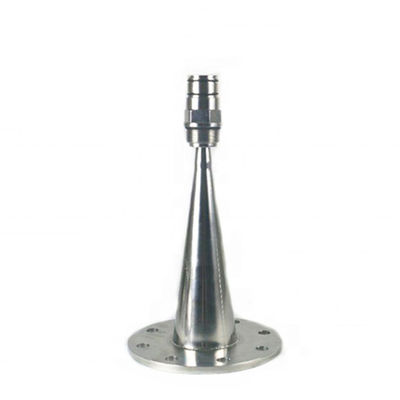

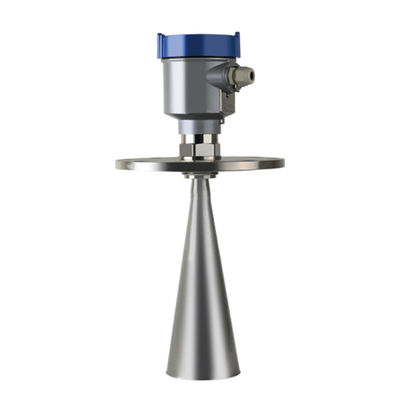

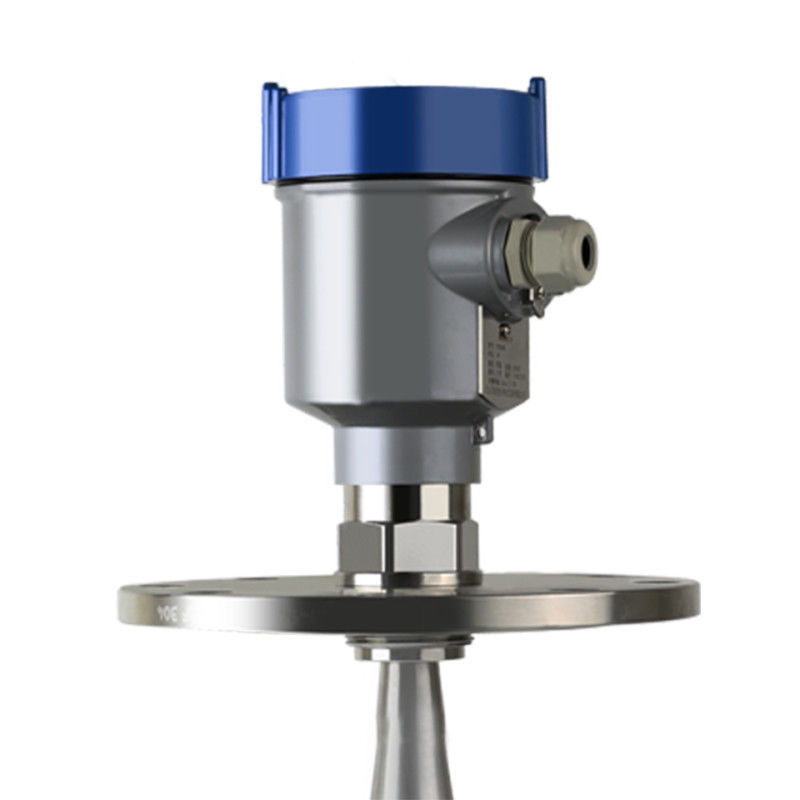

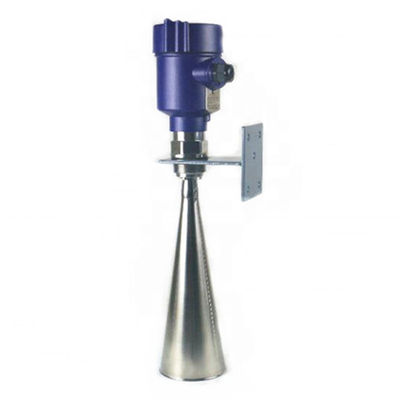

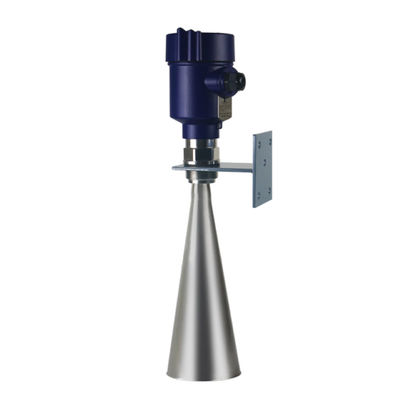

Detailed Images
Basic model composition and representative meaning
| Model | Meaning | Working condition |
| S809A1 | Rod antenna | Corrosive medium |
| S809A2 | Horn antenna | High temperature, high pressure, and slightly corrosive liquid |
| 809A3 | Universal horn antenna | Strong dust, easy to crystallize and easy to condense condition |

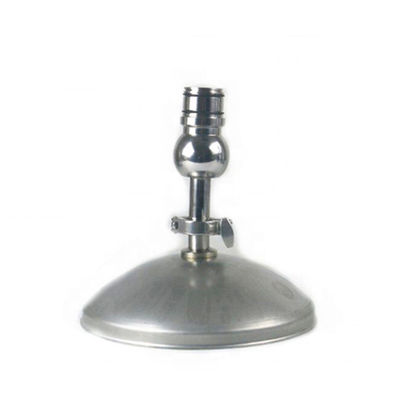

| 809A4 | Parabolic antenna | Strong dust, easy to crystallize and easy to condense condition |
| 809A5 | Under Flanged horn antenna | Hygienic liquid storage container, strong corrosive container |
Applications
Representative working conditions: acid tank
809A1 For measuring acid tank containers
Selection Guide
|
Item
|
Code | Parameter |
|
Anti-explosion
|
P | Standard type (non-explosion proof) |
| I | Intrinsically safe type (Exib IIC T6 Gb) | |
| D | Intrinsically safe + explosion-proof type (Exd [ib] ib IIC T6 Gb) | |
|
Process connection/material |
G | Thread G1 12A |
| N |
Thread 1 1 2NPT
|
|
| A | Flange DN50 PP | |
| B | Flange DN80 PP | |
| C | Flange DN100 PP | |
| Y | Special custom | |
| Antenna Type Material Process Temperature Antenna Length | A | Sealed horn 45 PTFE (-40~120)℃ 138mm |
| B |
Sealed horn 75 PTFE (-40~120)℃ 238mm
|
|
|
Antenna extension |
H | Not extended |
| S | l00mm | |
| L | l50mm | |
|
Electronic unit |
2 | (4~20)mA Two-wire system |
| 3 | (4~20)mA (24)VDC HART Two-wire system | |
| 4 | (4~20)mA (~24)VDC HART Four-wire system | |
| 5 | (4~20)mA (~220)VAC HART Four-wire system | |
|
Shell Protection level
|
L | Aluminum IP67 |
| G |
Stainless steel 304 IP67
|
|
|
On-site display programming |
A | with |
| X | without | |
| Special agreement | Y | Special agreement |
