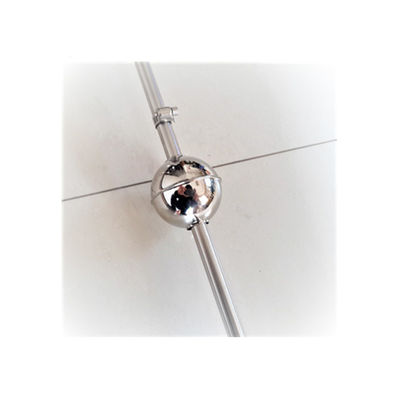

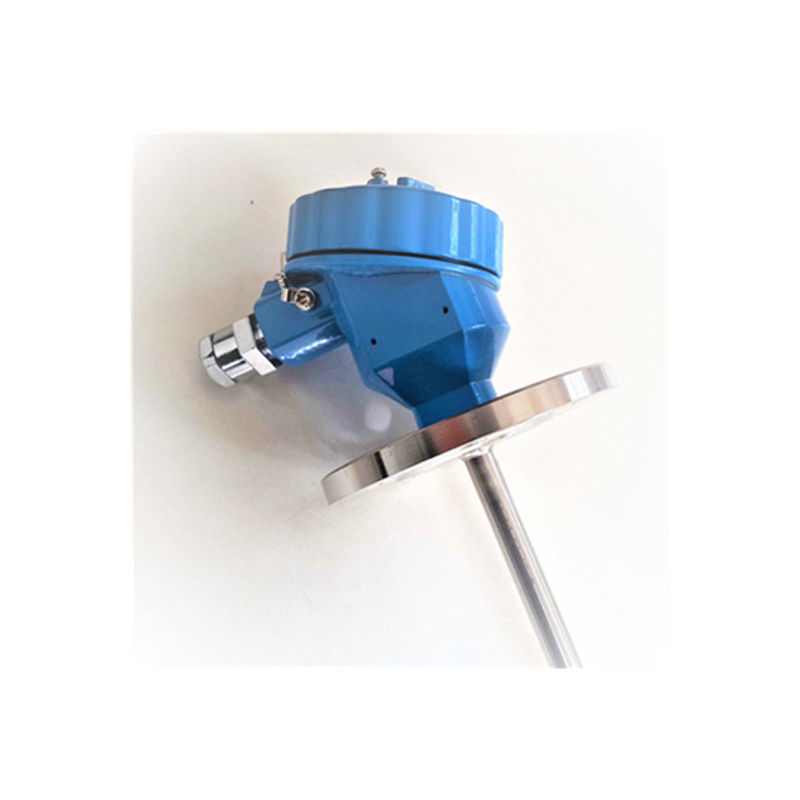

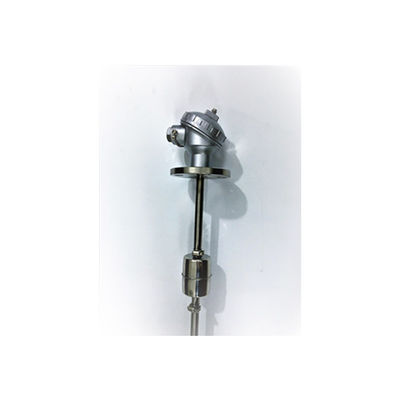

Liquid magnetic float level sensor/level meter

Description of Liquid magnetic float level sensor/level meter:

Magnetic float liquid level sensor works: generating a start pulse from inside the vault electronic circuit, when the initial pulse propagation in the wave guide filaments, while producing a rotating magnetic field direction along the wave guide wire, and when the magnetic field and the magnetic ring or a float mechanism can pick up a permanent magnetic field meet magneto strictive effect, so that the occurrence of the wave guide twist yarn.

Specification of Liquid magnetic float level sensor/level meter:

01, Range: 0 to 12 m, (can be customized according to user requirements);
02 Power supply: 24VDC;
03, the signal output: 4 ~ 20mA standard current signal;
04, the measurement accuracy: ± 1mm or 0.3% FS (current output type);
05, working pressure: ≤4.0Mpa;
06, media requirements: Density ≥0.5g / cm3, viscosity ≤0.005Pa.s;
07, operating temperature: T1: 0 ~ 70 ℃, T2: -25 ~ + 80 ℃, T3: -40 ~ + 85 ℃;
08, repeatability error: better than 0.01% FS;
09, Resolution: better than 0.01% FS
10. Hysteresis: better than 0.01% FS
11, temperature effects: ± 0.007% FS / ℃
12, zero adjustment range: 20% FS
13, a full-scale adjustment range: 20% FS
14, the frequency response time: 0.2 ~ 5ms (based on range size);
15. Connection: flange connection;
16, proof mark: flameproof: EXd Ⅱ BT4
17, shell protection: IP65
18, the spindle pressure: ≤34Mpa

Select table of Liquid magnetic float level sensor/level meter:
