| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | L200 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $45~$95/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Input Liquid Capacitive Level Pressure Transmitter | Output Signal: | 4 ~ 20mAor 0 ~ 10V |
|---|---|---|---|
| Power Supply Voltage: | 24V DC | Temperature: | -20 To 80℃ |
| Diaphragm: | 316 Stainless Steel | Probe: | 1Cr18Ni9Ti |
| Liquid Level Transmitter Measuring Range: | 0 - 200m | Application: | Liquid |
| Type: | Submersible Pressure Level Sensor | Accuracy: | 0.5%FS |

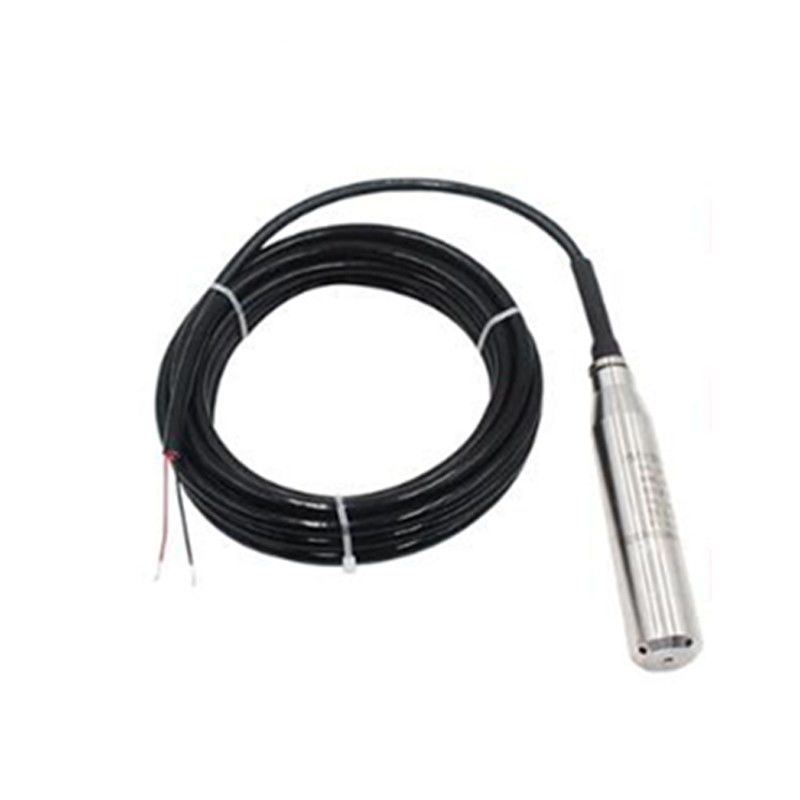

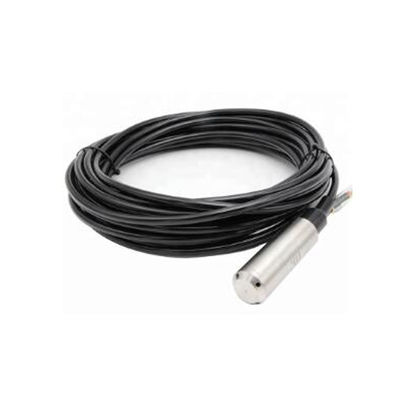

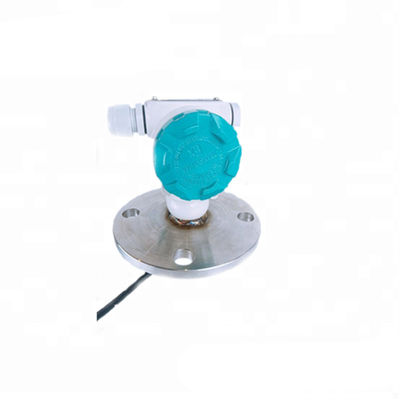

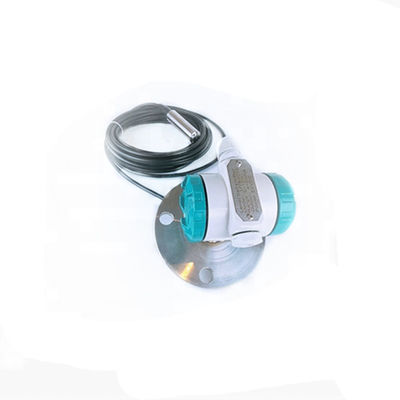

Description of Input liquid capacitive level pressure transmitter :
liquid level transmitter is compose of full sealed isolation membrane oil-filled level sensor and special instrument circuit. With the advantages of high measuring precision, good stability, long service life, convenient installation, etc.
With unique technology of sealing structure form, and good anti-leakage performance,immersed in a liquid reliable operation for a long time.
Specifications of Input liquid capacitive level pressure transmitter :
1).Measurement object: liquid level of water, oil, paste
2).Measuring range: 0 - 200m
3).Output signal: 4 ~ 20mAor 0 ~ 10mA
4).Power supply voltage: 24VDC
5).Temperature: -20 to 80℃
6).Index Table: user select
7).Material: die-casting aluminum alloy shell, epoxy coating surface
8).Diaphragm: 316 stainless steel
9).Probe: 1Cr18Ni9Ti
| Pressure Range | 0-1 0-2 0-5 0-10 0-20 0-30 0-50 0-100 0-150 0-200m |
| Accuracy | ±0.1% ±0.2% ±0.3% ±0.5% |
| Power Supply | 24VDC (12-30VDC) |
| Signal Output | Two Wire: 4-20mA 0-10mA Three Wire: 1-5VDC 0-5VDC |
| Operating Temperature Range | -20 to 80℃ |
| Connection Size | Inputting Type: Φ22 or Φ27 Pipe connection: M20*1.5 Flange connection: DN50 or DN30 or customized |
| Medium | Liquid compatible with 316LSS |
Standard export carton packing.
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
