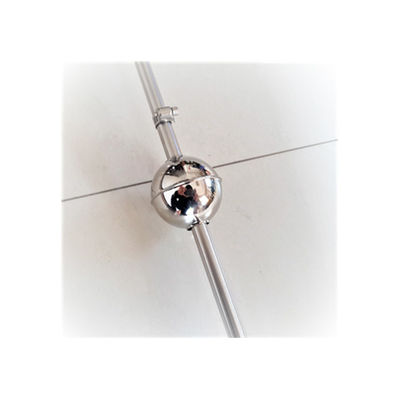

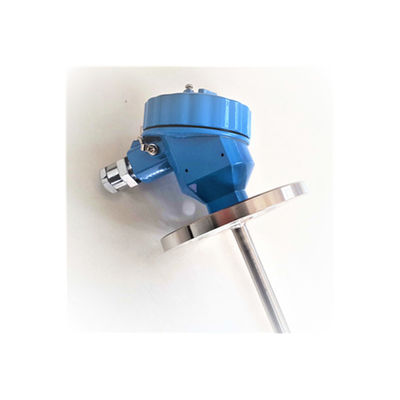

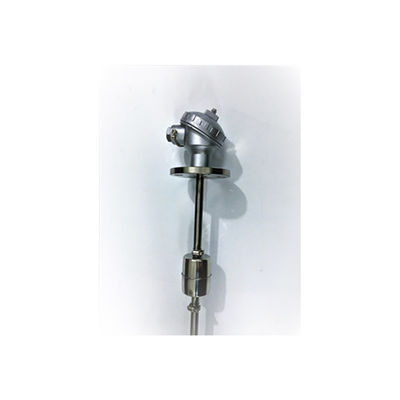

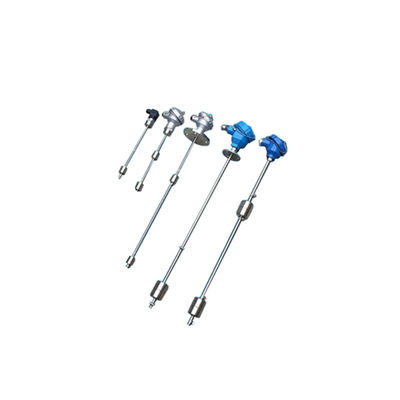

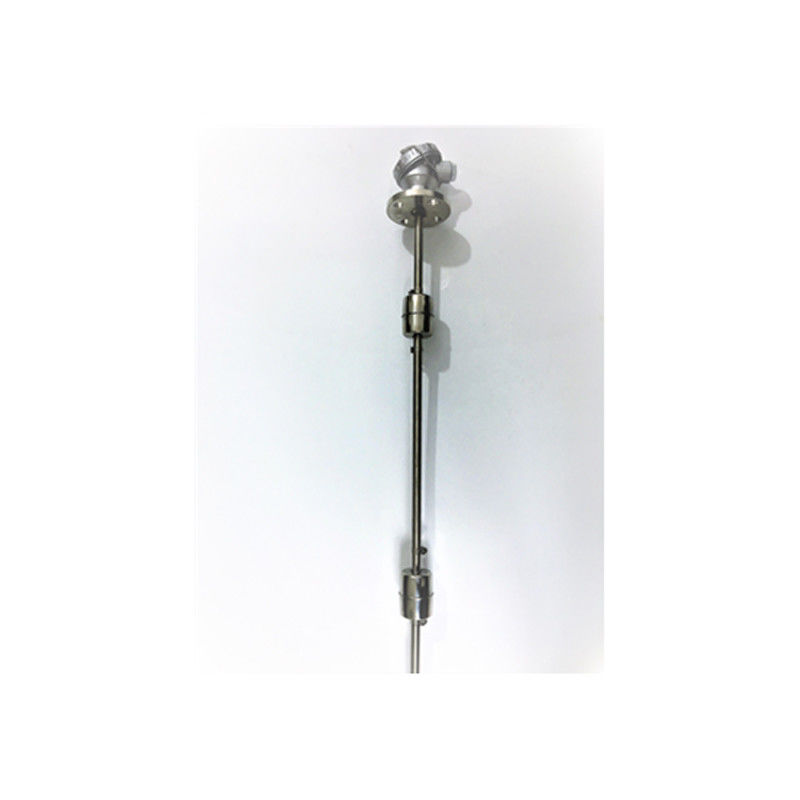

Low price ball float level sensor/level meter

Description of Low price ball float level sensor/level meter:

Magnetic float liquid level sensor works: generating a start pulse from inside the vault electronic circuit, when the initial pulse propagation in the wave guide filaments, while producing a rotating magnetic field direction along the wave guide wire, and when the magnetic field and the magnetic ring or a float mechanism can pick up a permanent magnetic field meet magneto strictive effect, so that the occurrence of the wave guide twist yarn.

Specification of Low price ball float level sensor/level meter:

01, Range: 0 to 12 m, (can be customized according to user requirements);
02 Power supply: 24VDC;
03, the signal output: 4 ~ 20mA standard current signal;
04, the measurement accuracy: ± 1mm or 0.3% FS (current output type);
05, working pressure: ≤4.0Mpa;
06, media requirements: Density ≥0.5g / cm3, viscosity ≤0.005Pa.s;
07, operating temperature: T1: 0 ~ 70 ℃, T2: -25 ~ + 80 ℃, T3: -40 ~ + 85 ℃;
08, repeatability error: better than 0.01% FS;
09, Resolution: better than 0.01% FS
10. Hysteresis: better than 0.01% FS
11, temperature effects: ± 0.007% FS / ℃
12, zero adjustment range: 20% FS
13, a full-scale adjustment range: 20% FS
14, the frequency response time: 0.2 ~ 5ms (based on range size);
15. Connection: flange connection;
16, proof mark: flameproof: EXd Ⅱ BT4
17, shell protection: IP65
18, the spindle pressure: ≤34Mpa

Select table of Low price ball float level sensor/level meter:

Established with 10 million capital in 2015, Xi'an Shelok Technology Instrument Co., Ltd. is a professional designer and manufacturer that engaged in the fields of pressure measurement instruments. We specializing in developing high precision pressure transmitter, pressure gauges, pressure calibration pump and dead weight tester,level transmitter, flow meter etc., widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.

Specialties

pressure transmitter/sensor/transducer, pressure gauge, pressure calibration hand pump, and water level sensor

1, more than 10 years industry background

The original organization is Xi'an Precise Instruments Factory, established in 2007,In 2013, Yunyi Group is established for development command.In 2015, Xi'an Shelok instruments Co., Ltd is estalished with 10 million capita for meeting the international business expanding demand.

2, a company of design and manufacture capability

Mainly focus on design and customized solution offer, and combining our professional industry background and our capability of supply chain management in local market, more comprehensive products and services could be offered.

3, R&D team + cooperation with colleges and universities

Keeping our capability of technology innovation improved makes us available to meet various technical challenges

4, three inspection steps + good warranty service

Strict inspection operation process keeps our products qualified, and clearly warranty policies help customer's solve after-sale problems and lower their cost.

5, sample first policy.

By offering most suitable proposal to help customers maximize their profit.

6, employees with + 4 years international experience are more than 100%

Professional and effective international business operation offers better service expericence

Q:How long will you reply me?

A:We will contact you as soon as possible but within 12 hours

Q: Can I get some samples?

A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.

Q: What's delivery time?

A: It usually takes about 3-5 working days for small order and 10-15 days for big order.

Q:How do you control your quality ?

A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).

Q: What's your warranty terms?

A: We offer 12 months warranty time.

Q:can you provide OEM & Customized service?

A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
