| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | 3051LT |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $235~$495/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | China 4-20mA Differential Pressure Level Transmitter | Output: | RS485,4-20mA |
|---|---|---|---|
| Power Supply: | 24V DC | Accuracy: | 0.5%FS |
| Ambient Temperature: | -40℃~+85℃ | Temperature Effect: | ±0.04%/10K Or ±0.08%/10K |
| Type: | Pressure Senor | Measuring Range: | -100kPa ~ 0 ~ 5KPa ... 100MPa |
| Response Time: | ≤2 Ms | Warranty: | 12 Months |

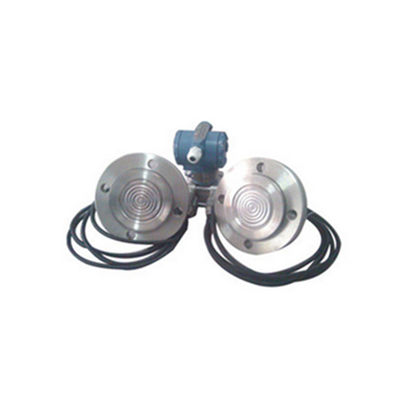

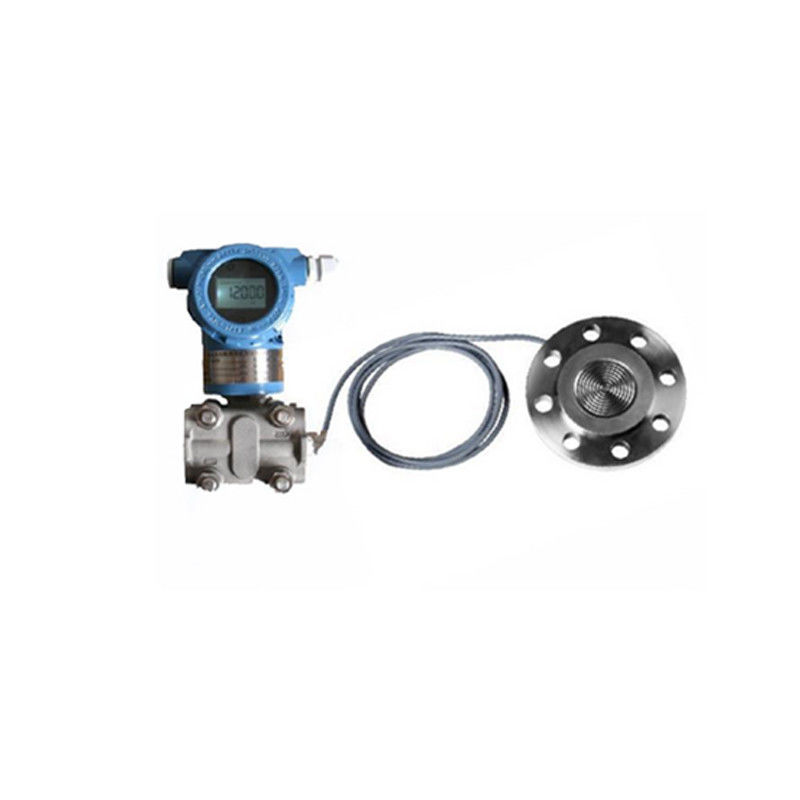

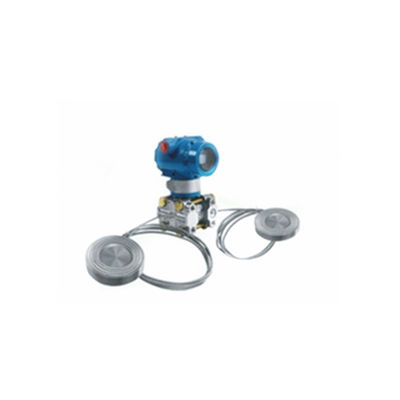

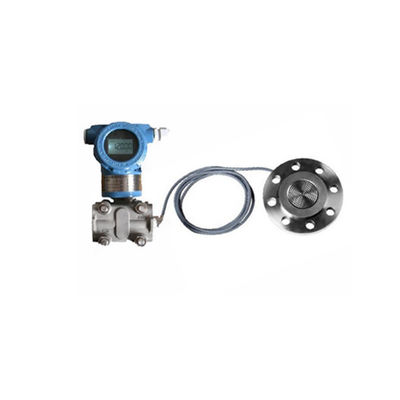

China 4-20mA differential pressure level transmitter
Capacitive Pressure Transmitter is the result of a combination of self-developed anti-jamming, high stability digital circuits and the introduction of foreign Single crystal resonant silicon sensor technology. Its performance much better than our domestic metal capacitive sensor technology transmitter, and main show in the field zero stability and long-term operation stability, and rapid response.
Good quality,Excellent service
From the European core sensor components
0-100Pa-3MPa,full range coverage
Temperature changes are minimal and can be controlled at ±0.4%/10K
Double overload protection film design, one-way over pressure up to 40Mpa
China 4-20mA differential pressure level transmitter
Range:-0.1~0~0.001~100MPa(option)
Acuracy:0.1%FS/0.2%FS
Output singal:4~20mA or0~5VDCor0~10VDC or 1-5VDC
Power supply:12.5~45VDC
Medium temperature:-40~104℃
Medium:gas,liquid
output singal:4~20mAor 0~5VDC or 0~10VDC or 1-5VDC
Power supply:12~36VDC
Medium temperature:-40~85℃
out temperature:-40~85℃
Zero temperature drift:±0.01%FS/℃
Range Temperature drift: ± 0.01% FS / ° C
Compensation temperature: 0 ~ 70 ℃
Safety overload: 150% FS
Limit overload: 200% FS
Protection class: IP65
Sampling frequency: ≤2ms
Load capacity: (current type) 250 ~ 1425Ω (voltage type) ≥ 2KΩ Seal class: IP65
Long-term stability: ± 0.1% FS / year
pressure type:Negative pressure ,absolute pressure,gauge pressure,sealing pressure(absolute pressure plus 140)
Mechanical connection (thread interface): flange DN25 (price) DN30 (plus 20) DN40 (plus 40) DN50 (plus 60) DN65 (plus 80) DN80 (plus 120) DN100 (plus 150).
Established with 10 million capital in 2015, Xi'an Shelok Instrument Co., Ltd. is a professional designer and manufacturer that engaged in the fields of pressure measurement instruments. We specializing in developing high precision pressure transmitter, pressure gauges, pressure calibration pump and dead weight tester,level transmitter, flow meter etc., widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
Specialties
pressure transmitter/sensor/transducer, pressure gauge, pressure calibration hand pump, and water level sensor
1, more than 10 years industry background
The original organization is Xi'an Precise Instruments Factory, established in 2007, and mainly produce pressure gauge, stainless steel pressure gauge, anti-vibration pressure gauge, pressure transmitter, pressure switch, pressure calibrator, and so on.
In 2013, Yunyi Group is established for development command, and process measurement instruments about water, flow, temperature are added in our product catalogue.
In 2015, Xi'an Shelok instruments Co., Ltd is estalished with 10 million capita for meeting the international business expanding demand.
2, a company of design and manufacture capability
Mainly focus on design and customized solution offer, and combining our professional industry background and our capability of supply chain management in local market, more comprehensive products and services could be offered.
3, R&D team + cooperation with colleges and universities
Keeping our capability of technology innovation improved makes us available to meet various technical challenges
4, three inspection steps + good warranty service
Strict inspection operation process keeps our products qualified, and clearly warranty policies help customer's solve after-sale problems and lower their cost.
5, sample first policy.
By offering most suitable proposal to help customers maximize their profit.
6, employees with + 4 years international experience are more than 100%
Professional and effective international business operation offers better service expericence
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
