| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | MH-LM |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $135~$295/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |

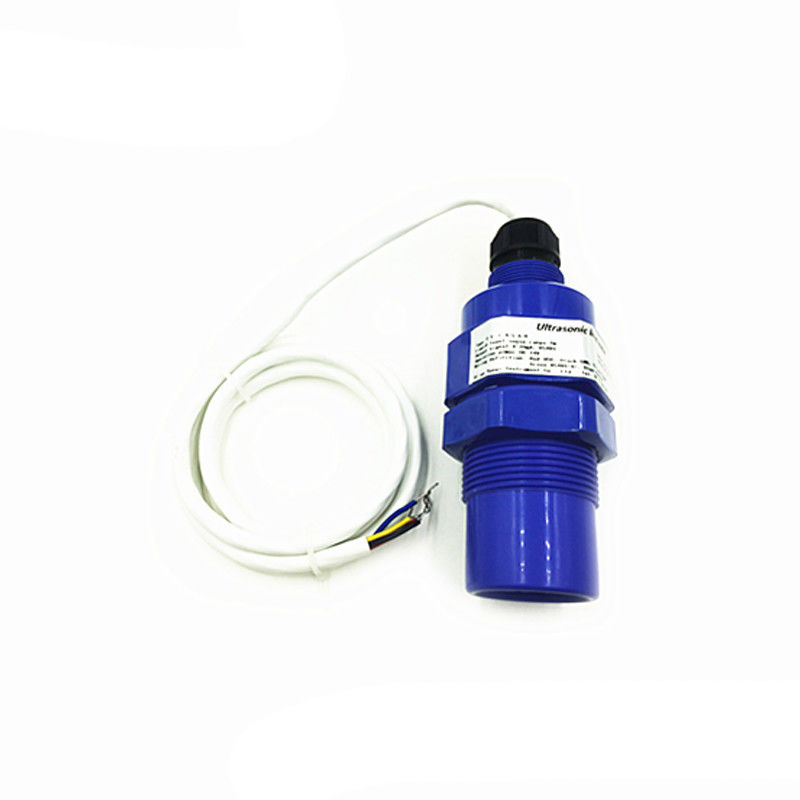

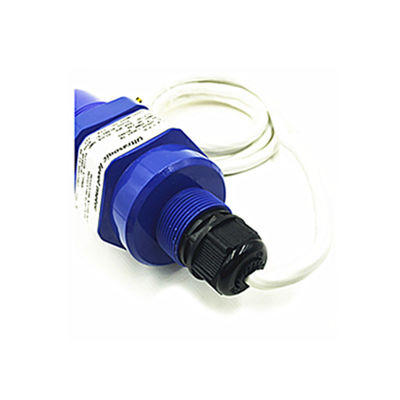

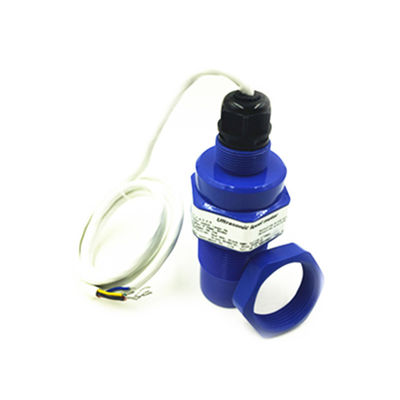

| Product Name: | Fuel Tank Ultrasonic Level Meter | Type: | Submersible Pressure Level Sensor |
|---|---|---|---|
| Output Signal: | 4-20mA,0-5V | Measuring Range: | 0-30m |
| Accuracy: | ±0.3%F.S | Interface: | M20X1.5 |
| Ingress Protection: | IP65 | Power Supply: | 24V DC |
| Frequency: | 20 KHz~2000KHz | Explosion-proof: | EXiaII BT4Gb |
Fuel tank ultrasonic level meter is based on our company for many years the development and manufacture of universal ultrasonic liquid level meter experience. It drawing on variety of advantages at home and abroad. To achieve a full digital, easy to operate the design concept, with good data transmission and man-machine communication functions. Compact structure, reasonable layout. We can also add modules according to customer needs to achieve other functions (such as: Bluetooth, GPRS communications, etc.). At the same time, this product has high reliability, no pollution, stable performance, no need to contact with industrial media to meet most of the liquid level, material level measurement requirements. Completely solve the traditional measurement methods of winding, plug, leakage, medium corrosion, maintenance and other shortcomings. Therefore, the utility model can be widely used in various fields of material level, liquid level measurement and control.
1 Programmable cable interface using the PC software for proximity switch parameter settings
2 Current and voltage outputs
3 Synchronization
4 You can adjust the sensitivity of the acoustic energy and
5 Temperature Compensation
| Range | 2m,5m,8m,10m,12m,15m,20m,25m,30m (option) | Work power | DC12—24V or AC220V |
| Explosion-proof grade | EXiaII BT4Gb | Minimum display resolution | 1mm |
| Blind area | <0.25- 1.5m | Accuracy | ±0.3%F.S |
| Ingress protection | IP65 | Digital output | RS485(support Modbus) |
| Switch output | 2 lines NPN/Relay(AC:5A 250V DC:10A 24V) | Analog signal output | 0~20mA;4~20mA>300Ω;0~5V;0~10V |
| Display | LED,LCD,OLED(option) | Frequency | 20 KHz~2000KHz |
| Interface | M20X1.5 | Material | ABSplastics,Nylon |
1.Water industry (pumping stations, biochemical reaction pool, sedimentation tank etc.)
2.Electric power, mine industy
3.Food industry
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours.
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
