| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | MH-LM |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $135~$295/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |

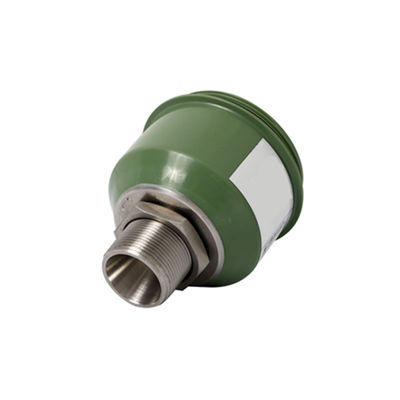

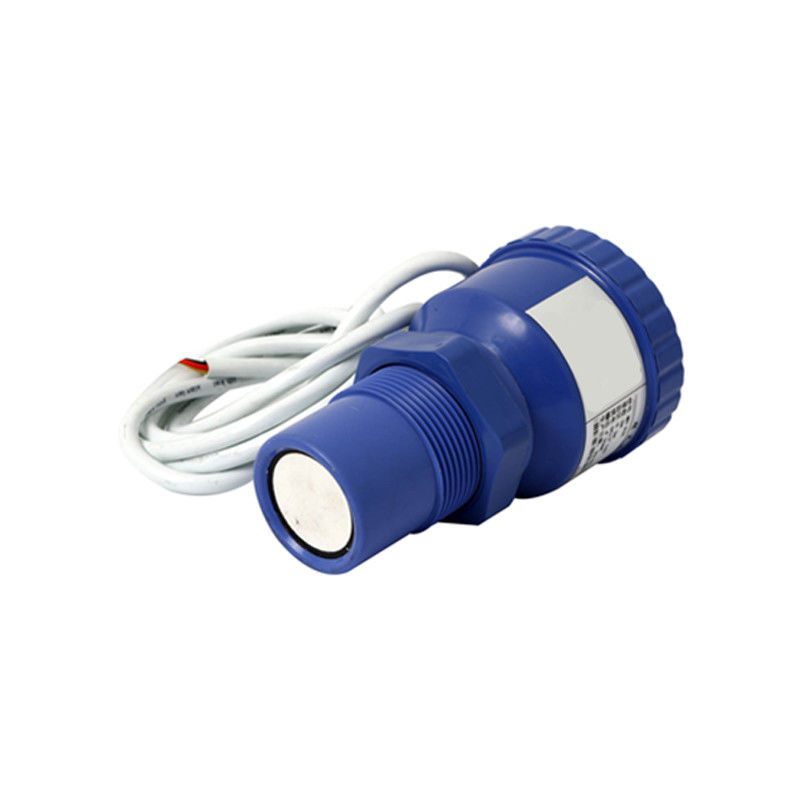

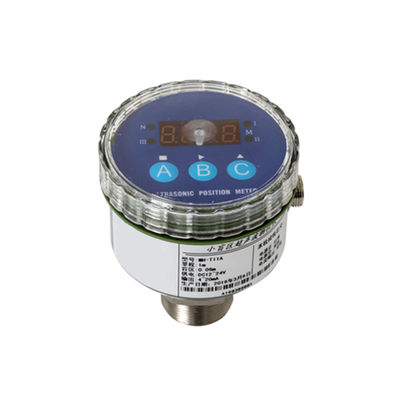

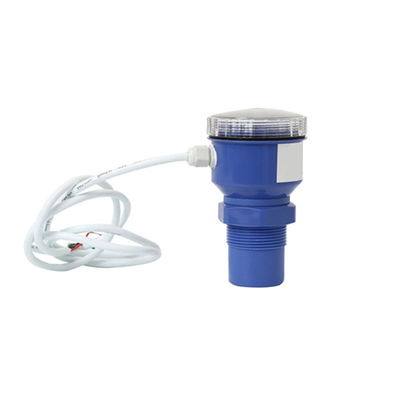

| Product Name: | LED Ultrasonic Pool Water Fuel Level Meter | Range: | 1m,2m(option) |
|---|---|---|---|
| Power Supply: | DC12-24V | Output: | 0~20mA;4~20mA>300Ω;0~5V;1~5V;0~10V;1~10V |
| Case Material: | ABS Plastics | Display: | Four Bit Eight LED Digital Tube ,LCD(option) |
| Protection Grade: | IP65 And EXiaII BT4Gb | Blind Area: | <0.06- 0.15m |
| Maximum Error: | <+/-1MM, <+/-1.5MM(depend On Range) | Frequency: | 40 KHz~430.0KHz |
MH-T series (TI/TII) high precision ultrasonic level instrument for small blind area is developed by our company for small blind area, high precision and small space condition measurement and control.The first ultrasonic distance measurement products with blind area less than 0.06m and accuracy up to + / - 1mm are introduced in China.ABS engineering plastic waterproof shell is adopted for the shell. The probe part is PP or stainless steel.Transparent host cover design for easy observation and display.
The main chip USES imported industrial grade single chip microcomputer, digital temperature compensation, ultra-wide voltage input voltage stabilizer and other dozens of special integrated circuits, so as to make the performance of the product more stable and reliable.It has strong anti-interference capability. It can set up the upper and lower limit node and adjust the online output at will through the upper and lower limit node of the upper computer software.It has high reliability, no pollution, stable performance, no contact with industrial media can meet most liquid level and material level measurement requirements.The problems of winding, clogging, leakage, medium corrosion and maintenance inconvenience caused by traditional measurement methods such as pressure type, capacitance type and float type are solved thoroughly.Therefore, it can be widely used in various fields related to material level and liquid level measurement and control.
The robust and stable sensor is suitable for severe industrial applications
The software has strong anti-interference capability, and can be arbitrarily set up upper and lower limit nodes and online output adjustment
The temperature sensor is built into the transducer to realize the real-time automatic temperature compensation of the measured value
Flow 4~20MA current output, optional field bus interface
The liquid level meter for small blind area of 0.06m was first invented in China
Circulating water and sewage treatment pump room, sump well, biochemical reaction tank, sedimentation tank, etc
It is used for controlling electric power, mine mortar pool, coal slurry pool, butter storage tank, storage yard or partial mobile equipment
Food industry distilleries, grain warehouses, food materials filling tanks, etc
It is compatible with the current control system
Dimension: Φ 74 mm * 92 mm * ((stainless steel);Φ * 117 mm * 74 mm G1 1/2 (ABS)
Installation: M30 * 1.5, g1/2
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
