| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | 322F |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $245~$295/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Consumption: | <3W | Power Supply: | 9-36V DC (Standard 24V DC) |
|---|---|---|---|
| Range: | 3m,5m,8m,10m,12m,15m,20m,25m,30m | Blind Area: | <0.3m-1.5m |
| Accuracy: | ±0.25%F.S | Display: | LCD |
| Resolution: | 1mm | Keyboard: | 16 Key |
| Output(optional): | 4~20mA,0~20mA, 0~1~5V,RS4 | Material: | ABS |
High Accuracy Split Type Level Meter, sensor level water, fuel tank level sensor flexible
Description
322F split ultrasonic material (liquid) position meter, is our product many years of production experience, learn a variety of advantages of similar products, and developed a convenient and applicable split ultrasonic level instrument to solve the poor Environment-one machine circuit prone to failure worries. With accurate measurement, reliable, elegant appearance and so on. The use of large-scale integrated circuits, component chip rate of 90%, to ensure the long-term product reliability. At the same time its power consumption dropped to a very low, easy to use large screen display full Chinese menu, support for SD card data acquisition and serial data download, record 10 points of interference echo.

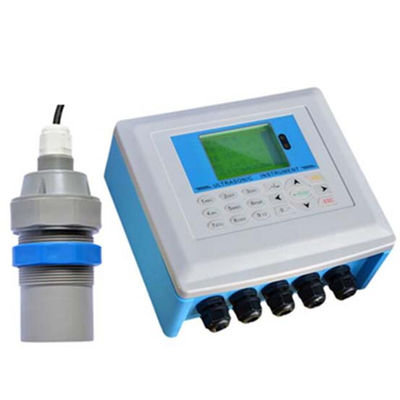

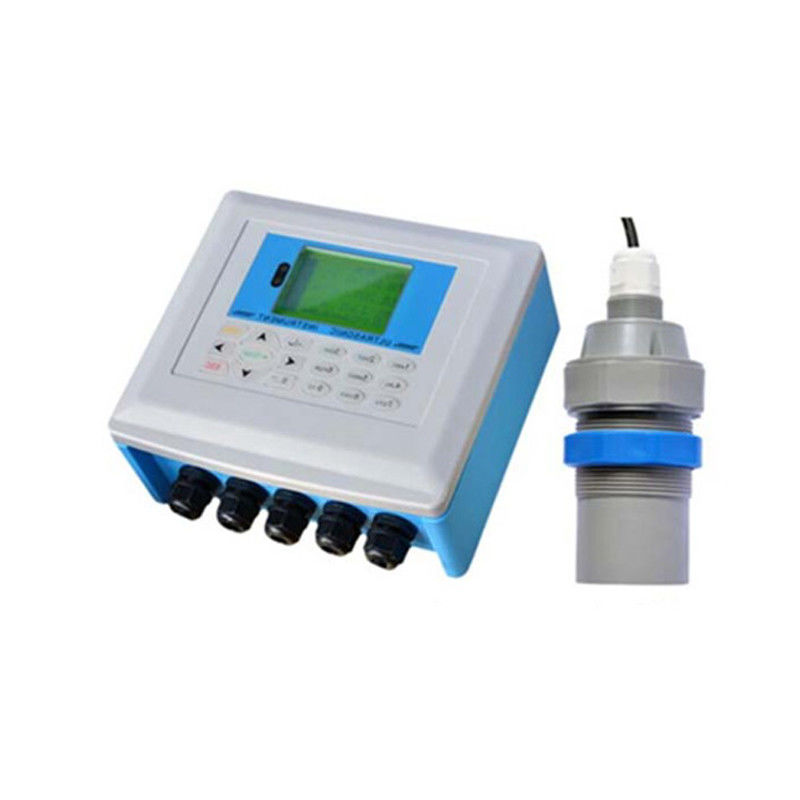

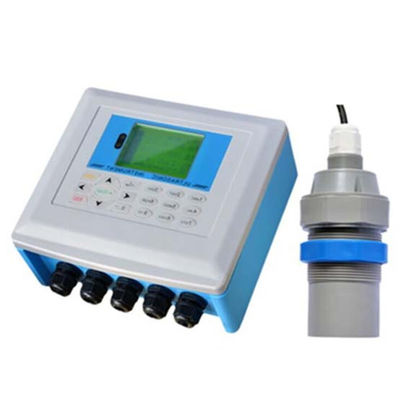

Detailed Images
Specification
| High Accuracy Split Type Level Meter, sensor level water, fuel tank level sensor flexible | |
| Ranging range | 2m, 5m, 8m, 10m, 12m, 15m, 20m, 25m, 30m, 35m, 40m |
| Blind area | 0.3-1.5m (different from the measuring range) |
| Emission angle | less than 12 ° (different from the sensor) |
| Ranging accuracy | ± 0.3% F.S |
| Display | Chinese and English large-screen LCD, color TFT (optional) |
| Minimum display resolution | 1mm |
| Temperature compensation | automatic temperature compensation |
| Operating frequency | 20 KHz ~ 200KHz (due to different models) |
| Site settings | through the machine keys to complete |
| Calibration | factory calibration, field calibration |
| Language | Automatic switching in Chinese and English |
| Output Signal | Output (selected when ordering) |
| Analog signal output | 4 ~ 20mA (standard), 0 ~ 20mA, 0 ~ 5V, 0 ~ 10V Load> 300Ω |
| Digital communications | RS485, HART protocol, GPRS, MiniSD card data acquisition, USB (selected when ordering) |
| Relay Output | 4-channel relay output |
| Relay contact capacity | AC 5A 250V DC 10A 120V |
| Operating voltage | AC220V or DC12-24V |
| Power consumption | <3W |
Physical properties
Host Dimensions: 180mm × 160mm × 76mm, / 256mm × 175mm × 110mm
Host material: ABS plastic / cast aluminum
Sensor cable: 10m shielded cable (can be customized to any length)
Transducer material: ABS plastic, nylon
Sensor Dimensions:
Φ65mm × 119mm × G1 1/2 (2m range)
Φ74mm × 137mm × M60 (5m-15m range)
Φ110mm × 194mm × M30 (20m-40m range)
Sensor installation interface:
G1 1/2 (2m range)
M60 × 2 (5m-15m range)
M30X1.5 or DN80 non-standard flange (20m-40m range)
Environmental performance
Protection class: IP65(host) IP67(sensor) (can be customized to a higher degree of protection)
Explosion-proof rating: EXiaII BT4Gb (selected when ordering)
Working environment: room temperature / atmospheric pressure
Storage humidity: ≤ 80% RH No condensation
Features
1 This product is built-in Bluetooth, GPRS communications, WIFI Internet of Things
2 copies and restore setting parameters
3 measurable level, level, volume, weight and so on
4 can be adjusted analog output
5 with digital filtering and echo recognition
6 can be manually set fixed interference filtering
7 support custom serial data format (selected when ordering)
8 support for custom math functions
9 support custom sound speed (special material measurement)
10 Support MiniSD card data acquisition (selected when ordering)
11 support USB output (selected when ordering)
12 support mini printer (selected when ordering)
Applications
1. water and sewage pump room, water collection wells, biochemical reaction tank, sedimentation tank and so on
2. electric power, mining mortar pool, coal slurry pond, butter storage, stockyard or part of the mobile device control
3. food industry wineries, granaries, food storage tanks and others
4. supporting the use of control system
