| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | 322D |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $125~$195/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Level Range: | 3~20m | Blined: | 0.25~0.8m |
|---|---|---|---|
| Accuracy(In Air): | 0.2% (full Scale) | Warranty: | 12 Months |
| Display Resolution: | 0.01m | Current Output: | 4~20mA |
| Output Resolution: | 0.03% Of The Actual Range | Temperature Range: | -40°~70 Degrees Celsius |
| Pressure Range: | 0.04Mp Special General 0.5Mpa | Product Type: | Non-Contact Type |
Ultrasonic Level Meter, Water Level Sensor Probe, Water Level Sensor
Description
Ultrasonic level measuring instrument, taking the advantages of various many level measuring instruments, is a universal one characterized by total digitalized and humanized design. It has perfect level monitoring, data transmission and man-machine communication.
It is featured by strong anti-interference performance; free setting of upper and lower limits and online output regulation, on-site indication, optional analog, switching value, and RS485 output and easy connection with main unit. The cover, made of waterproof engineering plastics, is small and firm with ABS probe. Therefore, it is applicable for various fields concerning level measuring and monitoring. According to the practical situation, it also can add other modules, such as RS 485, current output; it can be match with PLC better.

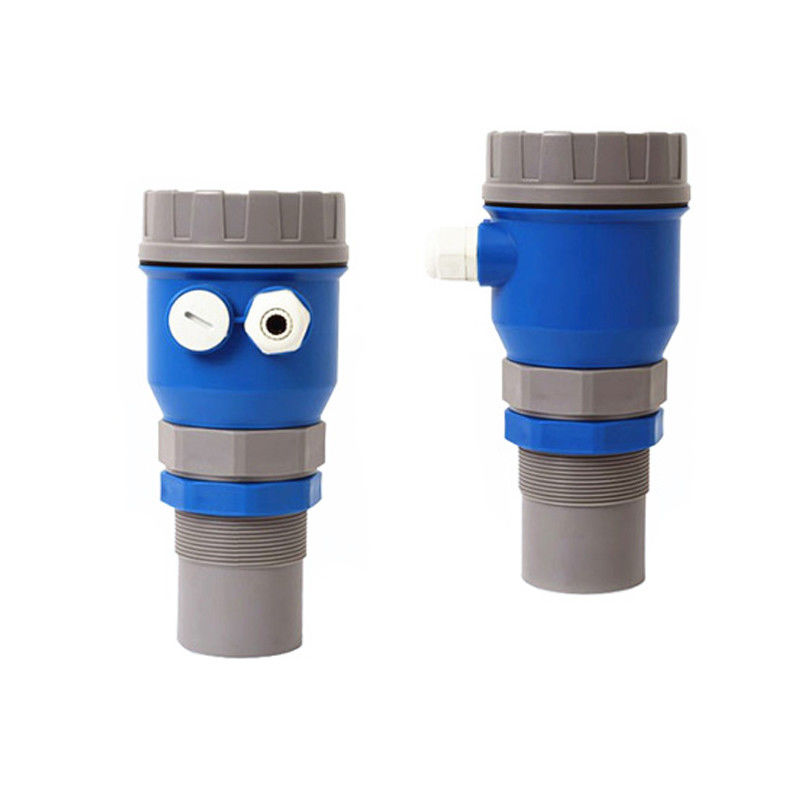

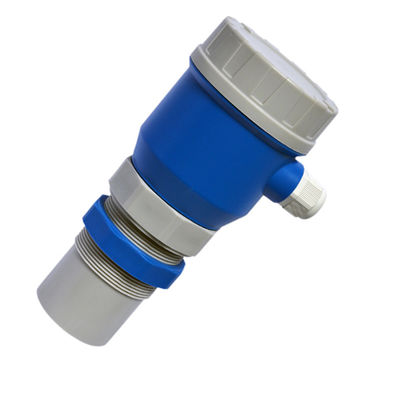

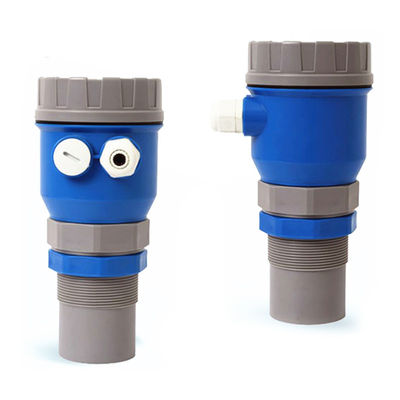

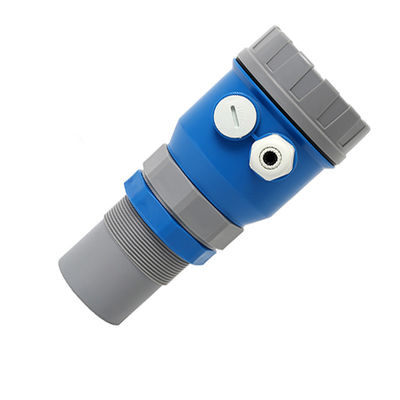

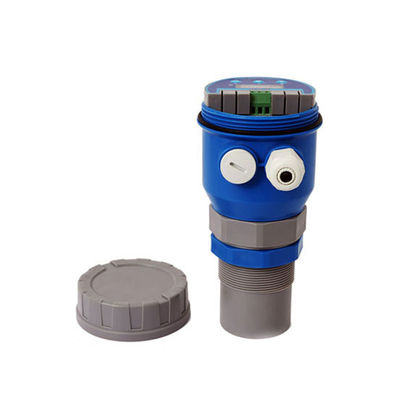

Detailed Images
Specification
| Ultrasonic Level Meter, Water Level Sensor Probe, Water Level Sensor | |
| Range | 3,8,10,12,15 20m |
| Blind zone | <0.4-0.5m(different for range) |
| Measure error | 0.25%F.S |
| Display | LED or LCD |
| Display resolution | 1mm |
| Frequency | 20~350KHz |
| Power | 12-24VDC |
| Power consumption | <1.5W |
| Output (optional) | 4~20mARL>600Ω(standard)1~5V1~10VRS485 3 NPN 2 relays (AC: 5A250V DC: 10A24V) |
| Material | ABS |
| Dimension | Φ92mm×198mm×M60 |
| Electrical interface | M20X1.5 |
| Installation | M60X2 or 61MM |
| Operating surroundings | normal temperature, normal pressure |
| Protection degree | IP65(others optional) |
Features
DC12-24V wide work voltage
Backup and recovery parameter set
Free adjustment of the range of analog output
Set a filter value to remove
Custom serial port data format
Optional increment/difference distance measurement to measure air space or liquid level
1-15 transmitted pulse intensity depending on working conditions
More choices depend on your requirement, as bellowing:
3 NPN output
2 relay output
Voltage output
RS485output connect with PC
Explosion-proof
Applications
Widely used in petroleum, chemical, water treatment, water conservancy, steel, coal, electricity, aerospace and food processing industries such as Diesel Oil Tank ,water tank and so on., for acid, alkali, salt, corrosion, high temperature, explosion-proof and other fields.
