| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | 322DE |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $125~$195/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Accuracy: | 0.25%-0.5%F.S | Blind Zone: | 0.2-0.6m |
|---|---|---|---|
| Working Pressure: | 2 Bar (Explore Proof Type Is 5 Bar) | Resolution: | 3mm Or 0.1%F.S (Max Of Them) |
| Medium: | Water, Oil, Or Other. | Output Signal: | 4-20mA,or Other |
| Type: | Explore Proof Type | Product Name: | Cheap Ultrasonic Distance Sensor Wireless Ultrasonic Level Sensor |

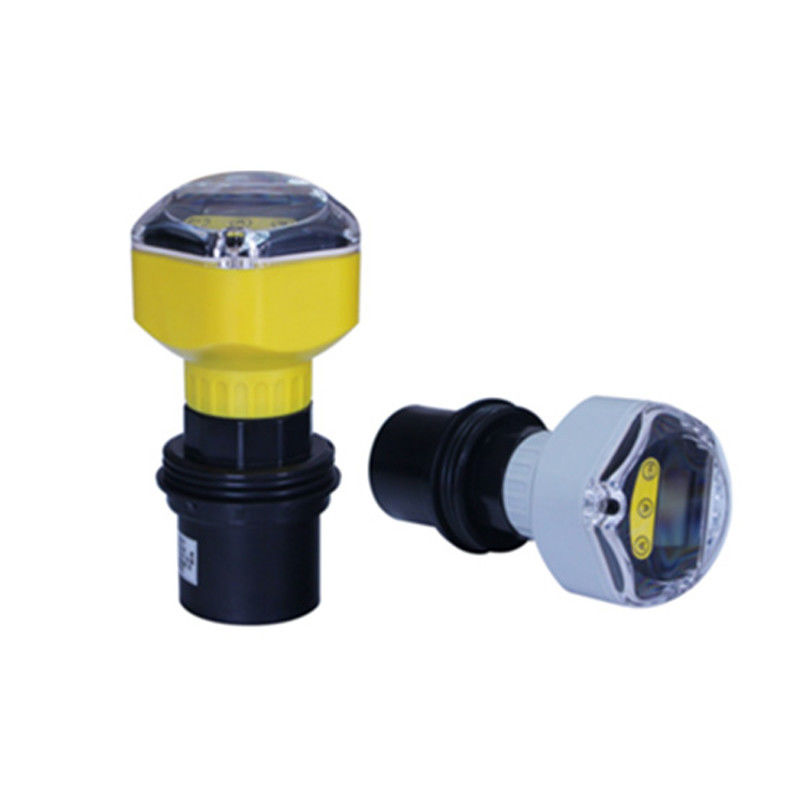

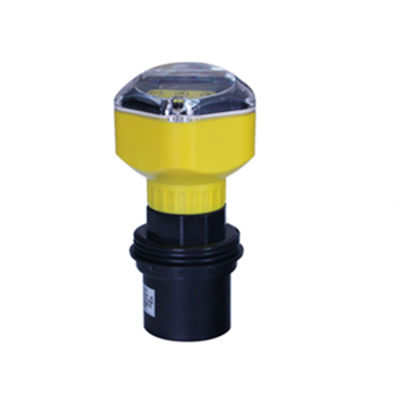

Cheap Ultrasonic Distance Sensor wireless ultrasonic level transmitter
Description
ultrasonic level transmitter is instrument of measured material level, which is non-contact, high reliability, cost-effective, easy to install and maintain.
Detailed Images
Specification
| Cheap Ultrasonic Distance Sensor wireless ultrasonic level transmitter | ||
| Functions | Integrative Type | Segregated Type |
| Level Range |
Economic Type: 5m, 10m, 12m. Standard Type: 5m, 10m, 15m, 20m,30m, 50m. |
5m, 10m, 15m, 20m, 30m, 50m, 70m. |
| Accuracy | 0.25%-0.5%F.S | 0.25%-0.5%F.S |
| Blind Zone | 0.2-0.6m | 0.2-0.6m |
| Working Pressure | 2 Bar (Explore Proof Type is 5 Bar) | 2 Bar (Explore Proof Type is 5 Bar) |
| Resolution | 3mm or 0.1%F.S (Max of them) | 3mm or 0.1%F.S (Max of them) |
| Display | English language display:Level measurement, distance measurement, transmission value, ambient temperature, echo state, alarm display, algorithm selection. | English language display:Level measurement, distance measurement, transmission value, ambient temperature, echo state, alarm display, algorithm selection. |
| Analog Output |
4~20mA/750Ω load resistance (2 wire) 4~20mA/250Ω load resistance (4 wire) |
4~20mA/750Ω load resistance NA |
| Relay /Alarm Output |
AC 250V/ 8A; DC 30V/ 5A; State programmable (optional for 4 wire) |
AC 250V/ 8A; DC 30V/ 5A; State programmable (optional) |
| Power Supply |
24VDC 120mA 12VDC (available to offer power by motor, battery or solar power and so on.) |
220VAC+15% 50Hz 24VDC 120mA 12VDC (available to offer power by motor, battery or solar power and so on.) |
| Environment Temperature |
Meter: -20~+60°C Sensor: -20~+80°C |
Meter: -20~+60°C Sensor: -20~+80°C |
| Communication | RS485 Communications (optional) | RS485 Communications (optional) |
| Explore Proof | Ex(ia)ⅡCT6 | Ex(ia)ⅡCT6 |
| Water Proof |
Economic Type: IP65 Standard Type: IP66 |
Meter: IP65 Sensor: IP68 |
| Cable of Sensor | Null | Standard: 10 Meters, Max to 200 Meters |
| Sensor Installation | By level range and model code | By level range and model code |
| Store Request |
Temperature: -20~+80°C Pressure: atmospheric pressure Humidity: ≤90%RH Others:Non-corrosive gases (optional corrosion probe) or steam, no vibration. |
Temperature: -20~+80°C Pressure: atmospheric pressure Humidity: ≤90%RH Others:Non-corrosive gases (optional corrosion probe) or steam, no vibration. |
Ordering Guide
Medium: Water, oil, or other.
Working temperature: -20°C~80°C or other
Pressure range: 5m 10m by order
Output signal: 4-20mA,or other
Related products High Frequency Radar Material Level Meters
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Company Information
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
Packing & Shipping
