| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | MH-R |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $135~$295/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Range: | 2m-30m (optional) | Accuracy: | ±0.3%F.S |
|---|---|---|---|
| Power Supply: | 24-32V DC | Output: | 0~20mA ((0~1KΩ) |
| Case Material: | ABSplastics,Nylon | Display: | LCD(option) |
| Protection Grade: | IP65 And EXiaII BT4Gb | Interface: | M20X1.5 |
| Blind Area: | <0.25- 1.5m | Minimum Display Resolution: | 1mm |

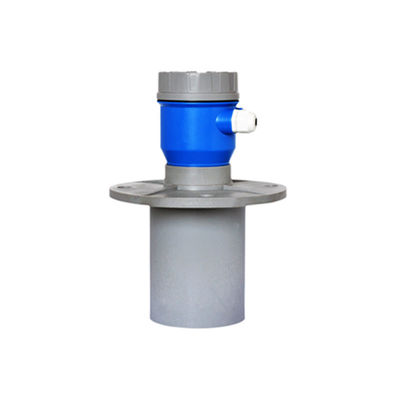

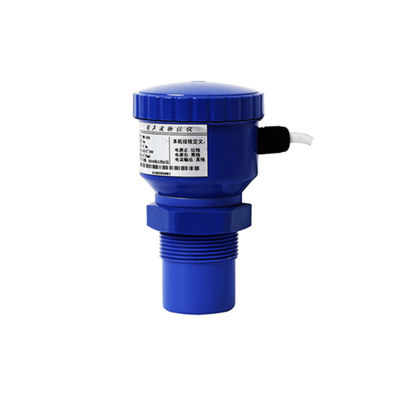

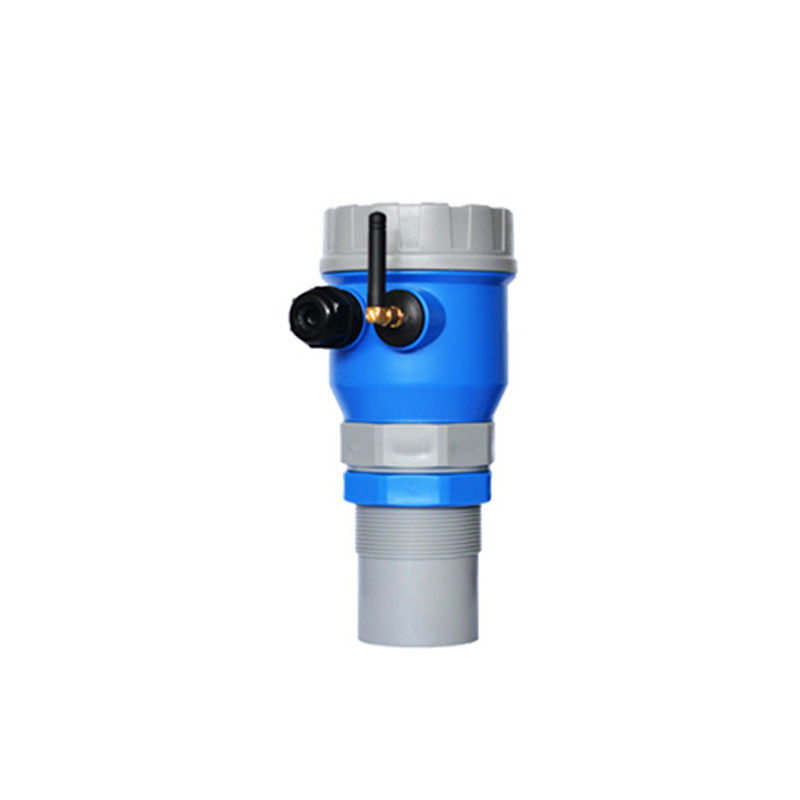

2021 most popular radar type meter level sensor
Description
MH-R (2021) two-wire ultrasonic instrument is our company learned a variety of similar products at home and abroad and the advantages of the development, the use of the latest energy-saving components, the machine operating current is less than 3.5mA, Reliable operation in the 9-32V DC power supply voltage. Comes with LCD display, easy to set the scene. It does not have to contact the industrial medium can meet most of the level measurement requirements, the traditional measurement methods inconvenience. So it can be widely used in material level, liquid level measurement and control related to various fields. The upgraded version joins the HART protocol communication support, which compensates the shortcomings of the two-wire instrument without data output and can communicate directly with the HART field instrument.
Detailed Images
Specification
| 2021 most popular radar type meter level | |
| Range | 2-30m(optional) |
| Minimum display resolution | 1mm |
| Accuracy | ±0.3%F.S |
| Analog signal output | LCD(option) |
| Sensor Material | ABS plastics,Nylon |
| Protection grade | IP65 and EXiaII BT4Gb |
| Blind area | <0.25- 1.5m |
| Frequency | 20 KHz~2000KHz |
| Display | LCD(option) |
| Work power | 24—32V DC |
| Interface | M20X1.5 |
Features
1, Adjust analog signal output
2,Backup and restore settings.
3,Suitable for harsh environment
4, Digital filtering and echo recognition
Applications
1,Water industry (pumping stations, biochemical reaction pool, sedimentation tank etc.)
2,Electric power, mine industy
3,Food industry
Drawing
