| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | MH-R |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $135~$195/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |

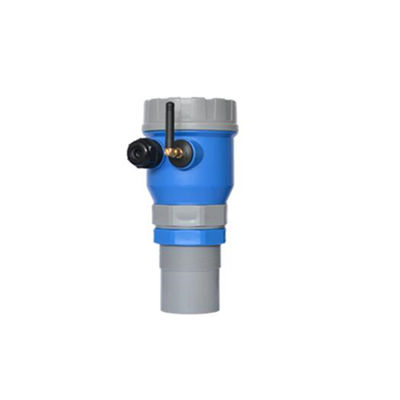

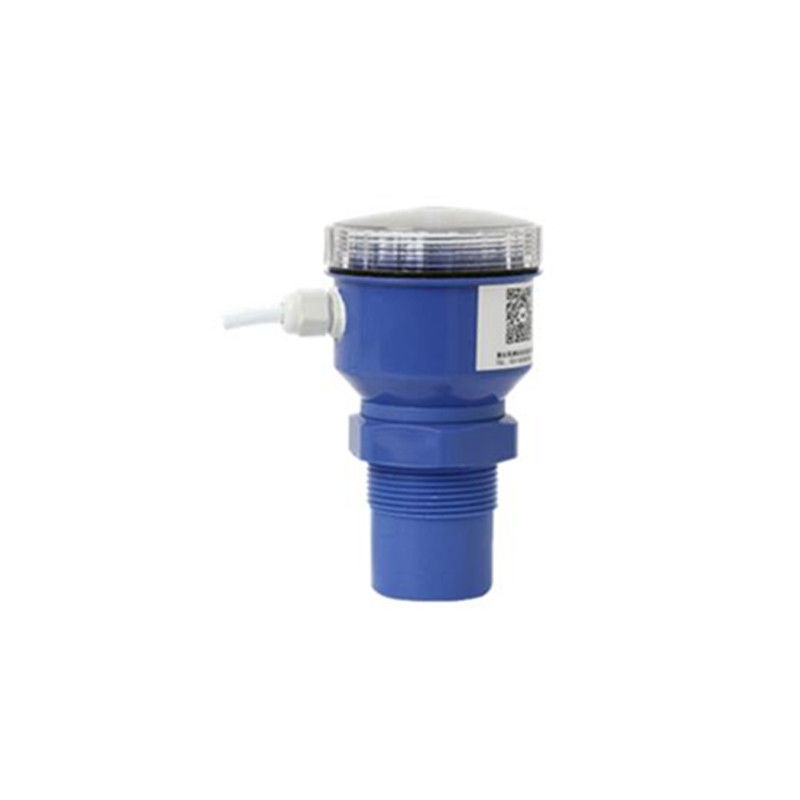

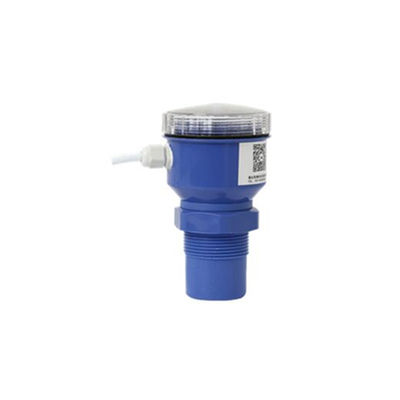

| Product Name: | Ultrasonic Water Tank Level Meter Sensor | Range: | 2~30m |
|---|---|---|---|
| Accuracy: | Plus Or Minus 0.3% F.S | Working Frequency: | 20 KHz ~ 2000KHz |
| Output Signal: | 4 ~ 20 Ma Load Impedance Wide (0 ~ 1 K Ω) | Working Voltage: | 24-32v DC |
| Power Consumption: | < 0.8 W | Shell Material: | ABS Engineering Plastic, Nylon |
| Electrical Interface: | M20x1.5 | Protection Level: | IP65 |
MH - R two wire ultrasonic liquid (content) level meter is made of the latest energy-saving components, so the working current is less than 3.5 mA.The level meter can work reliably in 9-32 VDC power supply voltage and is with LCD display for easily setting up on site.It doesn't have to contact industrial media can meet the requirements of most of the material level measurement, so as to thoroughly solve the pressure type, capacitance type, float type of traditional measurement methods such as winding, jam, leaking, corrosion medium, safeguard the disadvantages such as inconvenience.Therefore, it can be widely used in various fields related to material level and liquid level measurement and control.
HART protocol communication support is added in the upgrade version, which makes up for the defects of the output of the two line instruments with no data, and can communicate with HART field instruments directly.
Matlab can adjust the analog output at will
Matlab backup and restore setup parameters
Matlab has the function of digital filtering and echo recognition
Flow 4~20MA current output, with HART protocol;
The robust and stable sensor is suitable for severe industrial situations.
The temperature sensor is built into the transducer to realize the real-time automatic temperature compensation of the measured value.
Circulating water and sewage treatment pump room, sump well, biochemical reaction tank, sedimentation tank, etc
It is used for controlling electric power, mine mortar pool, coal slurry pool, butter storage tank, storage yard or partial mobile equipment
Food industry distilleries, grain warehouses, food materials filling tanks, etc
Dimension:
Φ74 mm * 132 mm * G 1 1/2 pipe thread (2 m span)
92 mm * 198 mm * Φ M60 (5 m to 15 m span)
92 mm * 270 mm * Φ DN80 non-standard flange (20 m to 30 m span)
Installation interface:
G1 1/2 pipe thread or 47 mm round hole with large gongs ring (2 m span)
M60 x 2 or 61 mm round hole with gong ring (5 m to 15 m span)
DN80 non-standard flange (20m-30m measuring range)
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours.
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
