| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | NU175F30TR |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $35~$195/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Measuring Range: | 100~2000mm | Frequency: | 175KHz |
|---|---|---|---|
| Angle: | 15° | Output Signal: | 4~20ma,,0~10V |
| Blind Area: | 100mm | Repeat Accuracy: | 0.3% |
| Power Supply: | 10~30VDC,15~30VDC | Temperature Drift: | 0.05%/°C |
| Linearity: | <1% | Respond Time: | 195m |

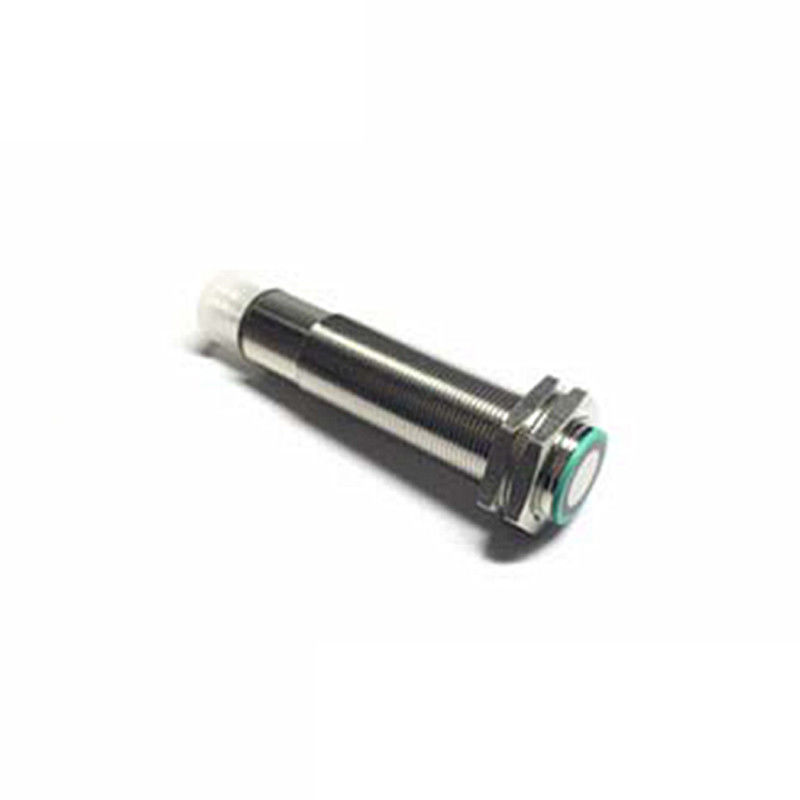

Water fuel diesel oil acid tank ultrasonic level sensor
Description
The ultrasonic level sensors are mainly used in level measuring,distance detection, anti-theft alarm, intelligent toys, automatic control and other fields.With a variety of output mode, according to customer demand for customized products.
Features
Waterproof and dustproof
High sensitivity and precision
Good durability in temperature and humidity
Stable performance
Cost-Effective
Specification
| Model | NU175F30TR-I-2000 | NU175F30TR-U1 |
| Signal output | 4~20ma | 0~10V |
| Power supply | 10~30VDC | 15~30VDC |
| Measuring range | 100~2000mm | |
| Blind area | 100mm | |
| Standard test plate | 300x300mm | |
| Angel | 15 | |
| Repeat accuracy | 0.3% | |
| Temperature drift | 0.05%/ºC(built-in temperature compensation) | |
| Linearity | <1% | |
| Resolution | 0.1%(0.5mm min.)of full range | |
| Respond time | 195m | |
| Synchronization function | no | |
| Power consumption | 20 ma | |
| Load current output | < 500 Ω voltage output: > 5 k Ω | |
| Protection circuit | anti-reverse protection, instantaneous overvoltage protection | |
| Sensor frequency | 175KHz | |
| Working temperature | - 20 ° C ~ + 60 ° C | |
| Storage temperature | -40 ° C to + 70 ° C | |
| Shell material | stainless steel | |
| weight | 165 g | |
| Cable length | 2m | |
Detailed Images
Applications
Measurement of liquid level and oil level
Measuring diameter and coil diameter
Material height control
