| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | MH-F |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD245.00~$395/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Range: | 2m,5m,8m,10m,12m,15m,20m,25m,30m (option) | Blind Area: | 0.3~ 1.5m |
|---|---|---|---|
| Minimum Display Resolution: | 1mm | Output Signal: | 4~20mA,0~20mA,0~5V, 0~10V>300Ω |
| Accuracy: | ±0.3%F.S | Display: | Chinese And English Bilingual LCD, Colourful TFT(option) |
| Signal Output: | 4~20mA,0~20mA,0~5V, 0~10V>300Ω | Case Material: | ABS Plastics,Nylon |
| Protection Grade: | IP65 And EXiaII BT4Gb |
Description:

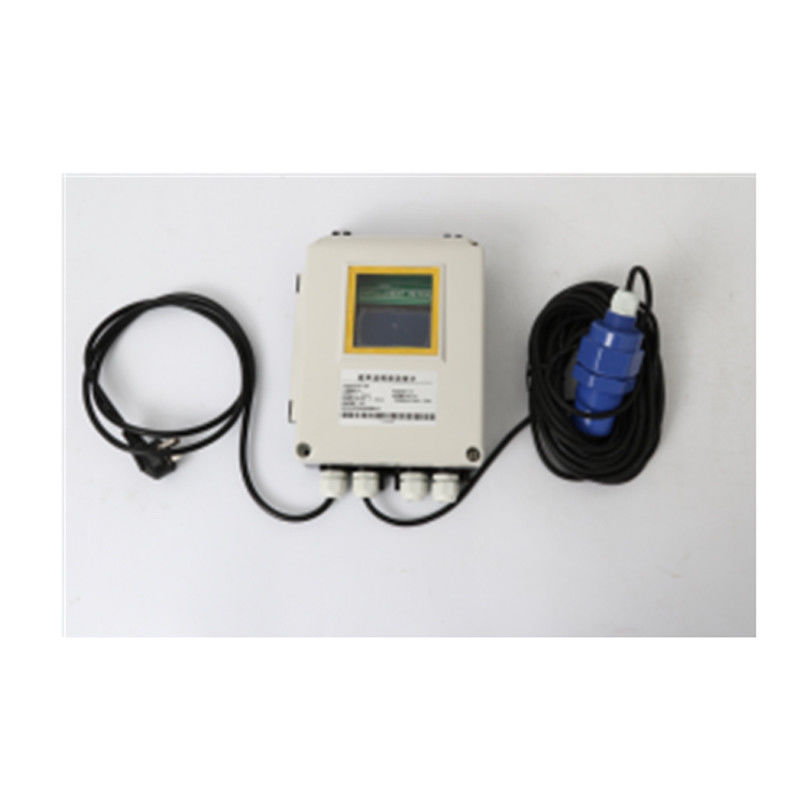

MH-F / FP split ultrasonic level meter produced with our many years experience of level meter production . drawing on a variety of similar products advantages, and the development of a convenient and applicable split ultrasonic level meter, Environmental machine circuit is prone to trouble to worry about. With accurate measurement, reliable work, the appearance of generous and so on. Using large-scale integrated circuits, component chip rate of 90%, to ensure the long-term reliability of the product. While reducing its power consumption to a very low, the use of large-screen display full Chinese menu easy to use, support SD card data acquisition and serial data download, can record ten interference echo points.
Feature:
1, Built-in GPRS, Wifi.
2,Backup and restore settings.
3,Can measure the object position, level, volume and weight etc.
4, Can adjust the analog output
5, Digital filtering and echo recognition
6,Support blue-tooth ,GPRS,Mini SD card ,USB ,Mini printer (option)
Application:
1,Water industry (pumping stations, biochemical reaction pool, sedimentation tank etc.)
2,Electric power, mine industy
3,Food industry
Parameters:
Range:2m,5m,8m,10m,12m,15m,20m,25m,30m (option)
Blind area:0.3~ 1.5m
Minimum display resolution:1mm
Frequency :20 KHz~200KHz
Accuracy:±0.3%F.S
Display:Chinese and English bilingual LCD, colourful TFT(option)
Signal output:4~20mA,0~20mA,0~5V, 0~10V>300Ω
Work power:AC220Vor DC12-24V
Product Size:240mm×184mm×110mm /256mm×175mm×110mm
Case Material:ABS plastics,Nylon
Sensor material: 10m shielded cable(option the length )
Interface:G1 1/2, M60×2 ,M30X1.5 or DN80 non-stander flage(Range 20m-30m)
Protection grade:IP65 and EXiaII BT4Gb
Ordering note:
1.Media must compatible with wetted part.
2.To ensure the products can working reliable, we suggest that customer install lightning protection device and make sure products & power are earthed.
3.Special requirement ,such as strong shock, moment vibration, strong electromagnetism, radio frequency interference ,please consult us.
Q: I would like to know if you have a partner for export?
A: Yes,We have the right to export and can sell product all over the world.
Q: Can I get some samples?
A: Yes,Sample order is available for quality check and market test.But you have to pay the express cost.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q: Do you have the products in stock?
A: Depends on your request.We have standard models in stock.Some special products and big order will be newly produced according to your order.
Q: Can I mix different power in one container?
A: Yes,Different models can be mixed up in one container,even one order.
Q: How does your factory do the quality control?
A: Quality is priority,we always attach importance to quality control from the beginning to the end of the production.Every product will be fully assembled and carefully tested before packing and shipping.
Q: What's your payment terms?
A: We usually accept all kinds of payment terms.Such as T/T,L/C,Western Can Union Cash.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
