| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | L200 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD35.00~$95/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Pressure Type: | Gauge Pressure | Range: | 0-5-10-20-50-100-200m |
|---|---|---|---|
| Output: | 0~10VDC (three Wire) | Supply: | 24V Dc(15~30VDC) |
| Accuracy: | ±0.25%FS,±0. 5%FS | Insulation Resistance: | ≥1000 MΩ/100VDC |
| Temperature Of Medium: | -20~85°C | Seal Grade: | IP68 |
| Over Load: | 150%FS | Response Time: | ≤5mS |

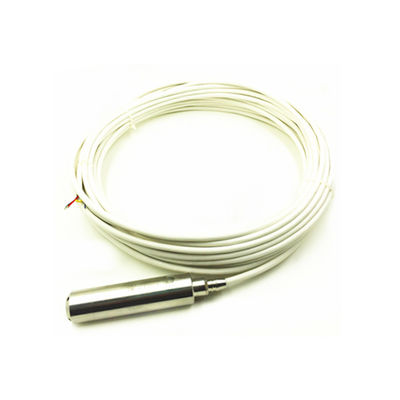

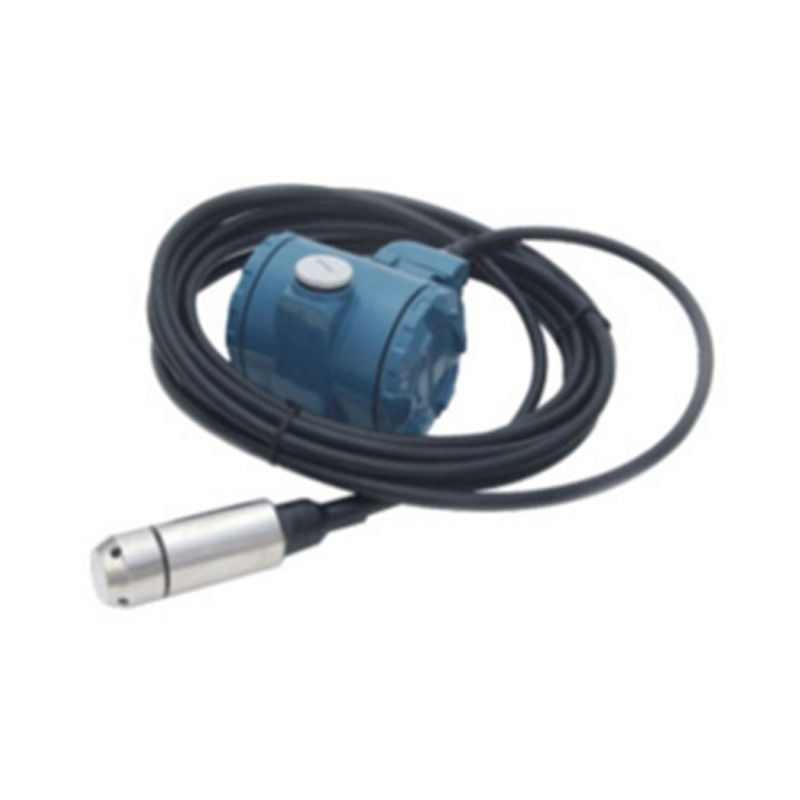

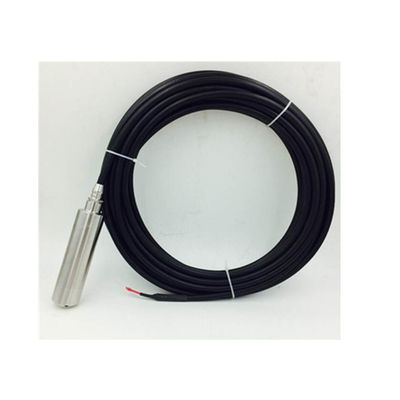

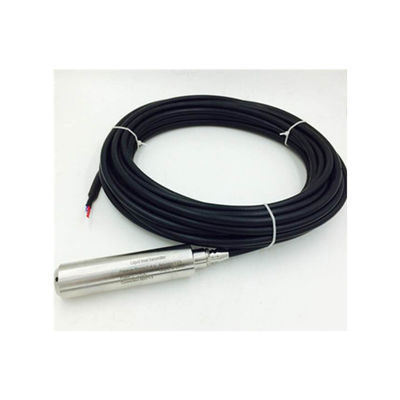

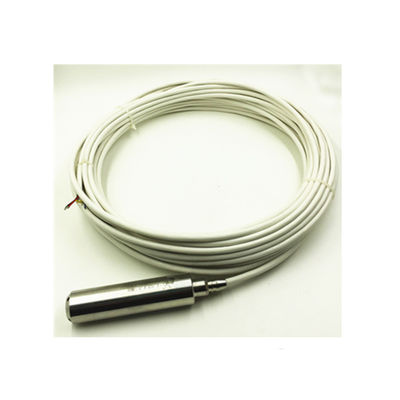

Low cost Magnetostrictive Water Level Sensor With High Temperature Resistance
Description:Magnetostrictive Water Level Sensor With High Temperature Resistance
Input level transmitter adopt high performance diffused silicon piezoresistive pressure sensor as measuring element, after the high reliability of amplification circuit and precise temperature compensation, convert the gauge pressure or absolute pressure of the measured medium into standard voltage or current signals.
Features::Magnetostrictive Water Level Sensor With High Temperature Resistance
- Strong stability, high sensitivity, long-term stability
- Strong reliability, no mechanical rotating parts, no mechanical wear, no mechanical failure
- Strong anti-interference ability, waterproof, dust-proof, anti-corrosion, anti-acid
- Wide application, with a variety of structural forms, a variety of installation methods, a variety of structural materials, suitable for various industrial field liquid level measurement
- Easy to install, a variety of installation methods.
Application: Magnetostrictive Water Level Sensor With High Temperature Resistance
A. The water level of the water tank, oil level in oil tank, liquid level measurement of water sink(oil sink);
B,The water level measurement of wells, water towers, river, reservoir
C,Sewage treatment equipment, sea water, groundwater monitoring
Parameters: Magnetostrictive Water Level Sensor With High Temperature Resistance
Pressure type: Gauge pressure
Range: 0-5-10-20-50-100-200m
Output: 0~10VDC (three wire)
Accuracy: ±0.25%FS,±0. 5%FS
Supply: 24V Dc(15~30VDC)
Insulation resistance: ≥1000 MΩ/100VDC
Load resistance: Current output type: max 800Ω/ Voltage output type: more than 50KΩ
Temperature of medium: -20~85°C
Ambient Temperature: -20~85°C
Relative humidity: 0~95% RH
Seal Grade: IP68
Over Load: 150%FS
Response time: ≤5mS
Stability: ≤±0.15%FS/ year
Vibration Fluence: ≤±0.15%FS/year(Mechanical vibration frequency 20Hz~1000Hz)
Electrical connection:Full sealed 5 core gas shielded cable
Connection thread: Input type
Material of connection thread: SS304
