| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | RD809 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD345.00~$695/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |

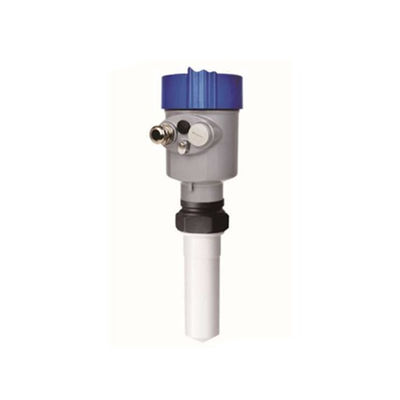

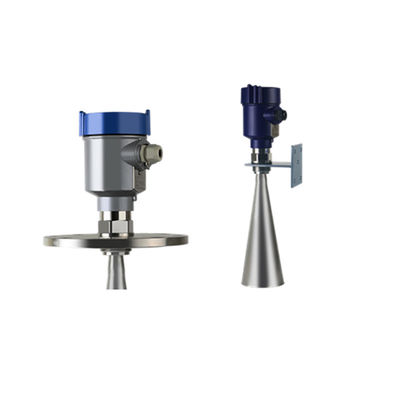

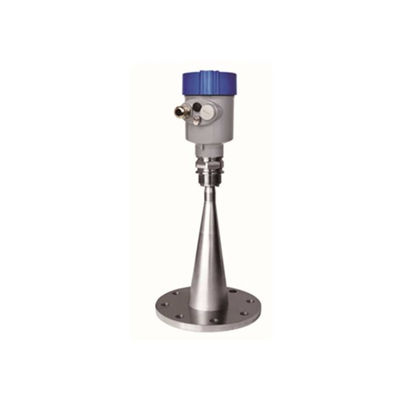

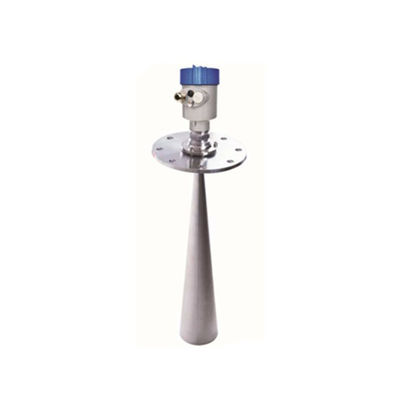

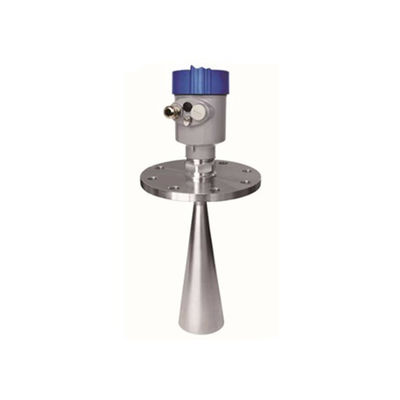

| Item: | 6.8GHz Radar Level Transmitter Radar Level Calibration | Application: | Crude Oil, Light Oil Storage Tanks |
|---|---|---|---|
| Accuracy: | ± 10mm | Power Supply: | 2-wire (DC24V), 4-wire (DC24V/AC220V) |
| Output: | 4-20ma/Hart | Process Pressure: | (-0.1~4.0)MPa |
| Frequency: | 6.8GHz | Antenna: | Horn Antenna |
| Repeatability: | ±2mm | Protection Grade: | IP67 |
The radar level meter emits a very narrow microwave pulse, which travels in the space at the speed of light, encounters the surface of the measured medium, and some of its energy is reflected back and received by the same antenna. The time interval between the transmitted pulse and the received pulse is proportional to the distance from the antenna to the surface of the measured medium. Since the propagation speed of the electromagnetic wave is extremely high, it is difficult to confirm that the time interval between the emission pulse and the reception pulse is small (nanoseconds).
The SLK-8XX series radar level meter uses a special correlation demodulation technique to accurately identify the time interval between the transmitted pulse and the received pulse, thus further calculates the distance from the antenna to the surface of the measured medium.
