| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | RD809 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD345.00~$695/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Hot Sale Diesel Microwave Radar Level Sensor | Application: | All Kinds Of Corrosive Liquid |
|---|---|---|---|
| Measuring Range: | 10 Meters | Process Connection: | Thread, Flange |
| Medium Temperature: | -40℃ ~ +120℃ | Process Pressure: | -0.1 ~ 0.3 Mpa |
| Accuracy: | ±5mm | Protection Grade: | IP67 |
| Frequency Range: | 26GHz | Signal Output: | 4~20mA/Hart (Two-wire/Four) RS485/Modbus |

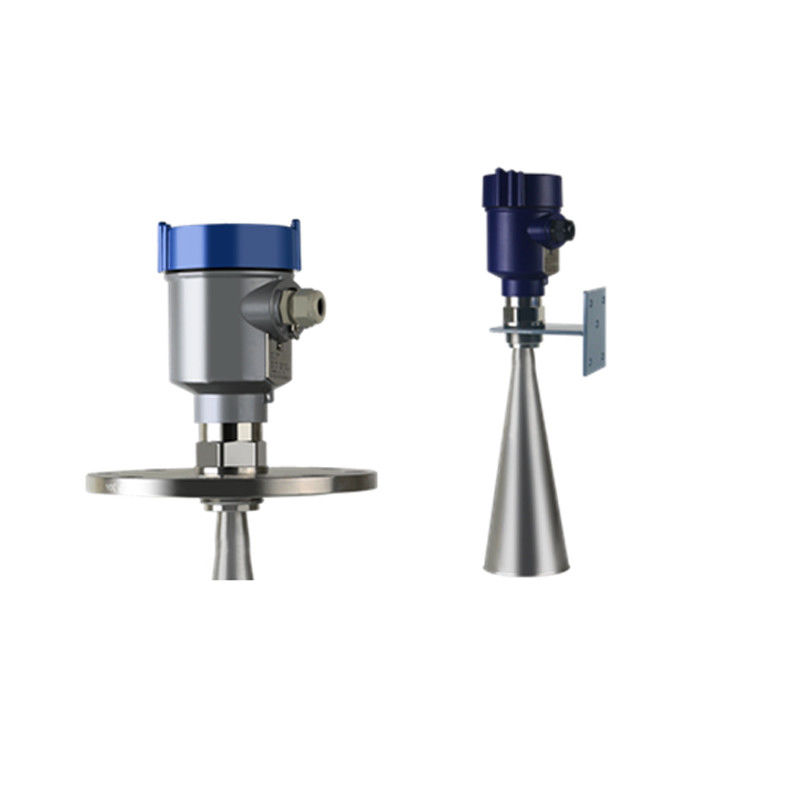

Hot sale diesel microwave radar level sensor
Description
This series of radar level meter adopted 26G high frequency radar sensor, the maximum measurement range can reach up to 70 meters. Antenna is optimized further processing,
the new fast microprocessors have higher speed and efficiency can be done signal analysis, the instrumentation can be used for reactor, solid silo and very complex measurement environment.
Detailed Images
Specification
| Model | Meaning | Working condition |

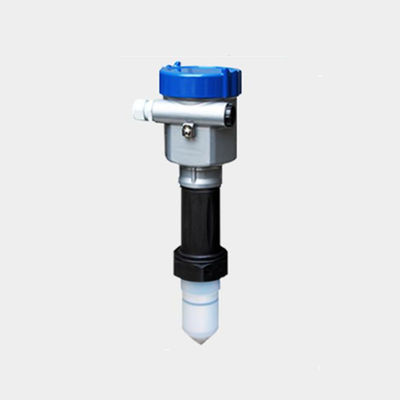

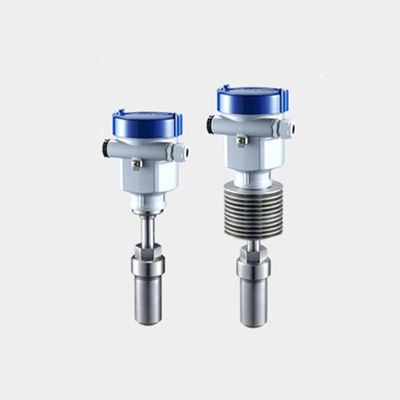

| RD809 | Rod antenna | Corrosive medium |

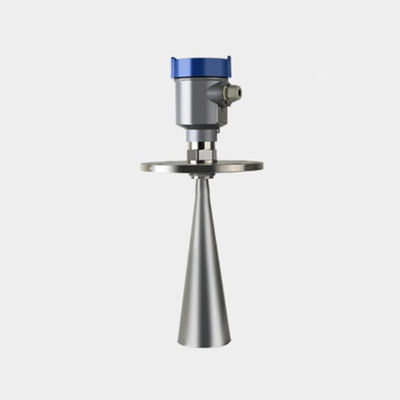

| RD809 | Horn antenna | High temperature, high pressure, and slightly corrosive liquid |
| RD809 | Universal horn antenna | Strong dust, easy to crystallize and easy to condense condition |
| RD809 | Parabolic antenna | Strong dust, easy to crystallize and easy to condense condition |

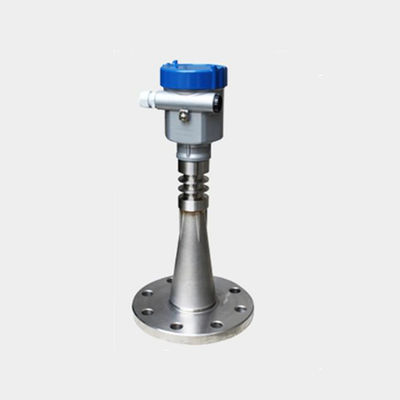

| R809 | Under Flanged horn antenna | Hygienic liquid storage container, strong corrosive container |
Principle
Radar level transmitter antenna microwave pulse is narrow, the downward transmission antenna. Microwave exposure to the medium surface is reflected back again by the antenna system receives, sends the signal to the electronic circuit automatically converted into level signals (because the microwave propagation speed, electromagnetic wave to reach the target and the reflected back to the receiver this time is almost instantaneous).
Datum measurement: Screw thread bottom or the sealing surface of the flange.
Note: Make sure the radar level meter the highest level cannot enter the measuring blind
area (Figure D shown below).
Features
Ø Small antenna size, easy to install; Non-contact radar, no wear, no pollution.
Ø Almost no corrosion, bubble effect; almost not affected by water vapor in the atmosphere, the temperature and pressure changes.
Ø Serious dust environment on the high level meter work has little effect.
Ø A shorter wavelength, the reflection of solid surface inclination is better.
Ø Beam angle is small, the energy is concentrated, can enhance the ability of echo and to avoid interference.
Ø The measuring range is smaller, for a measurement will yield good results.
Ø High signal-to-noise ratio, the level fluctuation state can obtain better performance.
Ø High frequency, measurement of solid and low dielectric constant of the best choice.
The Electrical Connection
The power supply voltage:
(4~20)mA/HART (Two wire system)
The power supply and the output current signal
sharing a two core shield cable. The supply voltage range see technical data. For intrinsically safe type must be a safety barrier between the power supply and the instrument.
(4~20)mA/HART(Four wire system)
Separate power supply and the current signal,
respectively using a power cable. The supply voltage range see technical data.
RS485 / Modbus
Power supply and Modbus signal line separate drespectively using a shielded cable, the power supply voltage range see technical data.
