| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | RD809 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD345.00~$695/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Water Radar Distance Sanitary Radar Level Sensor Transmitter | Range: | 0~30M |
|---|---|---|---|
| Accuracy: | +/-3MM | Application: | Sanitary Corrosion Liquid,non Contact |
| Power Supply: | DC24V(2 Wires ),DC24V/AC 220C (4 Wires) | Feature: | Digital Radar Level Transmitter ,non Contact |
| Process Temperature: | -40~80℃,-40~150℃ | Process Pressure: | -0.1~0.5BAR |
| Output: | 4~20mA /Hart /Moudbus(optional) | Process Interface: | Flange (option) |

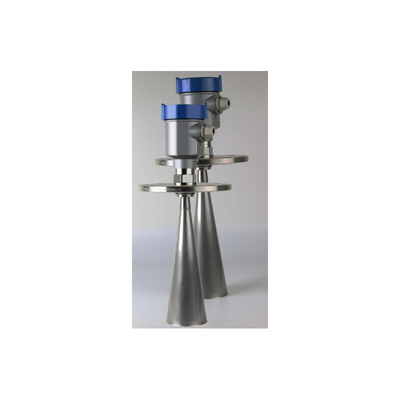

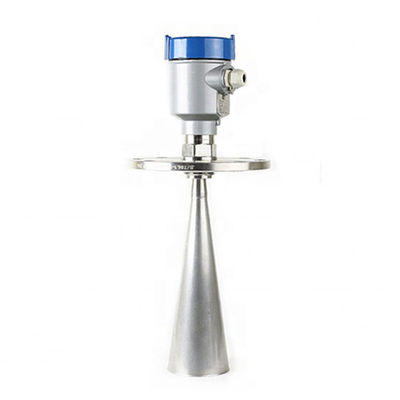

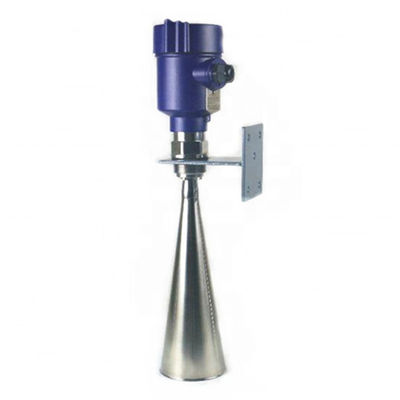

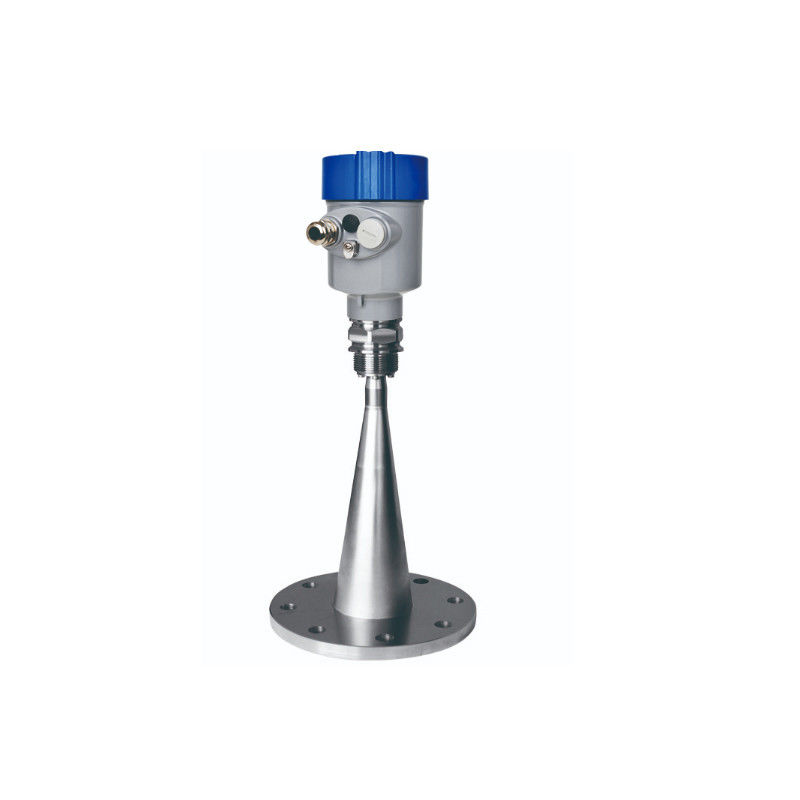

water radar distance sanitary radar level sensor transmitter
Radar level meter transmitter emits a very narrow microwave pulse, the pulse to the speed of light in the space, encountered the surface of the measured medium, part of its energy is reflected back, the same antenna to receive. The time interval between the transmitting pulse and the receiving pulse is proportional to the distance from the antenna to the surface of the measured medium to calculate the distance from the antenna to the surface of the measured medium.
water radar distance sanitary radar level sensor transmitter
| Model | RD805 | RD806 | RD807 | RD808 | RD809 | RD810 |
| Application | All kinds of corrosive liquid | Hight temperature ,pressure,slightly corrosive liquid | Hygienic liquid storage,Corrosive liquid container | Storage containers, process containers, strong dust, easy to crystallize | Solid particles, Powder | Solid material, Strong dust |
| Measuring Range | 10 meters | 30 meter | 20 meters | 70 meters | 35meters | 70 meters |
| Process Connection | Thread, Flange | Thread, Flange | Thread, Flange | Thread, Flange | Thread, Flange | Thread, Flange |
| Medium Temperature | -40°C ~ 130°C | -40°C~ 80°C, -40°C~ 130°C, -60°C~ 250°C, -60°C~ 400°C | -40°C ~ 80°C, -40°C ~ 150°C | -40°C~ 80°C, -40°C~ 130°C, -60°C~ 250°C, -60°C~ 400°C | -40°C ~ 80°C, -40°C ~ 130°C | -40°C ~ 80°C, -40°C ~ 130°C |
| Process Pressure | -0.1~0.3 MPa | -0.1 ~ 4.0 MPa | "-0.1 ~ 0.5MPa | "-0.1 ~ 4 MPa | -0.1 ~ 4.0MPa | -0.1 ~ 4.0MPa |
| Accuracy | ± 5mm | ± 3mm | ± 3mm | ± 15mm | ± 3mm | ± 3mm |
water radar distance sanitary radar level sensor transmitter
Established with 10 million capital in 2015, Xi'an Shelok Instrument Co., Ltd. is a professional designer and manufacturer that engaged in the fields of pressure measurement instruments. We specializing in developing high precision pressure transmitter, pressure gauges, pressure calibration pump and dead weight tester,level transmitter, flow meter etc., widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
