| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | RD809 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD345.00~$695/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Digital Ultrasonic Radar Fuel Level Meter Sensor | Range: | 0~10M |
|---|---|---|---|
| Accuracy: | +/-5MM | Application: | Strong Corrosion Liquid,non Contact |
| Power Supply: | DC24V(2 Wires ),DC24V/AC 220C (4 Wires) | Feature: | Digital Radar Level Meter ,non Contact |
| Process Temperature: | -40~130℃ | Process Pressure: | -0.1~0.3BAR |
| Output: | 4~20mA /Hart /Moudbus(optional) | Process Interface: | Flange (option) |
Radar level meter transmitter emits a very narrow microwave pulse, the pulse to the speed of light in the space, encountered the surface of the measured medium, part of its energy is reflected back, the same antenna to receive. The time interval between the transmitting pulse and the receiving pulse is proportional to the distance from the antenna to the surface of the measured medium to calculate the distance from the antenna to the surface of the measured medium.Our this type of radar level transmitter take the anti-corrosion sensor and apply to all kinds of strong corrosion liquid.

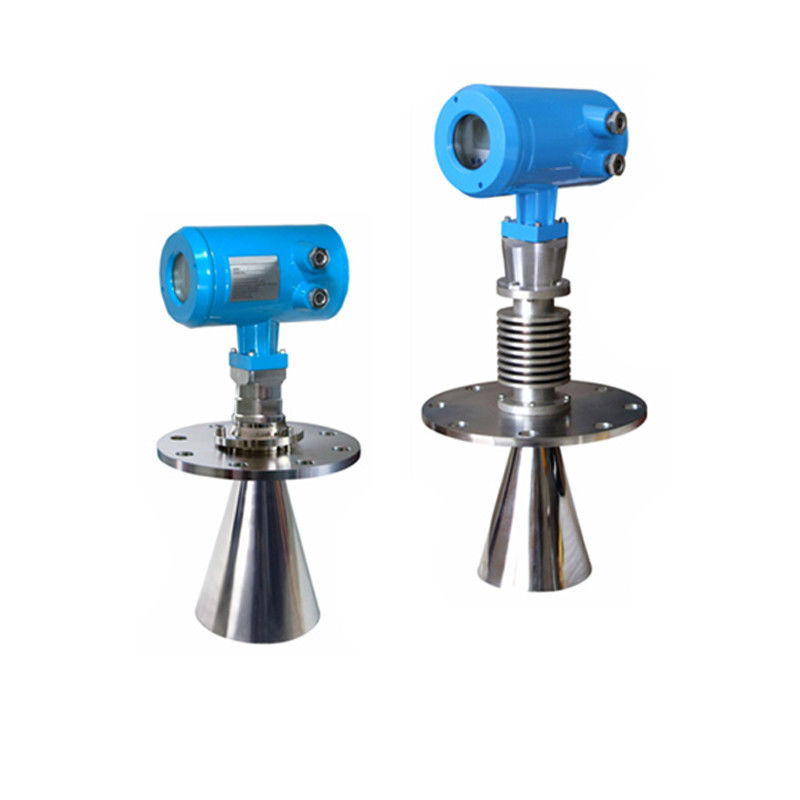

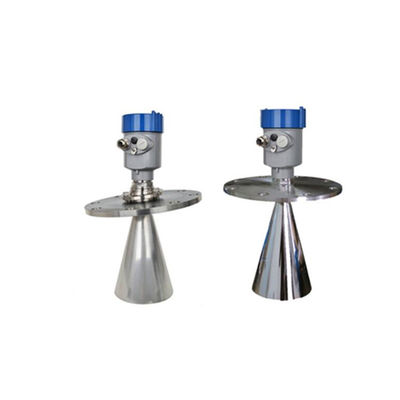

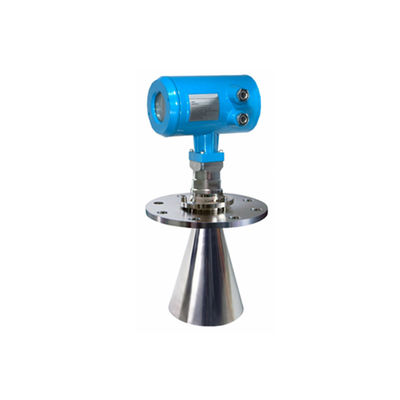

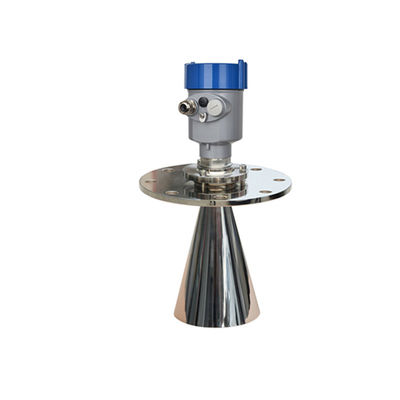

Digital Ultrasonic Radar Fuel Level Meter Sensor (different head type optional)
| Model | RD805 | RD806 | RD807 | RD808 | RD809 | RD810 |
| Application | All kinds of corrosive liquid | Hight temperature ,pressure,slightly corrosive liquid | Hygienic liquid storage,Corrosive liquid container | Storage containers, process containers, strong dust, easy to crystallize | Solid particles, Powder | Solid material, Strong dust |
| Measuring Range | 10 meters | 30 meter | 20 meters | 70 meters | 35meters | 70 meters |
| Process Connection | Thread, Flange | Thread, Flange | Thread, Flange | Thread, Flange | Thread, Flange | Thread, Flange |
| Medium Temperature | -40°C ~ 130°C | -40°C~ 80°C, -40°C~ 130°C, -60°C~ 250°C, -60°C~ 400°C | -40°C ~ 80°C, -40°C ~ 150°C | -40°C~ 80°C, -40°C~ 130°C, -60°C~ 250°C, -60°C~ 400°C | -40°C ~ 80°C, -40°C ~ 130°C | -40°C ~ 80°C, -40°C ~ 130°C |
| Process Pressure | -0.1~0.3 MPa | -0.1 ~ 4.0 MPa | "-0.1 ~ 0.5MPa | "-0.1 ~ 4 MPa | -0.1 ~ 4.0MPa | -0.1 ~ 4.0MPa |
| Accuracy | ± 5mm | ± 3mm | ± 3mm | ± 15mm | ± 3mm | ± 3mm |

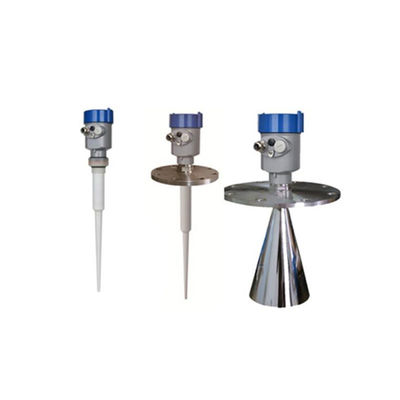

Anti-strong corrosion liquid level transmitter,corrosion liquid level transmitter(different head type optional)
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Company Information
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
Packing & Shipping
