| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | MH-R |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD145.00~$695/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Range: | 2m-30m (optional) | Accuracy: | ±0.3%F.S |
|---|---|---|---|
| Power Supply: | DC 24-32V | Output: | 0~20mA ((0~1KΩ) |
| Case Material: | ABSplastics,Nylon | Display: | LCD(option) |
| Protection Grade: | IP65 And EXiaII BT4Gb | Interface: | M20X1.5 |
| Blind Area: | <0.25- 1.5m | Minimum Display Resolution: | 1mm |

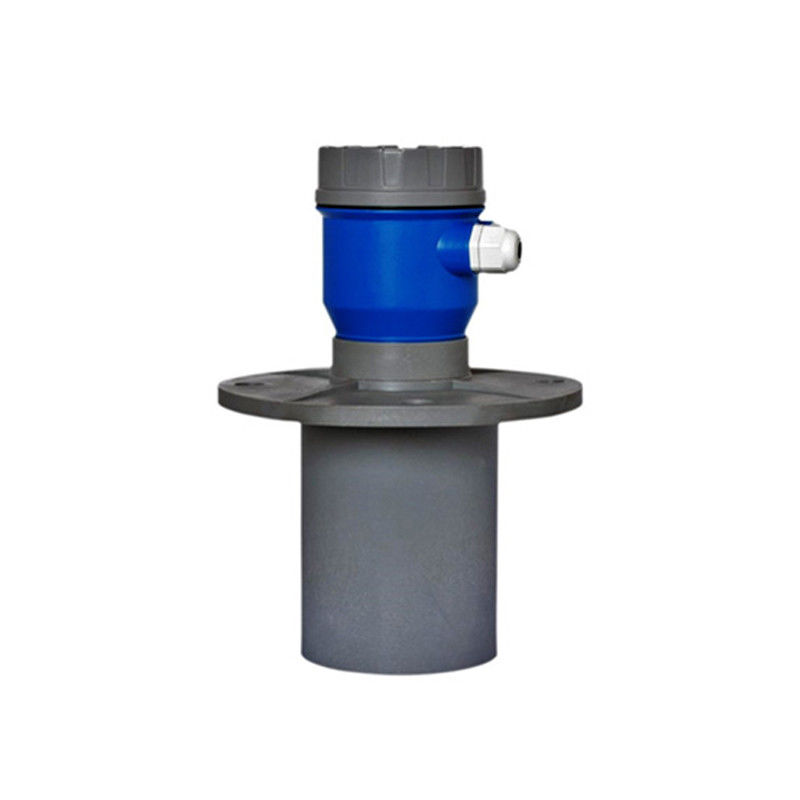

Professional wireless ultrasonic tank level meter
Description
MH-R (2021) two-wire ultrasonic instrument is our company learned a variety of similar products at home and abroad and the advantages of the development, the use of the latest energy-saving components, the machine operating current is less than 3.5mA, Reliable operation in the 9-32V DC power supply voltage. Comes with LCD display, easy to set the scene. It does not have to contact the industrial medium can meet most of the level measurement requirements, the traditional measurement methods inconvenience. So it can be widely used in material level, liquid level measurement and control related to various fields. The upgraded version joins the HART protocol communication support, which compensates the shortcomings of the two-wire instrument without data output and can communicate directly with the HART field instrument.

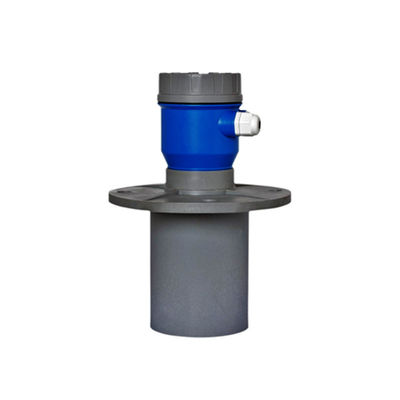

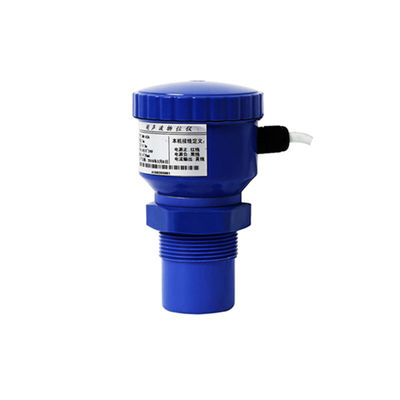

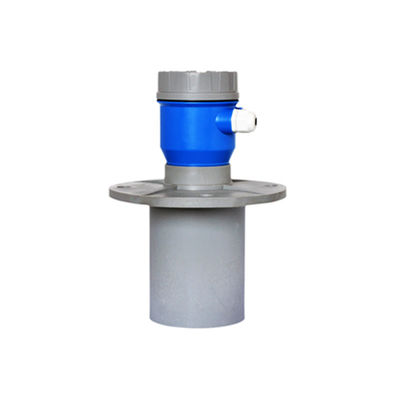

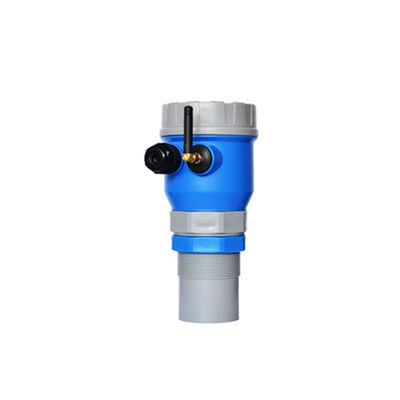

Detailed Images
Specification
| Professional wireless ultrasonic tank level meter | |
| Range | 2-30m(optional) |
| Blind area | <0.25- 1.5m |
| Minimum display resolution | 1mm |
| frequency | 20 KHz~2000KHz |
| Accuracy | ±0.3%F.S |
| Display | LCD(option) |
| Analog signal output | LCD(option) |
| Work power | DC24—32V |
| Sensor Material | ABS plastics,Nylon |
| Interface | M20X1.5 |
| Protection grade | IP65 and EXiaII BT4Gb |
Features
1, Adjust analog signal output
2,Backup and restore settings.
3,Suitable for harsh environment
4, Digital filtering and echo recognition
Applications
1,Water industry (pumping stations, biochemical reaction pool, sedimentation tank etc.)
2,Electric power, mine industy
3,Food industry
Drawing
Related products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
