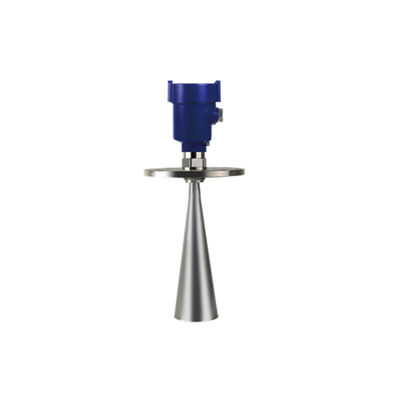

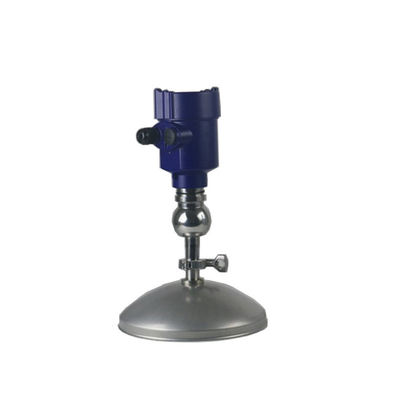

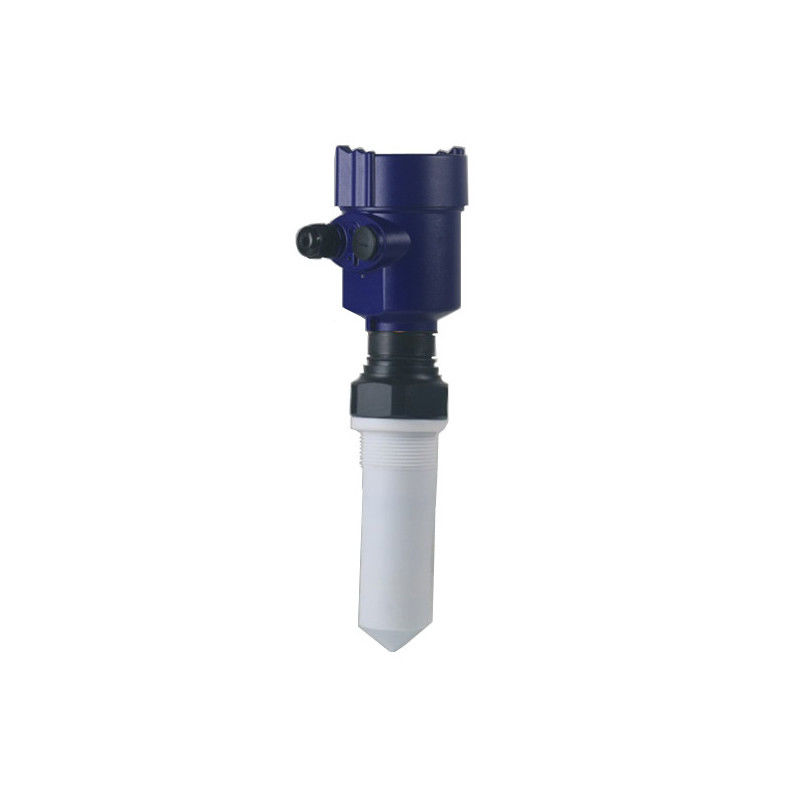

Radar distance level sensor radar fuel level detector radar level gauge

Radar distance level sensor radar fuel level detector radar level gauge

Description

Very short microwave pulses with very low emission energy are transmitted and received through antenna systems.Radar waves travel at the speed of light.The running time can be converted into a level signal by the back of the electronic component.A special time extension method ensures stable and accurate measurements in a very short time.
Even in the presence of spurious reflection, the latest microprocessing technology and our unique pulse-software can accurately analyze the object position echo.
By inputting the container size, the overhead distance value can be converted into a signal proportional to the object position.The meter can be adjusted with empty storage

Environmental conditions:
Suitable for the environment with great temperature and pressure change, inert gas, smoke, steam and volatilization, explosion proof and corrosive.

Environmental and energy impacts:
The antenna of the RD809 radar object level meter emits extremely narrow microwave signals, which can work normally in the range of industrial frequency band.Extremely low emission power, no harm to human body and environment.

Safety in dangerous places:
SLK806 radar level meter in accordance with the safety type Ex ia Ⅱ T6 explosive-proof grade C design.The shell is made of aluminum and is connected to the earth.Strictly abide by the state regulations on installation of explosion-proof hazardous areas.

Working conditions:
The temperature can be extended to (-40-400) degrees through different components, such as: air cooling device, water cooling device, scavenging device. The pressure can be extended to 4000KPa with different pressure sealing components

Specification

Dimension

Application

Petroleum
Petrochemical, oil production plants, chemical plants, coking plants and other measuring media: crude oil, light oil, natural gas, methanol, ethanol, ammonia, benzene, polyphenylene, ester, water vapor, liquid carbon dioxide, paint, turpentine, pulp

Power industry
Measuring medium for power plant: raw coal bin, pulverized coal bin, fly ash bin, chemical water

Iron and steel industry
Measuring medium for steel mills: limestone, coking coal, cold return ore, raw material bin, powder bin, coal ash bin, chemical water

Cement factory
Clinker storehouse, powder storehouse, raw coal storehouse

Feature

Independent of temperature and pressure

Microwave operation is almost unaffected by ambient temperature and pressure, so radar sensors are very suitable for complex process conditions.Process pressure from vacuum to 40bar, process temperature -40~400°C, absolutely no problem with the measurement.
It is not affected by the characteristics of the measured medium
Changing the composition of the measured medium or changing the whole medium will not affect the measurement results.No redebugging is required

Compatible line applications for different scenarios
SLK-806 series of radar sensors can be used for any application.We can provide different antennas, thus generating different emission angles, measuring ranges and measuring characteristics.Correct instrument selection depends on application conditions.

Easy service maintenance
SLK-806 is easy to service and maintain due to its non-contact measurement.
