| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | CA/CR |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD135.00~$195/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Ultrasonic Fuel Level Sensor Liquid Level Sensor Tank Level Sensor | Accuracy: | ± 0.3%F.S |
|---|---|---|---|
| Measuring Range: | 2m, 5m, 8m, 10m, 12m, 15m, 20m, 25m, 30m | Detection Blind Area: | Less Than Or Equal To 0.25 ~ 1.5m |
| Analog Output Signal: | 0 ~ 20mA;4 ~ 20 MA Load > 300 Ω;0 ~ 5 V;0 ~ 10 V | Digital Output: | RS485 (Modbus Supported), HART Protocol (second-line System) |
| Power Supply: | DC12-24V (three-wire System), DC24-32V (second-line System) | Power Consumption: | Less Than 1.5w (3-wire), Less Than 0.8w (2-wire) |
| Ingress Protection: | IP65 | Explosion-proof Grade: | EXiaII BT4Gb |

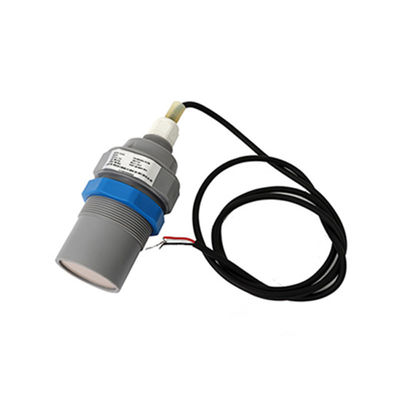

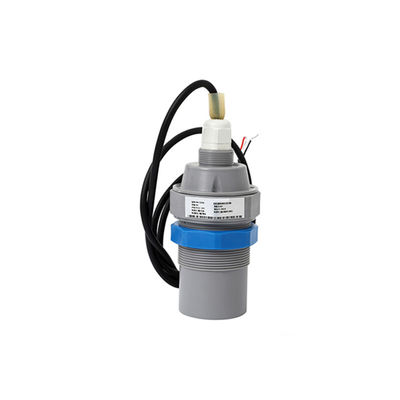

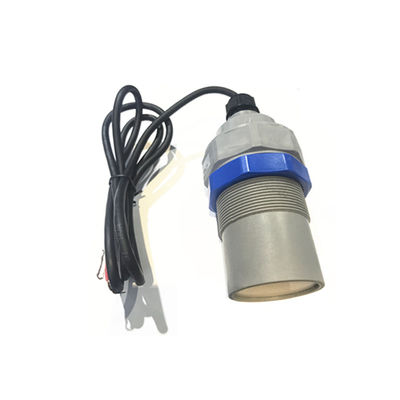

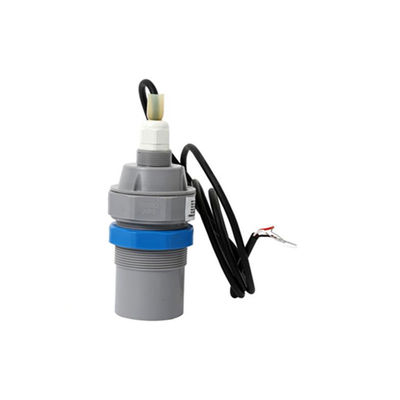

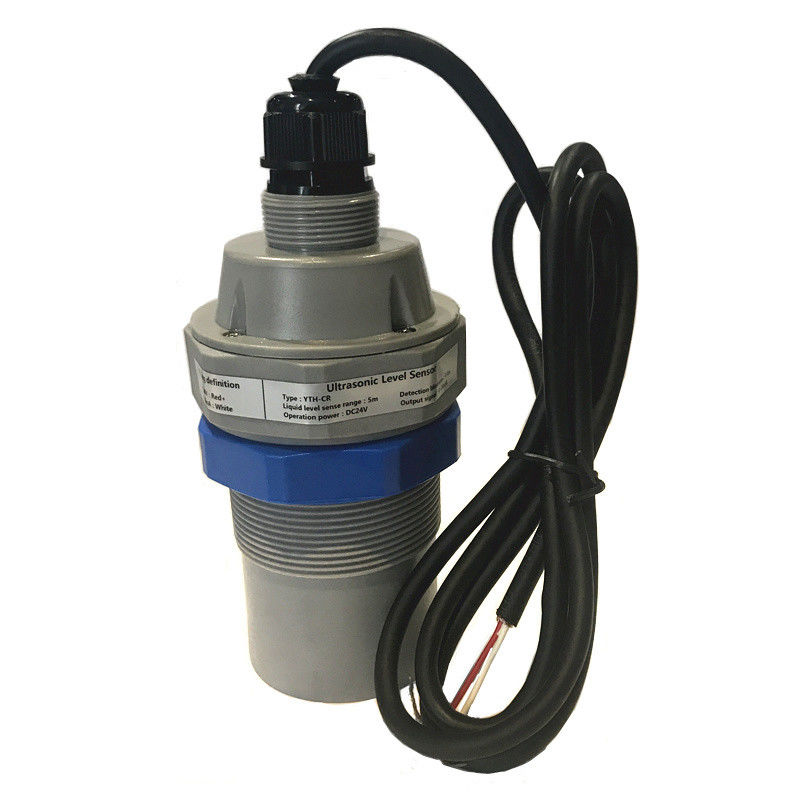

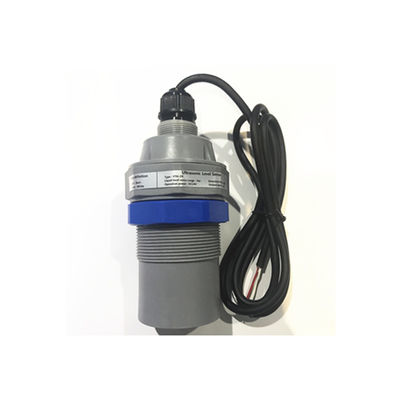

Ultrasonic fuel level sensor liquid level sensor tank level sensor
Description
Ultrasonic level sensor is special designed for small spaces. It is small volume, light weight and provides perfect measuring function(such as transmitting ,receiving ,auto temperature compensation, digital filter…). Supporting RS485 serial menu adjustment, it bring convenient of displaying. According to onsite condition, it can divide into small blind high prices sensor and standard sensor.
Specification
| Measuring range | 1m,3m,5m,8m,10m,12m,15m | Blind area | <0.06,<0.4,<0.6m |
| Output | 4~20mA or RS485 | Frequency | 20~350KHz |
| Max load impedance | >300Ω | Error | ±0.3%×max range |
| Power supply | DC12~24V | Installation | M60X2 or 61mm |
| Working temperature | -10~65℃ | Working pressure | Normal |
| Dimension | Φ74mm×119mm×M60 | Power consumption | <1W |
Dimension
Dimension: Φ 55 mm * 119 mm * G1 1/2 (2 m span)
74 mm * 135 mm * Φ M60 (5 m to 15 m span)
Φ 109 mm * 200 mm * ((20 m to 30 m span)
Installation method: G1 1/2 or Φ 47 mm round hole (2 m span)
M60X2 or Φ 61 mm round hole (5 m to 15 m span)
M30x1.5 or DN80 non-standard flange (20m-30m measuring range)
Applications
Circulating water and sewage treatment:pump room, sump well, biochemical reaction tank, sedimentation tank, etc
It is used for controlling electric power and mine:mortar pool, coal slurry pool, butter storage tank, storage yard or partial mobile equipment
Food industry distilleries:grain warehouses, food materials filling tanks, etc
Features
Optional increment/difference distance measurement to measure distance or level
Direct display of weight inside container after setting specific gravity parameters
4~20mA output, RS485S serial data output or 0~5V analog output
Through PC software to set menu and adjustment
Free adjustment the range of current or voltage output
PC serial output and adapters, capable of PC networking
Optional increment/difference measurement to measure distance or level
1-15 transmitted pulse intensity depending on working conditions
Free setting of full-scale start point and end point
