| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | CA/CR |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD135.00~$195/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Pool Water Oil Tank Ultrasonic Liquid Level Sensor | Accuracy: | ± 0.3%F.S |
|---|---|---|---|
| Measuring Range: | 2m, 5m, 8m, 10m, 12m, 15m, 20m, 25m, 30m | Detection Blind Area: | Less Than Or Equal To 0.25 ~ 1.5m |
| Analog Output Signal: | 0 ~ 20mA;4 ~ 20 MA Load > 300 Ω;0 ~ 5 V;0 ~ 10 V | Digital Output: | RS485 (Modbus Supported), HART Protocol (second-line System) |
| Power Supply: | DC12-24V (three-wire System), DC24-32V (second-line System) | Power Consumption: | Less Than 1.5w (3-wire), Less Than 0.8w (2-wire) |
| Ingress Protection: | IP65 | Explosion-proof Grade: | EXiaII BT4Gb |

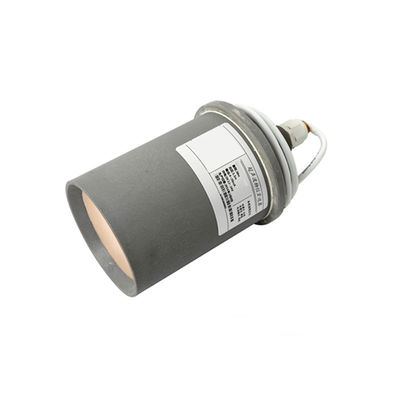

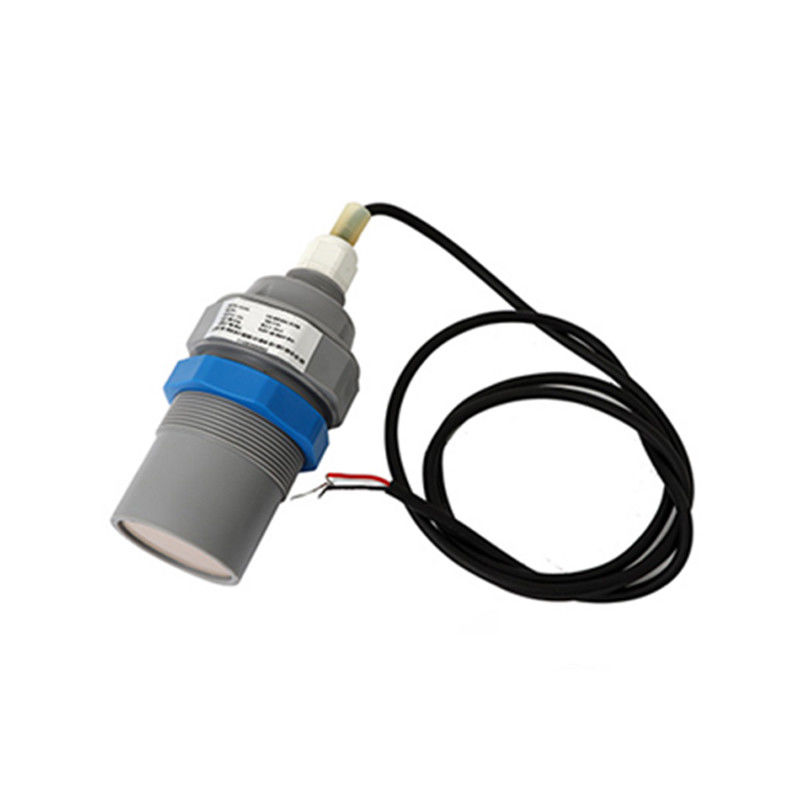

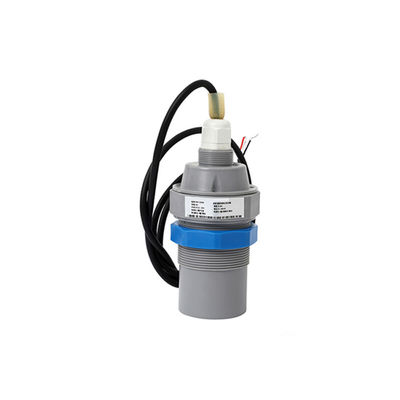

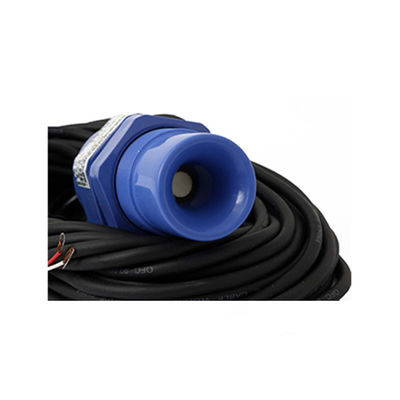

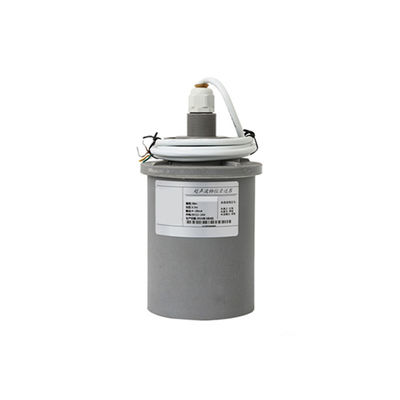

SLK-CA/CR three-wire/two-wire ultrasonic liquid level transmitter is our latest design for low cost, small installation space, equipment and other applications.It has made extensive use of the advantages of many kinds of level meters at home and abroad, realized full digitization, and added HART protocol to the second-line system.Humanized design concept, with perfect object/liquid level measurement and control.The main chip adopts imported industrial grade single chip microcomputer, digital temperature compensation, ultra-wide voltage input voltage stabilizer and dozens of related special integrated circuits.It has strong anti-interference and can meet most of the requirements of object position measurement without contact with industrial media.The problems of winding, clogging, leakage, medium corrosion and maintenance inconvenience caused by traditional measurement methods such as pressure type, capacitance type and float type are solved thoroughly.Therefore, it can be widely used in various fields related to material level and liquid level measurement and control.The explosion-proof grade is: ExiaIIBT4Gb.
The robust and stable sensor is suitable for severe industrial applications
Matlab has strong anti-interference and online output regulation
The temperature sensor is built into the transducer to realize the real-time automatic temperature compensation of the measured value
The matlab parameters can be set by RS485, or by external debugging resistance to set the internal parameters of the machine
Tests block interference signals near the probes
4~20MA current output, optional field bus interface
Circulating water and sewage treatment:pump room, sump well, biochemical reaction tank, sedimentation tank, etc
It is used for controlling electric power and mine:mortar pool, coal slurry pool, butter storage tank, storage yard or partial mobile equipment
Food industry distilleries:grain warehouses, food materials filling tanks, etc
Dimension: Φ 55 mm * 119 mm * G1 1/2 (2 m span)
74 mm * 135 mm * Φ M60 (5 m to 15 m span)
Φ 109 mm * 200 mm * ((20 m to 30 m span)
Installation method: G1 1/2 or Φ 47 mm round hole (2 m span)
M60X2 or Φ 61 mm round hole (5 m to 15 m span)
M30x1.5 or DN80 non-standard flange (20m-30m measuring range)
