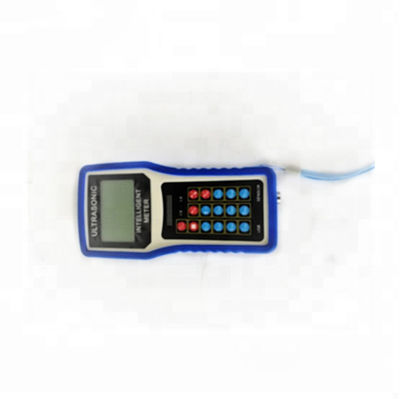

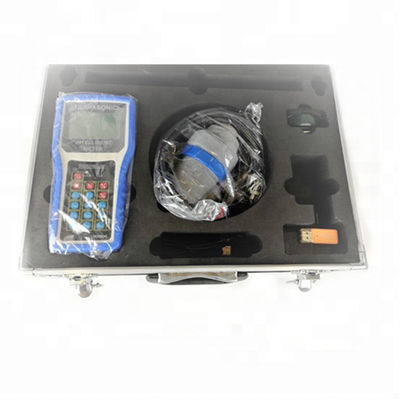

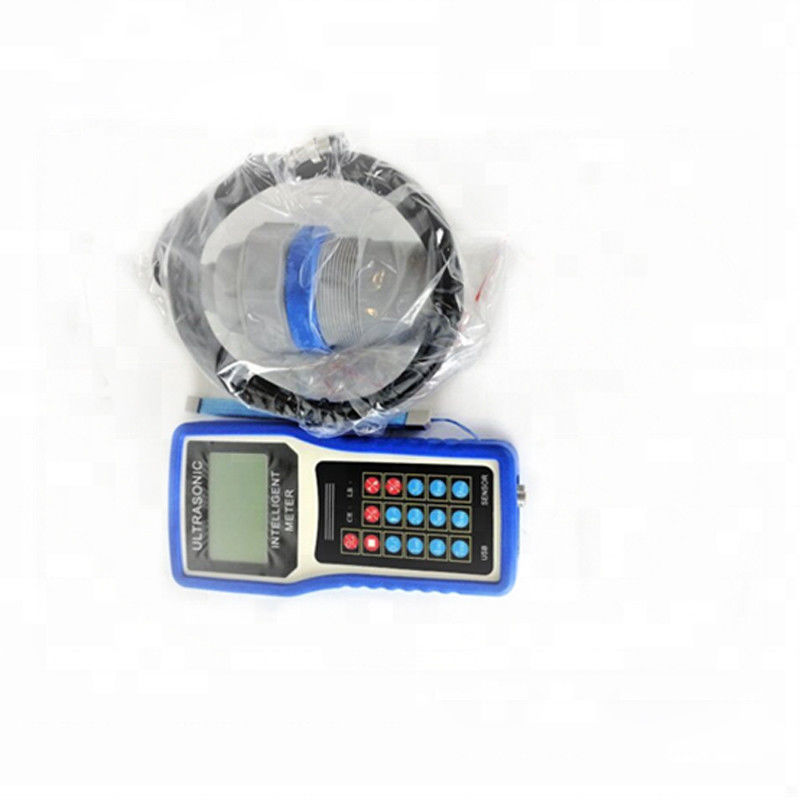

Portable ultrasonic water level sensor meter

Adopting excellent experience from home and abroad, this instrument is easy to operation and carry. It employs large scale integrated circuit, mounted rate up to 99% .Owning to that, it is reliable for longer time and brings lowest power consumption.

Featuer of Portable ultrasonic water level sensor meter:

1 Programmable cable interface using the PC software for proximity switch parameter settings
2 Current and voltage outputs
3 Synchronization
4 You can adjust the sensitivity of the acoustic energy and
5 Temperature Compensation

Application of Portable ultrasonic water level sensor meter:

1,Water industry (pumping stations, biochemical reaction pool, sedimentation tank etc.)

2,Electric power, mine industy

3,Food industry

Output :USB or RS485

Max error:±0.3%, ±1mm

Current max load impedance:150Ω

Sensor frequency:200~2000KHz(optional)

Material: ABS

Work temperature:normal

Work pressure:normal

Display :LCD

Display resolution:1mm

Key board :5 sensitive key

Sensor cable diameter 5~10mm×1.5m(optional)

Main processor dimension:200×100×75(mm)

Power:1.5V AA battery×5 or DC 5V

Normal consumption:<0.5W

Idle consumption:<5W

Established with 10 million capital in 2015, Xi'an Shelok Technology Instrument Co., Ltd. is a professional designer and manufacturer that engaged in the fields of pressure measurement instruments. We specializing in developing high precision pressure transmitter, pressure gauges, pressure calibration pump and dead weight tester,level transmitter, flow meter etc., widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.

Specialties

pressure transmitter/sensor/transducer, pressure gauge, pressure calibration hand pump, and water level sensor

1, more than 10 years industry background

The original organization is Xi'an Precise Instruments Factory, established in 2007,In 2013, Yunyi Group is established for development command.In 2015, Xi'an Shelok instruments Co., Ltd is estalished with 10 million capita for meeting the international business expanding demand.

2, a company of design and manufacture capability

Mainly focus on design and customized solution offer, and combining our professional industry background and our capability of supply chain management in local market, more comprehensive products and services could be offered.

3, R&D team + cooperation with colleges and universities

Keeping our capability of technology innovation improved makes us available to meet various technical challenges

4, three inspection steps + good warranty service

Strict inspection operation process keeps our products qualified, and clearly warranty policies help customer's solve after-sale problems and lower their cost.

5, sample first policy.

By offering most suitable proposal to help customers maximize their profit.

6, employees with + 4 years international experience are more than 100%

Professional and effective international business operation offers better service expericence

Q:How long will you reply me?

A:We will contact you as soon as possible but within 12 hours

Q: Can I get some samples?

A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.

Q: What's delivery time?

A: It usually takes about 3-5 working days for small order and 10-15 days for big order.

Q:How do you control your quality ?

A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).

Q: What's your warranty terms?

A: We offer 12 months warranty time.

Q:can you provide OEM & Customized service?

A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
