| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | L200 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD35.00~$95/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Accuracy: | 0.25%FS | Output: | 0~10VDC (three Wire) |
|---|---|---|---|
| Range: | 0-5-10-20-50-100-200m | Connection: | G1/4, G1/2, 1/2NPT, 1/4NPT, M12 * 1.5, Etc. (can Be Customized) |
| Medium Temperature Range: | -20~85°C | Response Time: | ≤5mS |
| Power Supply: | 24V Dc(15~30VDC) | Pressure Type: | Gauge Pressure |
| Stability: | ≤±0.15%FS/ Year |
water liquid level transmitter price wholesale
Description
input probe type Hydrostatic Tank Water Level Sensor / transmitter is intelligent submersible transmitter, this water level sensor consist of isolation diaphragm oil-filled sensor and high-powered MCU. The tank water level sensor can correct the linearity and compensate temperature drift, have digital output with HART protocol and analog output. The water level transmitter with characteristic of high precision, good stability. This submersible level sensor can achieve two-way communication during diagnosing process at the scene. This submersible level transmitter apply in city’s power supply, water conservancy, metallurgy, petrifaction and so on.

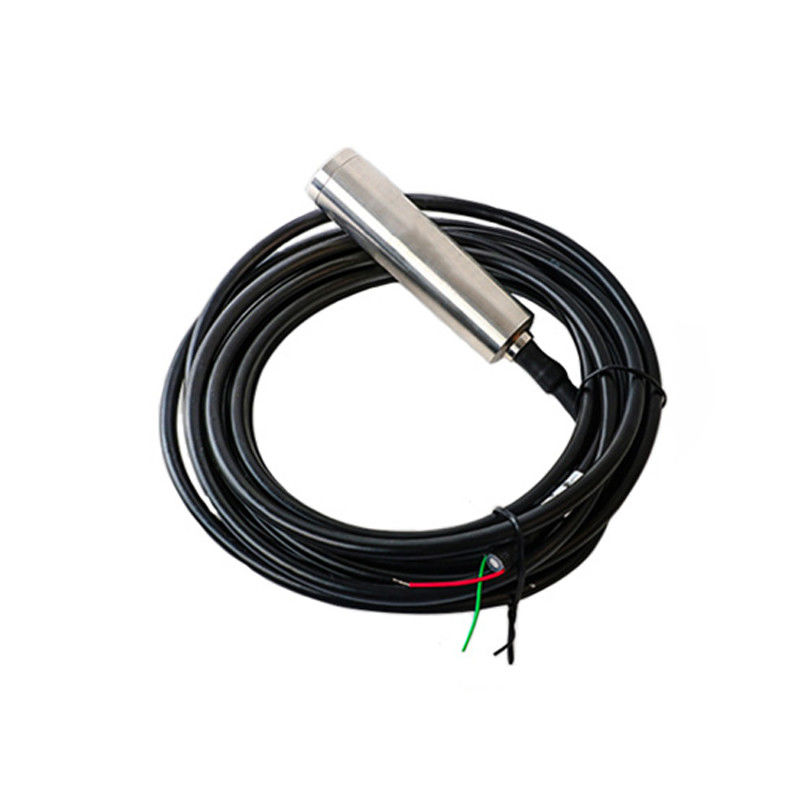

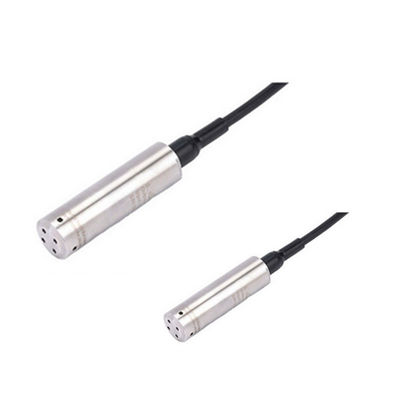

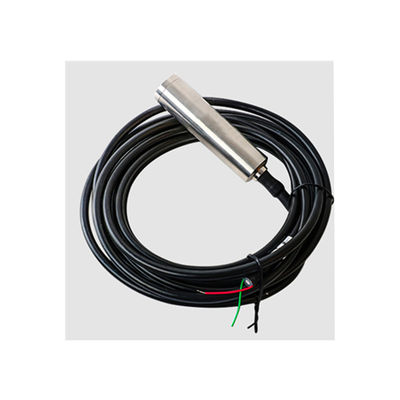

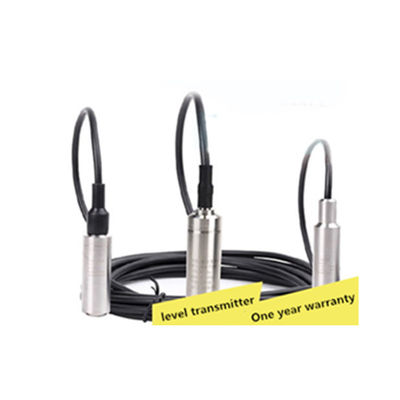

Detailed Images
Specification
| water liquid level transmitter price wholesale | |
| Pressure Type | Gauge Pressure |
| Range | 0~5~10~20~50~100~200M |
| Output | 0~10V DC (Three wire) |
| Accuracy | +0.25% FS; +0.5%FS |
| Power Supply | 24V DC (15 ~ 30V DC) |
| Insulation Resistance | ≥1000MΩ/100V DC |
| Load Resistance | Current output type: Max 800Ω/Voltage output type: more than 50KΩ |
| Temperature Medium | -20 ~ +85℃ |
| Ambient Temperature | -20 ~ +85℃ |
| Relative Humidity | 0 ~ 95% RH |
| Seal Grade | IP68 |
| Over Load | 150%FS |
| Response Time | ≤5mS |
| Stability | ≤±0.15%FS/year |
| Vibration Fluence | ≤±0.15%FS/year(Mechanical vibration frequency 20Hz ~ 1000Hz) |
| Electrical Connection | Full sealed 5 core gas shielded cable |
| Connection Thread | Input Type |
| Connection Thread | Material SS304 |
Applications
4-20ma Input Liquid Level transmitter Water Level Sensor of the water tank, oil level in oil tank, water sink (oil sink), wells, water towers, river, reservoir, sewage treatment equipment, sea water, groundwater monitoring, etc.
Ordering Guide
Drawing
External dimension
Connection diagram
Installation notice
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Company Information
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
Packing & Shipping
