| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | UC001 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD35.00~$95/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Stainless Steel Ultrasonic Level Sensor | Detection Range: | 15cm - 200cm |
|---|---|---|---|
| Blind: | 15cm | Accuracy: | <3mm |
| Transducer Frequency: | 180Khz | Transducers Emitting Angle: | 14 Degrees |
| Operating Current: | Less Than 50mA | Output: | 4 - 20mA |
Description stainless steel ultrasonic level sensor
The ultrasonic sensor features an analogue output with two teachable evaluation limits. These are set by applying the supply voltage -U or +U to the TEACH-IN input. The supply voltage must be applied to the TEACH-IN input for at least 1s. LEDs indicate whether the sensor has recognized the target during the TEACH-IN procedure.
Specification stainless steel ultrasonic level sensor:
Detection range: 20cm - 200cm;
Blind: 20cm;
Accuracy: <3mm;
Transducer frequency: 180Khz;
Transducers emitting angle: 14 degrees;
Operating voltage: 12v or 24v;
Operating current: less than 50mA;
Output current :4 - 20mA (corresponding to 15-200cm)
Shape: 30mm diameter threaded pipe, length 80mm

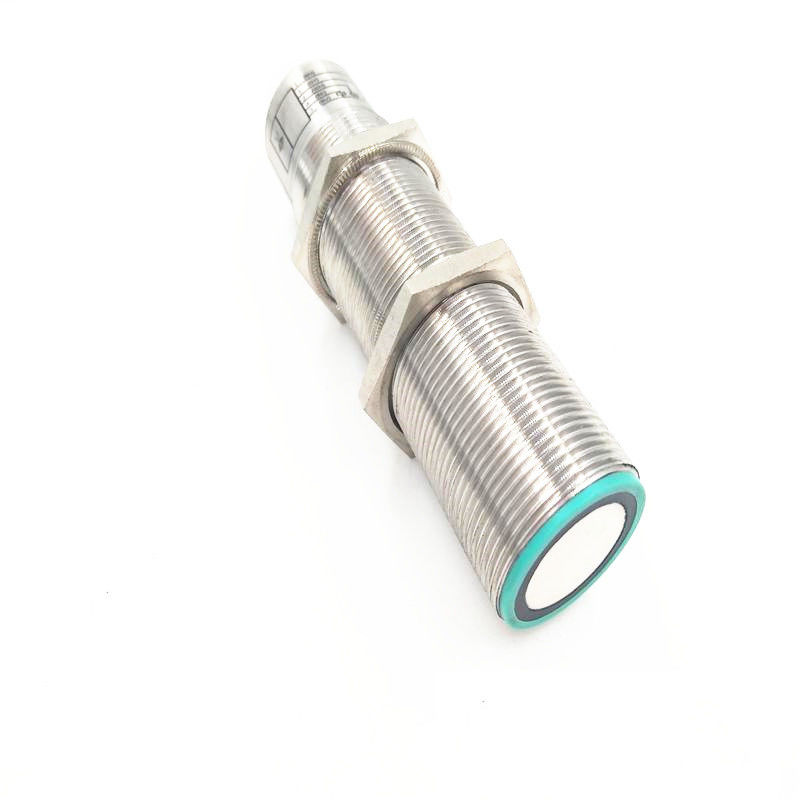

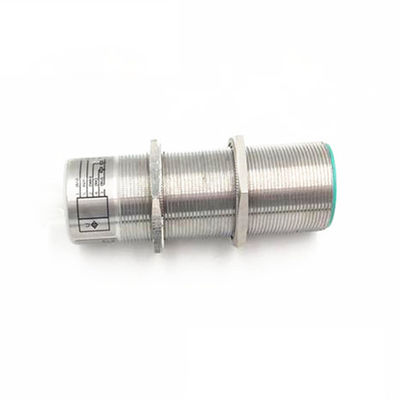

Detailed Images stainless steel ultrasonic level sensor
Standard export carton packing.
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
