| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | MH-GR |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD135.00~$295/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Range: | 2m-30m (optional) | Accuracy: | ±0.3%F.S |
|---|---|---|---|
| Power Supply: | DC 24-32V | Output Signal: | 4 ~ 20mA Load Impedance (0 ~ 1KΩ) |
| Shell Material: | Cast Aluminum | Display: | LCD Display |
| Protection Grade: | IP65 | Interface: | M20X1.5 (two Wires) |
| Explosion-proof Grade: | EXiaII BT4Gb | Blind Zone: | <0.25-1.5m |

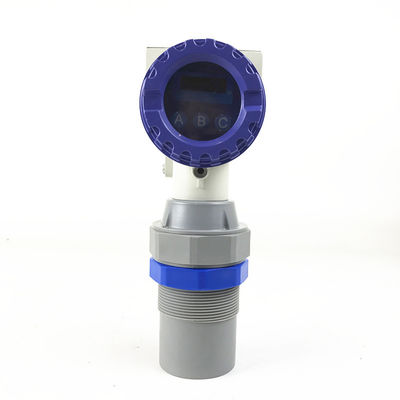

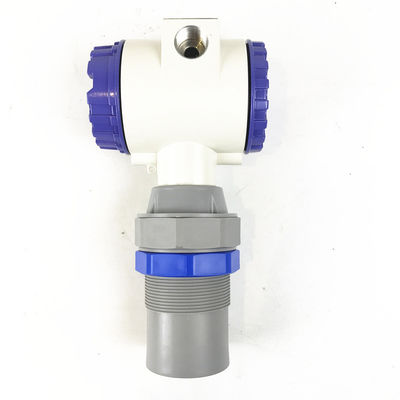

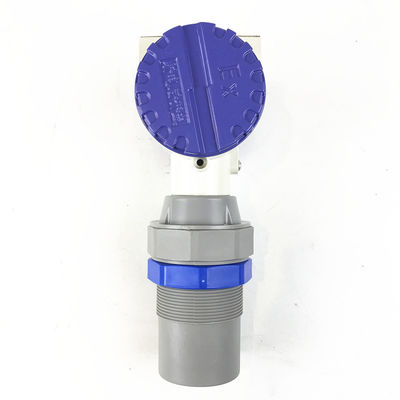

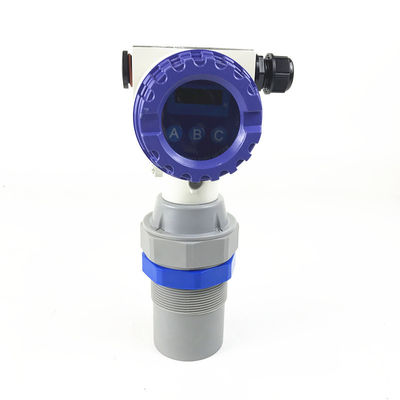

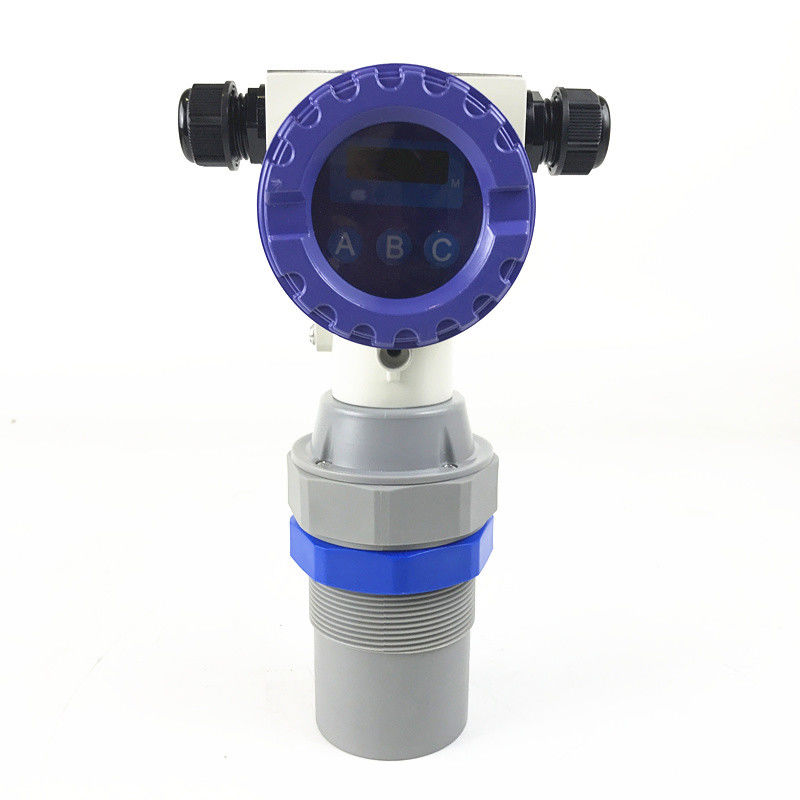

MH-GR cast aluminum two-wire ultrasonic material (liquid) position meter is a two-wire ultrasonic measurement product developed by our company by taking advantage of many similar products at home and abroad. Using the latest energy-saving components, the whole working current is less than 3.5mA, and it can work reliably in the 9-32V DC power supply voltage. It is made of cast aluminum casing and comes with LCD display for convenient on-site setting. It can meet most of the level measurement requirements without touching the industrial medium, thus completely solving the shortcomings such as winding, clogging, leakage, medium corrosion and maintenance inconvenience caused by traditional measurement methods such as pressure type, capacitance type and float type. Therefore, it can be widely used in various fields related to material level and liquid level measurement and control. The upgraded version incorporates HART protocol communication support, which makes up for the shortcomings of the two-wire meter without data output, and can directly communicate with HART field instruments.
★ Can adjust the analog output arbitrarily
★ Backup and restore settings parameters
★ With digital filtering and echo recognition
★ 4~20MA current output, with HART protocol
★ Sturdy and stable sensor for harsh industrial applications
★ The built-in temperature sensor of the transducer realizes real-time automatic temperature compensation of measured values.
☆Water and sewage treatment Pump house, collection well, biochemical reaction tank, sedimentation tank, etc.
☆Electricity, mine mortar pool, coal slurry tank, butter storage tank, stockyard or part of mobile equipment control, etc.
☆Food Industry Winery, granary, food materials, tanks, etc.
☆ Control system supporting use
79mm × 210mm × G1 1/2 (2m range)
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
