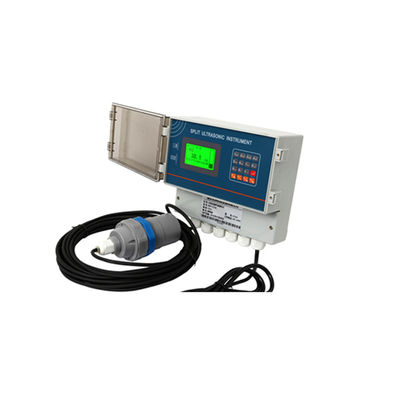

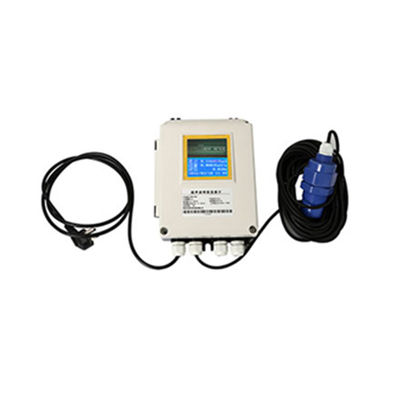

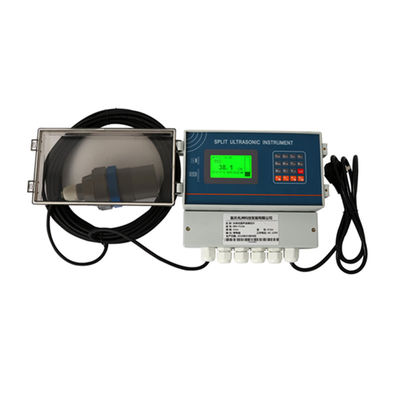

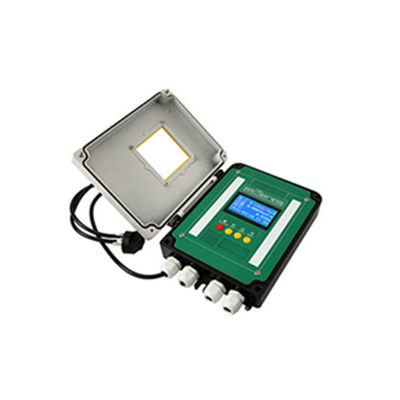

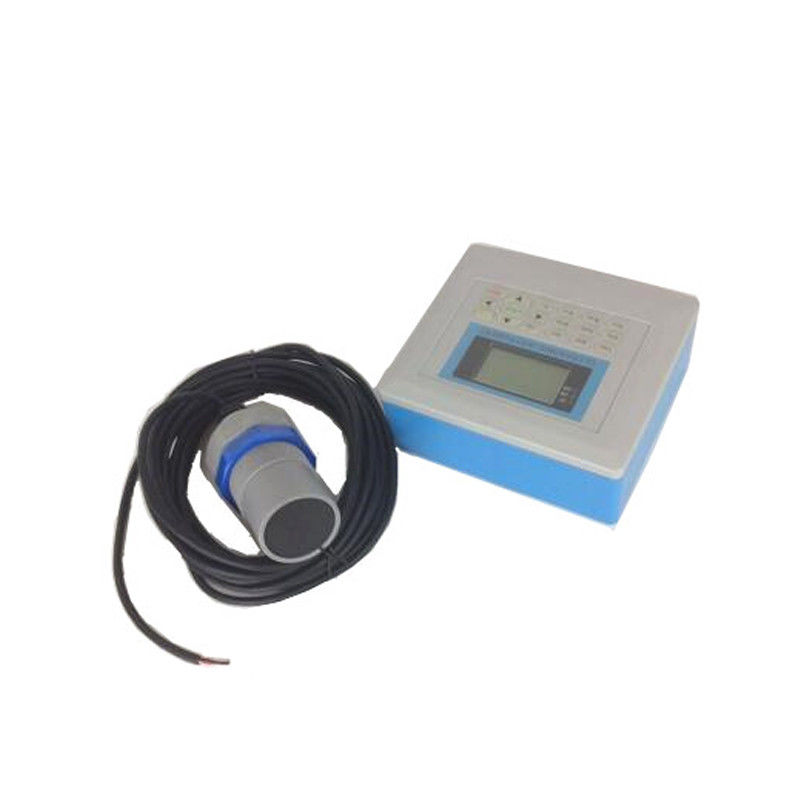

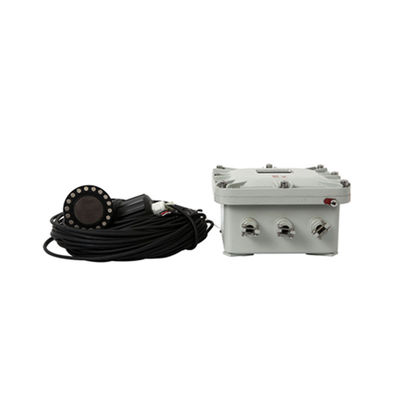

Ultrasonic fuel level sensor diesel deep well water tank level meter

Ultrasonic fuel level sensor diesel deep well water tank level meter

    • Ultrasonic fuel level sensor diesel deep well  water tank level meter
    • Ultrasonic fuel level sensor diesel deep well  water tank level meter
    • Ultrasonic fuel level sensor diesel deep well  water tank level meter
    • Ultrasonic fuel level sensor diesel deep well  water tank level meter
    • Ultrasonic fuel level sensor diesel deep well  water tank level meter
    • Ultrasonic fuel level sensor diesel deep well  water tank level meter
  • Ultrasonic fuel level sensor diesel deep well  water tank level meter

    Product Details:

    Place of Origin: Made In China
    Brand Name: SHELOK
    Certification: CE
    Model Number: YTH-F/P

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: USD235.00~$295/pc
    Packaging Details: Accuracy 0.1 water proof PH meter PH tester Standard export carton packing.
    Delivery Time: 3 ~ 7 Working Days After Payment
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 10000pcs/Month
    Contact Now
    Detailed Product Description
    Product Name: Ultrasonic Fuel Diesel Deep Well Water Tank Level Meter Sensor Range: 2-30m (optional)
    Accuracy: ±0.3%F.S Power Supply: AC 220Vor DC12-24V
    Output: 0~20mA;4~20mA>300Ω;0~5V;0~10V Display: TFT Screen,LCD(optional)
    Protection Grade: IP65 And EXiaII BT4Gb Interface: G1 1/2 M60x2 M30x1.5 Or DN80 Flage
    Blind Area: 0.3 ~ 1.5m Frequency: 20 KHz~200KHz

    Ultrasonic fuel level sensor diesel deep well water tank level meter

    Description

    YTH-F / FP split wireless ultrasonic water tank level meter produced with our many years experience of level meter production . drawing on a variety of similar products advantages, and the development of a convenient and applicable split ultrasonic level meter, Environmental machine circuit is prone to trouble to worry about. With accurate measurement, reliable work, the appearance of generous and so on. Using large-scale integrated circuits, component chip rate of 90%, to ensure the long-term reliability of the product. While reducing its power consumption to a very low, the use of large-screen display full Chinese menu easy to use, support SD card data acquisition and serial data download, can record ten interference echo points.

    Specification

    Range 2-30m(optional) Blind area 0.3~ 1.5m
    Minimum display resolution 1mm Frequency 20 KHz~200KHz
    Accuracy ±0.3%F.S Display English bilingual LCD, colourful TFT(option)
    Analog signal output

    0~20mA;4~20mA>300Ω;

    0~5V;0~10V

    Sensor material 10m shielded cable (option the length )
    Switch output 2 lines NPN/Relay(AC:5A 250V DC:10A 24V) Work power DC12—24V or AC220V
    Case Material ABS plastics,Nylon Interface G1 1/2, M60×2 ,M30X1.5 or DN80 non-stander flage(Range 20m-30m)
    Protection grade IP65 and EXiaII BT4Gb

    Dimension


    Sensor dimensions:
    Φ65mm×119mm×G1 1/2 (2m range)
    Φ74mm×137mm×M60 (5m-15m range)
    Φ110mm×194mm×M30 (20m-30m range)
    Sensor installation interface:
    G1 1/2 (2m range)
    M60×2 (5m-15m range)
    M30X1.5 or DN80 non-standard flange (20m-30m range)

    Applications

    1.Water industry (pumping stations, biochemical reaction pool, sedimentation tank etc.)
    2.Electric power, mine industry
    3.Food industry

    Features

    1.International electrical interface easy to take.
    2.The sensor is strong and stable for harsh industrial situations.
    3.Strong anti-interference
    4.4~20MA current output, optional field bus interface
    5.Can manually set blind area
    6.Support blue-tooth ,GPRS,Mini SD card ,USB ,Mini printer (option)
