| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | NM-165N |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $2449.5~$2769.5/pc |
| Packaging Details: | High Quality Portable Dry Block Temperature Calibrator Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs/Month |
| Product Name: | New Portable Dry Block Temperature Calibrator With RS232 Bluetooth -45~165℃ Full Screen | Model No.: | NM-165N |
|---|---|---|---|
| Temperature Range: | -45℃ ~ 165℃ | Usage: | Industrial |
| Accuracy: | ±0.01℃ | Theory: | Temperature Controller |
| Heat: | Semiconductor Refrigeration And Electro-thermal | Stability: | ±0.04C Or ±0.1C |
| Warranty: | 18 Months |

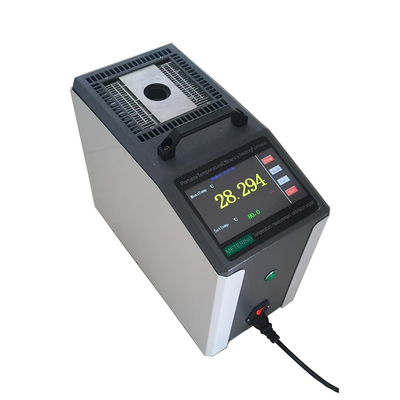

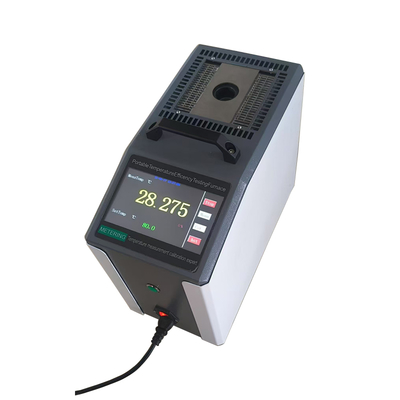

New Portable Dry Block Temperature Calibrator With RS232 Bluetooth -45~165℃ Full Screen
Product Description
High Performance Touch-screen portable Dry Block Temperature Calibrator Easy to use and convenient, Easy and efficient temperature calibration., be extensive applied in machinery, chemical industry, food, medicine and other industries.
At present, there is a disadvantage of slow heating and slow temperature in the field of dry type calibration furnace in China, so it will take a long time for users to calibrate. The latest generation of dry well furnace is designed with the most advanced heating principle in the world, which has the characteristics of fast heating, fast temperature and fast cooling, which greatly improves the existing calibration efficiency.
The temperature control circuit is measured with high precision sensor, which ensures the precision is higher than that of other domestic manufacturers, and the technology meets the international standard. The world's first touch operation is simple and fast.
Detailed Images
Specifications
| Bluetooth RS 232 Dry Block Temperature Calibrator | |
| Model No | NM-165N |
| Temperature Range | -45 ~ 165℃ |
| Heating Rate | 30~100: 20min |
| Accuracy | ±0.1℃ |
| Diameter of Soaking Pit | 30mm |
| Vertical Temp. Field | 50mm axial uniformity (bottom up 50mm) |
| Horizontal Temp. Field | ≤±0.05℃ |
| Insert Depth | 165mm |
| Temp. Unit | ℃ or ℉ |
| Max Watts | 400W |
| Control Accuracy | 0.1% or 0.2% |
| Power Supply | 110V/220V AC |
| Display Resolution | ±0.1℃ or ±0.01℃ |
| Size | 320×170×320mm |
| Weight | 15KGS |
Features
* Small volume, light weight, easy to carry;
* Multiple types of inserted into the pipe and can meet different size, the number of sensor test and calibration. And can customize according to the special needs of users;
* Good level of temperature, vertical temperature field;
* Have been inserted into the depth of the same industry leading;
* 5.0 -inch TFTLCD full touch-screen, 16 bit true color image, simple and intuitive to use;
* Rapid cooling, easy setting, temperature control stability is good;
* Soaking block can quickly replaced;
* With load short circuit, load circuit, sensor protection, and other functions.
Applications
Used in the required temperature range, it is easy to set and accurately produce the required temperature.It has the characteristic of small volume, fast heating, stable temperature control, no pollution, etc.The temperature sensor and instrument can be integrally calibrated, so it is easy to carry, easy to use, easy to fast and reliable temperature calibration. It is widely used in machinery, chemical, food, pharmaceutical and other industries.
Related Products
FAQ
Q: How long will you reply me?
A: We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q: How do you control your quality?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have?
A: ISO9000, CE, Explosion-proof certification, RoHS ready. And before the delivery of goods, quality and safety inspection certification issued by third parts also can be offered.
Q: Could I visit your factory?
A: Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q: Can you provide OEM & Customized service?
A: Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Company Information
NanCon considers itself not only a manufacture but more comprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Zhejiang NanCon Industrial Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: Dry Block Temperature Calibrator, Pressure Gauge, Pressure Transmitter, Pressure Calibrator, Dead Weight Tester, Pressure Regulator, Level Meter, Flow Meter, Temperature Transmitters, Fork Density Meter, Detector weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
