| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | SLK-60 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $55.00~$68.00/pc |
| Packaging Details: | Digital Pressure Gauge Manometer, Gas Pressure Gauges Standard export package |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
Digital Pressure Gauge Manometer, Gas Pressure Gauges
Description Digital Pressure Gauge Manometer, Gas Pressure Gauges
Mini digital pressure gauge used diffused silicon pressure sensor as the core pressure-sensitive components together with a low-power circuit, a section of ordinary 9V battery can be used for more than a year, accurate and convenient. The intelligent digital pressure gauge flexible, easy to operate, easy to debug, safe and reliable. Widely used in water and electricity, water, petroleum, chemical, mechanical, hydraulic and other industries on the pressure of the fluid medium measurement display.

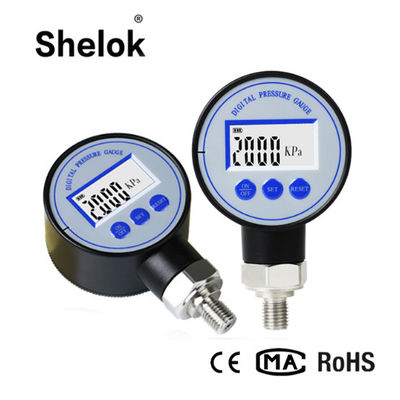

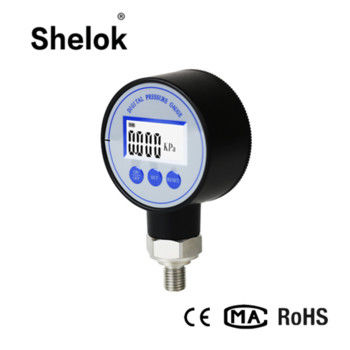

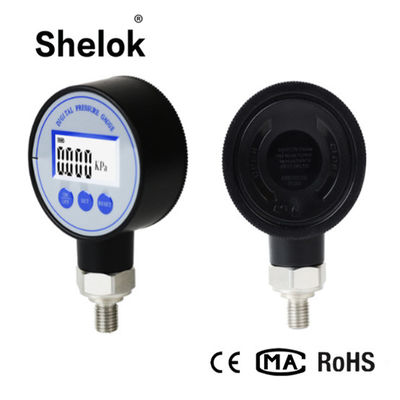

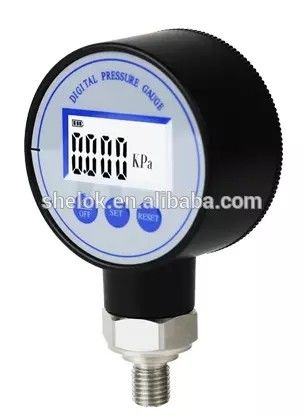

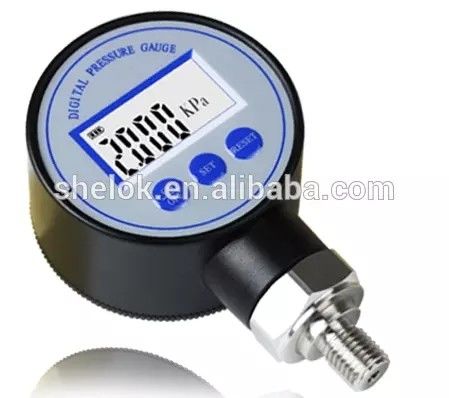

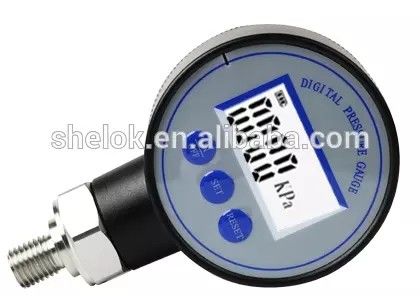

Detailed Images Digital Pressure Gauge Manometer, Gas Pressure Gauges
Specification Digital Pressure Gauge Manometer, Gas Pressure Gauges
| Pressure range | -0.1 ~ 60MPa (custom specific pressure ranges) |
| Accuracy | 0.2, 0.4 |
| Threaded connection | M20 * 1.5 M14 * 1.5 1 / 2NPT 1 / 4NPT or other custom thread |
| Display | 4 LCD |
| Power supply | 9V battery (power range is available between 3.6V ~ 9V) |
| Power | 200UA |
| Calibration | Support button calibration, enabling customers to be calibrated in the field, without Depot |
Features Digital Pressure Gauge Manometer, Gas Pressure Gauges
Large-screen LCD display, high resolution
Peak hold function to record the maximum pressure during the measurement value
Pressure percentage dynamic display, (the progress bar shows)
Five kinds of engineering unit selection: psi, bar, kpa, kg / cMpa
Select 1 ~ 15min automatic shutdown feature.
Micro-power, power-saving mode can work in more than two years of continuous work 2000 hours.
Parameter correction function, the instrument can live zero error value correction.
Upper and lower limit range
Sampling rate: 4 times / sec.
Apply pressure of various gases compatible with stainless steel measuring liquids.
Applications Digital Pressure Gauge Manometer, Gas Pressure Gauges
It is widely used in water and electricity, water, petroleum, chemical, mechanical,
hydraulic and other industries on the pressure of the fluid medium measurement display.
Selection Guide
1. Please advise us what's pressure range do you need?
2. Please advise us what's thread connection type do you need?
Related products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
