| Place of Origin: | Made In China |
| Brand Name: | WISE |
| Certification: | CE |
| Model Number: | YK-102 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD20~USD80/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Power Supply: | AC85 ~ 260V/DC24V | Accuracy: | 0.1%FS 0.2%FS 0.5%FS |
|---|---|---|---|
| Power Output: | 0.82-2.48ma | Connection: | 1/2npt, 1/4npt, M20*1.5 |
| Pressure Range: | -0.1~0~260MPa | Warranty: | 12 Months |
| Size: | 97*39mm | Display: | 0.56inch Four Red |
| Sampling Rate: | 3/s | Product Name: | Intelligent Pressure Control Switch Pressure Gauge |

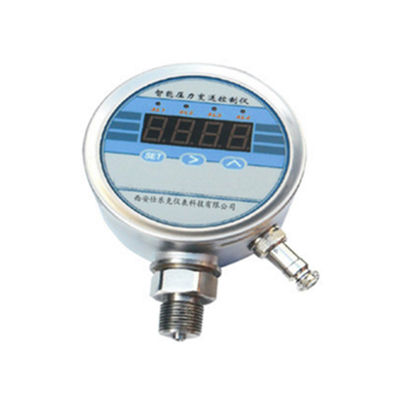

intelligent alarm Pressure control switch pressure gauge price
Description
YK-102 Digital electric contact pressure controller, use imported pressure sensors, intelligent microcontroller core is integrated pressure measurement, display, analog transmit output and alarm output is one of the highly integrated products.

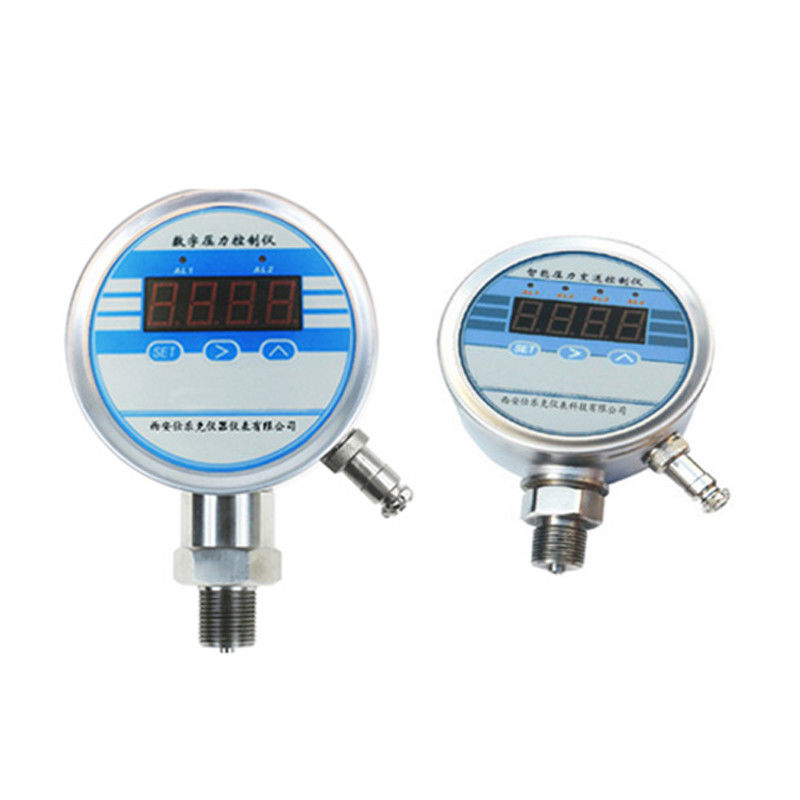

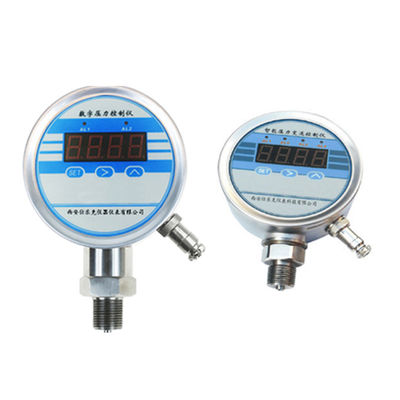

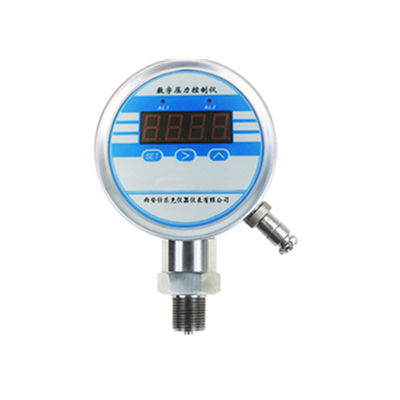

Detailed Images
Specification
| intelligent alarm Pressure control switch pressure gauge price | |
| Working power supply | AC85~260V/DC24V |
| Overall power consumption | Less than 3W |
| Sample rate | 3 times/second |
| Measurement accuracy | 0.2%FS±1 |
| Feeder output | DC 24V(25mA) |
| Constant current output | 0.82~2.48mA |
| Temperature drift | ≤0.02%FS/℃( typical value 100ppm/℃ ) |
| Indication range | -1999~9999 |
| Ultralimit display | “EEEE” |
| Digital tube display | 0.56 inch red 4 position |
| Contact capacity | AC220V 3A |
| Operating environment | 0~+70℃;≤ 85% RH |
