| Place of Origin: | Made In China |
| Brand Name: | WISE |
| Certification: | CE |
| Model Number: | YK-100B |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD107~USD263/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Power Supply: | 3.6V High-energy Lithium Battery | Output Signals: | RS485, RS232, ACI Wireless Communications,4 ~ 20mA,etc. |
|---|---|---|---|
| Connection: | M20X1.5 (external Thread) | Measuring Range: | -100KPa1KPa ~ 260MP |
| Accuracy Class: | 0.2, 0.4 | Display: | 5 Digit Dynamic Display + Analog Bargraph |
| Medium Temperature: | -40 °C ~ 90 °C | Warranty: | 12 Months |
| Product Name: | High Accuracy Stainless Steel Digital Pressure Gauge | Pressure Unit: | MmH2O MmHg Psi KPa MPa Pa Mbar Bar Pressure Up To Ten Units (optional) |

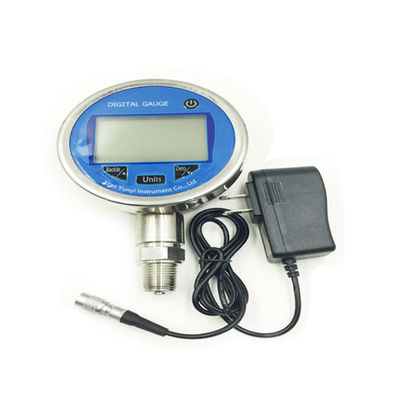

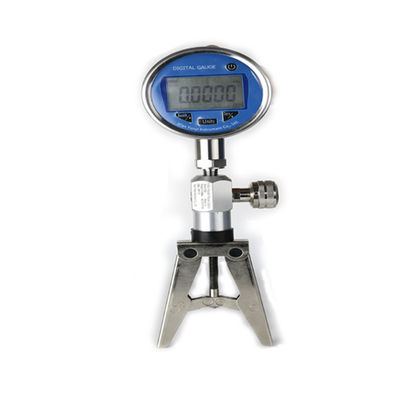

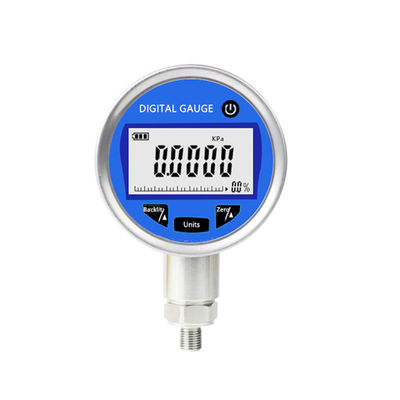

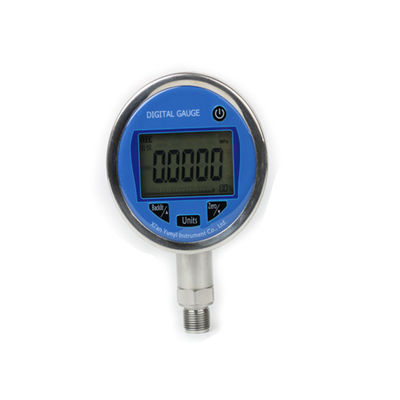

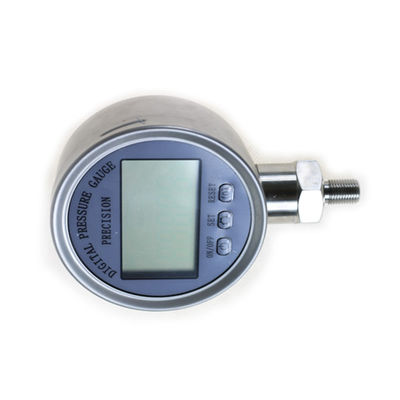

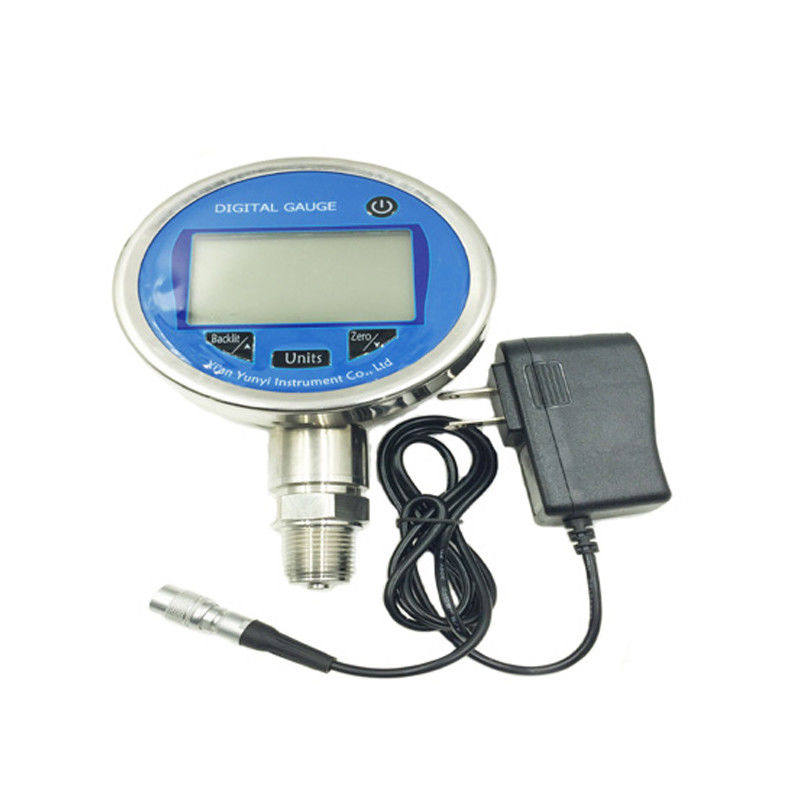

High Accuracy Stainless Steel Digital Pressure Gauge
Description
YK-100 digital pressure gauge imported sensor, superior performance, high accuracy, corrosion resistance, impact resistance, anti-vibration, high stability, etc.; signal processing circuitry using the latest ultra-low-power processors,signal processing and power management chip chips, using a large capacity,high performance lithium battery-powered, no external power supply. percentage using the digital display and analog display, intuitive readings, the product precision can reach 0.05 for ordinary pressure gauge, precision pressure gauge and pressure transmitter calibration and test, instead of themore traditional mechanical pointer pressure table-site measuring pressure.
Detailed Images
Features
1.Visual display the bar charts of pressure percentage
2.Can realize the self calibration correction
3.Acquisition speed can be set to (0.3~10) s/time
4.The battery life of up to 5 years
5.The technology of signal isolation and Anti electromagnetic and Radio frequency interference
6.Zero self stabilization technology, temperature compensation technology
Specifications
| YK-100B | Code | Accuracy | ||
| A | 0.05 | |||
| B | 0.1 | |||
| C | 0.2 | |||
| D | Flange | |||
| E | Special Accuracy | |||
| Code | Connection mode | |||
| 1 | M20*1.5 | |||
| 2 | 1/2NPT | |||
| 3 | M14*1.5 | |||
| 4 | G1/2 | |||
| 5 | Special connector | |||
| Code | Pressure type | |||
| G | Gage pressure | |||
| D | Differential pressure | |||
| A | Absolute pressure | |||
| YK-100B | A | 1 | G | |
Related Products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Company Information
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
Packing & Shipping
