| Place of Origin: | Made In China |
| Brand Name: | WISE |
| Certification: | CE |
| Model Number: | YK-100B |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD107~USD263/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Power Supply: | 24V DC 12V DC | Output: | 4-20ma |
|---|---|---|---|
| Connection: | M20*1.5, G1/2, 1/2npt | Pressure Range: | -0.1-60MPa |
| Weight: | 0.25kg | Warranty: | 12 Months |
| Product Name: | Battery Powered Oil, Water Pressure Gauge Digital | Material: | Stainless Steel |
| Accuracy: | 0.1/0.2/0.4/0.5 Class | Application: | Test Pressure And Calibrate Common Pressure Gauge |

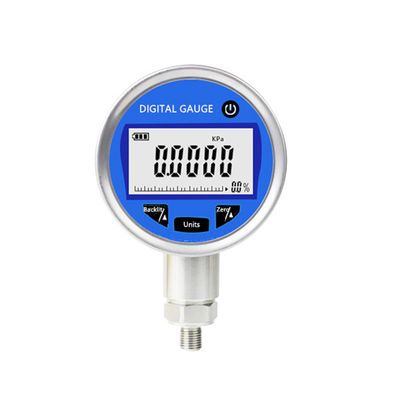

Battery Powered Oil, Water Pressure Gauge Digital
Description
YK-100B digital pressure gauge uses high-quality pressure sensor core, with high precision, corrosion resistance, shock resistance, anti-vibration, small drift, good stability and other advantages; use of low-power microprocessor delay battery life, no external power supply, Convenience. Can be used for gauge pressure, absolute pressure, differential pressure detection, the variety of forms, sub-ordinary type and explosion-proof type, diaphragm type; to meet the needs of a variety of measurements. It fundamentally overcome theshortcomings of low accuracy, poor reliability, high damage rate, etc., especially in the corrosion, vibration sites, even more remarkableperformance.

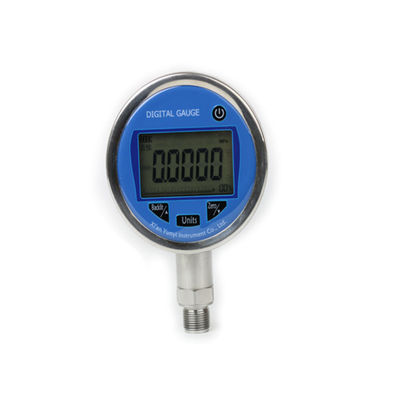

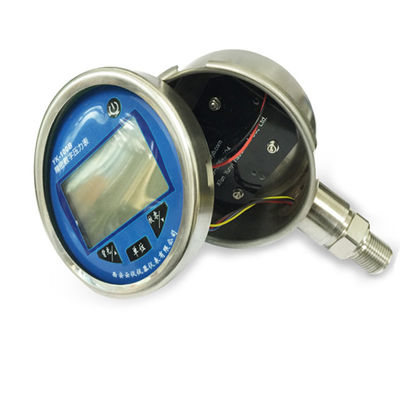

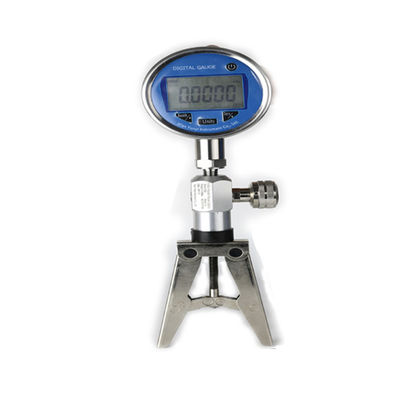

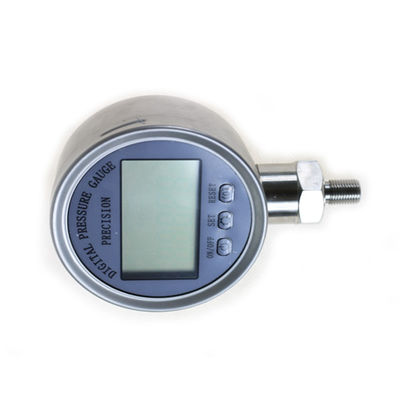

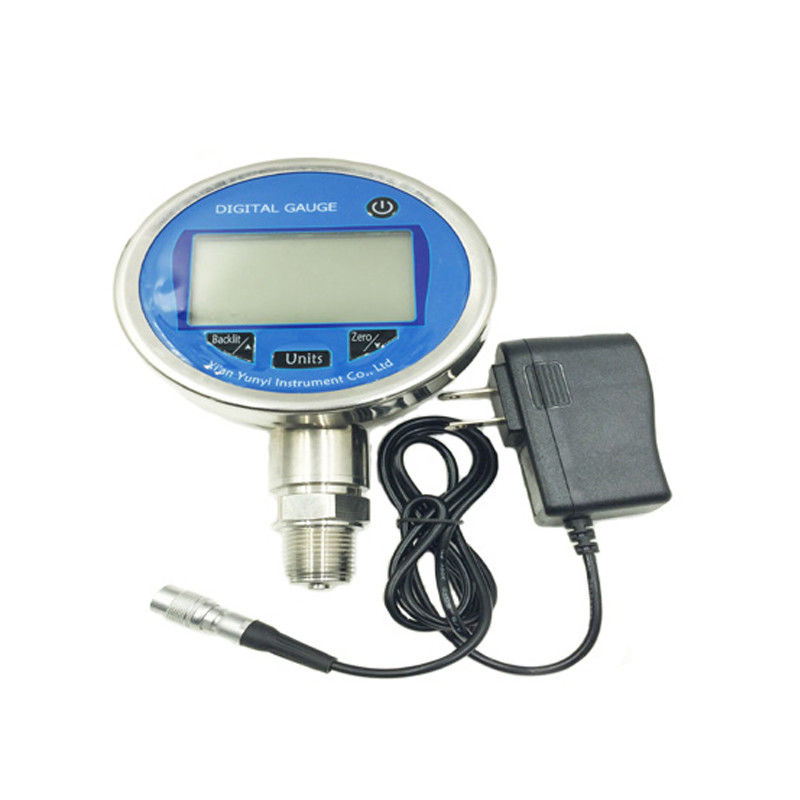

Detailed Images
Specification
| Battery Powered Oil, Water Pressure Gauge Digital | |
| Measuring range | -0.1 ~ 60MPa |
| Accuracy class | 0.1% FS 0.2% FS 0.5% FS |
| Display | 5-digit dynamic display |
| Power supply | 3.6V lithium battery |
| Medium temperature | -20 ~ 80 ℃ |
| Working environment temperature | -10 ~ 60 ℃ |
| Work environment humidity | ≤ 80% RH |
| Conventional thread interface | M20 * 1.5 (other thread ordering instructions) |
| Application | Test Pressure and Calibrate common pressure gauge |
| Product Keywords | Digital Pressure Gauge, Measuring Instruments |
Features
1.Large screen: large-screen LCD display, intuitive and clear readings
2.High-precision:advanced microprocessor technology, import control chip processing, stable performance
3.Low power consumption: ultra-low power intelligent control
4. Anti-corrosion, resistant to moisture
5. Easy to measure negative pressure, positive and negative pressure, positive pressure
6. Built-in battery without external power supply
7. Percentage progress bar reads more accurately
Applications
1. Check the general pressure gauge
2. Check the precision pressure gauge
3. Check sphygmomanometer, other pressure meter
4. Measuring precision pressure
Selection Guide
| YK-100B | Code | Accuracy | ||
| A | 0.05 | |||
| B | 0.1 | |||
| C | 0.2 | |||
| D | Flange | |||
| E | Special Accuracy | |||
| Code | Connection mode | |||
| 1 | M20*1.5 | |||
| 2 | 1/2NPT | |||
| 3 | M14*1.5 | |||
| 4 | G1/2 | |||
| 5 | Special connector | |||
| Code | Pressure type | |||
| G | Gage pressure | |||
| D | Differential pressure | |||
| A | Absolute pressure | |||
| YK-100B | A | 1 | G | |
Related products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Company Information
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
Packing & Shipping
