| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | TP Series |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $865~$2100/pc |
| Packaging Details: | Water Pressure Balance Load Cell Test Equipment Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |

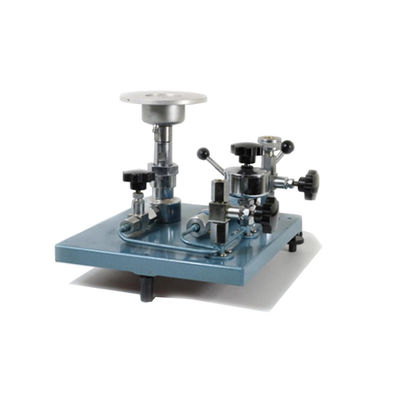

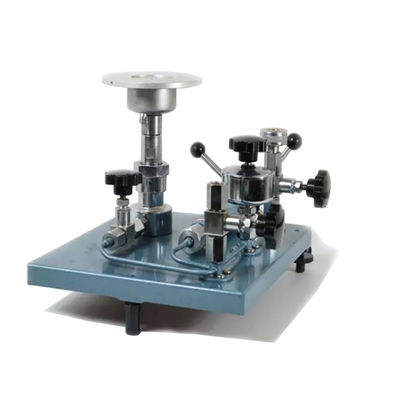

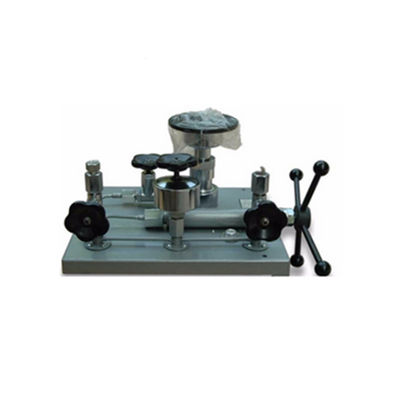

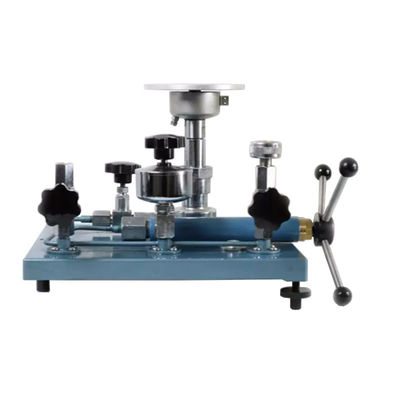

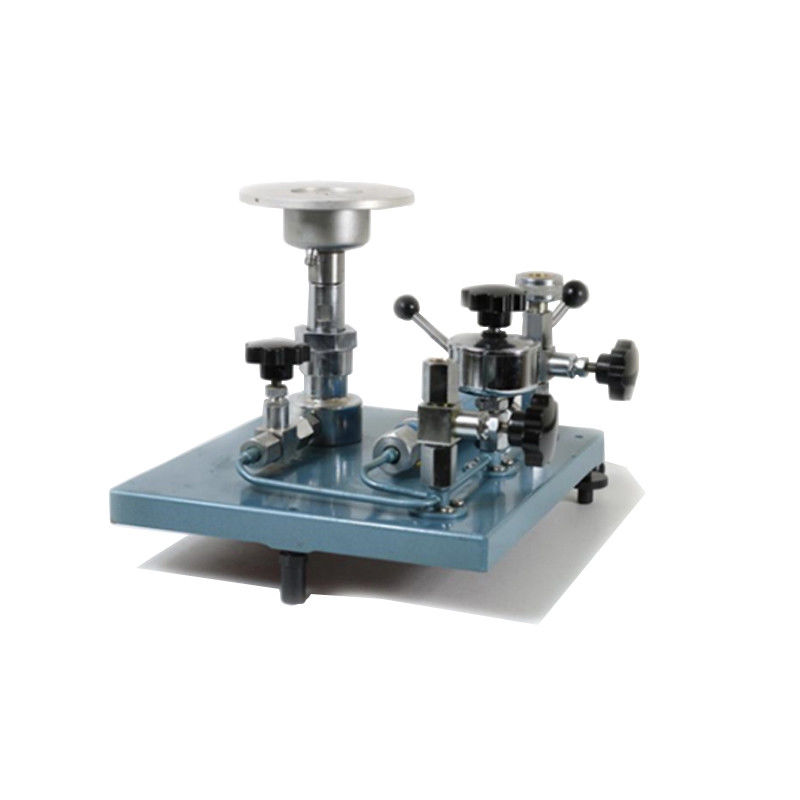

| Product Name: | Dead Weight Piston Pressure Sensor | Pressure Range: | 0-60mpa |
|---|---|---|---|
| Work Temperature: | 15 To 30℃ | Diemnsion: | 65x55x35cm |
| Weight: | 40-90kg | Application: | Pressure Gauge And Pressure Transmitter |
| Medium: | Oil | Thread: | 1/4NPT Or Others |
| Warranty: | 24 Months | OEM: | Yes |
YS series Piston DWT is a high accuracy high reproducibility and high reliability of the standard pressure measuring instruments based onPascal's law and the principle of hydrostatic equilibrium produced. Mainly used for measuring room, laboratory and production as part of
scientific experiments, or use a reference pressure.
The working principle of YS dead weight tester is based on the piston itself weight, and add the dedicated weights on piston weight, the pressure produced on the piston area and the hydraulic pressure balance status of the container.
Piston dead weight tester composed of the two part test pump and measuring system.
See figure.
1. Weights 2.Instructions Plate
3.Pedestal 4.Adjusting Screw
5.Connecting pipe
6.7.8.valve
9.Oil Cup
10.level Instrument
11.Hand Pump 12. Handwheel
13.Measurement System
