| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | JY Series |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $1350~$7500/pc |
| Packaging Details: | Water Pressure Balance Load Cell Test Equipment Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Hydraulic Pressure Gauge Calibrator Piston Deadweight Tester | Power Type: | Hydraulic |
|---|---|---|---|
| Usage: | Universal Testing Machine | Pressure Type: | Hydrostatic |
| Warranty: | 12 Months | Type: | Measuring Instruments |
| Accuracy: | 0.05%F.S | Application: | Hydraulic Industries |
| Case: | Stainless Steel Casing | Color: | Blue |
Description
Piston pressure gauge/pressure calibrator/dead weight tester is a high precision and reliable standard pressure calibrator which is basic on Pascal law and a statics balance principle. It is usually called piston gauge or manometer, sometimes pressure balance instrument, major used in the lab and measure workshop, or as a pressure calibrator. Sometimes, we use it on some other gauges to calibrate the data.

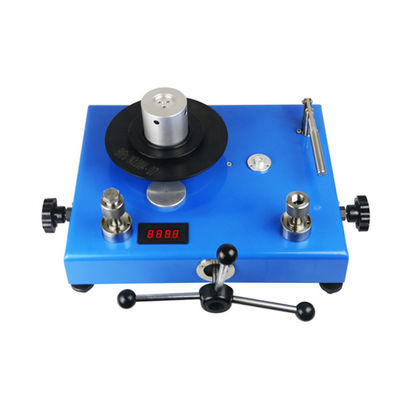

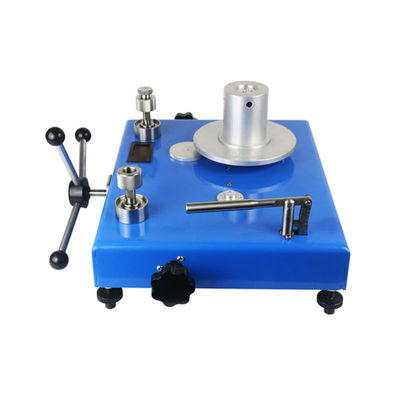

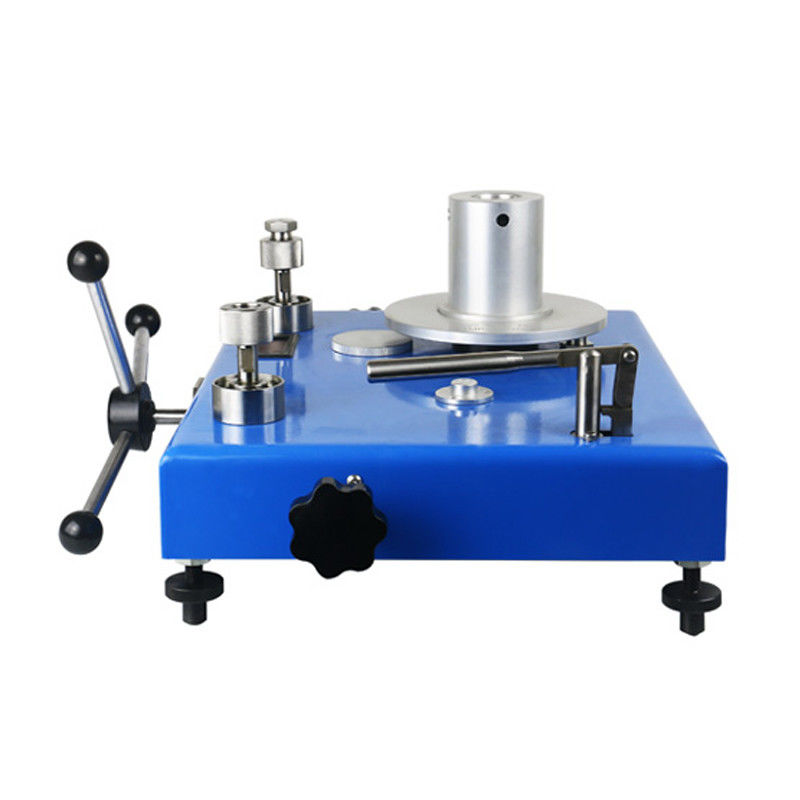

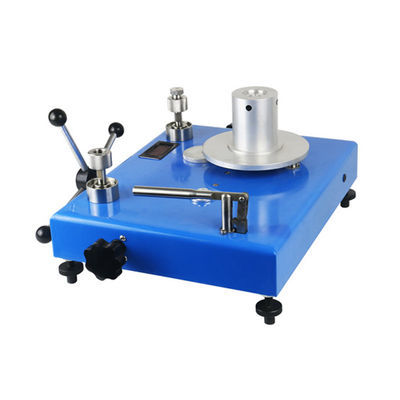

Detailed Images
Specification
| Model number | Range (MPa) | Accuracy |
| JY-0.6 | 0.04~0.6 |
±0.05%
±0.02%
±0.01% |
| JY-6 | 0.1~6 | |
| JY-25 | 0.5~25 | |
| JY-60 | 1~60 | |
| JY-100 | 2~100 | |
| JY-160 | 2~160 | |
| JY-250 | 5~250 | |
| Others need custom | ||
Features
1. Piston and piston cylinder are using high strength, high hardness, and low temperature expansion coefficient of tungsten carbide material after, the working environment temperature is wide, stable performance of 20±5℃.
2. The load center of gravity is low, the weight is directly added to the piston through the hanging basket, the piston runs smoothly, the pressure fluctuation is very small, and the value is accurate.
3. Above 25MPa, pressure transmitting medium use diisooctyl sebacate with small viscosity, to ensure a high sensitivity.
4. The weights of the tester is made of stainless steel.
5. Piston position with displacement sensor monitoring, the piston up and down stroke is ±1.5mm, the instrument display has the advantages of sensitive, eye-catching, accurate and so on.
6. Range wide, at the lower limit of 1MPa, the basic error is ±0.02% or ±0.05%, a KY100 type tester, can replace 3 testers of 6,60,100MPa.
7. It is labor saving, and can be easily to add pressure to be 100MPa.
Related products
|
|
|
|
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delivery of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
