| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | KY Series |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $840~$3000/pc |
| Packaging Details: | Water Pressure Balance Load Cell Test Equipment Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Power Type: | Hydraulic | Usage: | Universal Testing Machine |
|---|---|---|---|
| Pressure Type: | Hydrostatic | Product Name: | Reliable Sensitive Pressure Dead Weight Tester Calibrator |
| Warranty: | 12 Months |

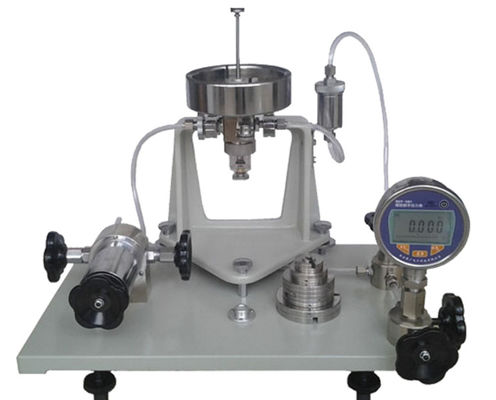

Description Dead Weight Vacuum Gauge Tester
SLK - 0.25, YS 0.6 type piston type pressure gauge (hereinafter referred to as the pressure gauge) is mainly used to test precision pressure gaugethat with pressurerange from 0.1 ~ 0.25 MPa to 0.1 ~ 0.6 MPa, and with accuracy of 0.1, 0.16, 0.25 and 0.4 class. Pressure gauge accuracyis 0.02 or 0.05, working medium is gas.
Specification Dead Weight Vacuum Gauge Tester
| Parameter | Unit | Type | ||
| SLK-0.25 | SLK-0.6 | |||
| Measure Range | MPa | -0.005~-0.1;0.005~0.25 | -0.005~-0.1;0.005~0.6 | |
| Accuracy | ±0.05%,±0.02% | ±0.05%,±0.02% | ||
| Pressure weights | pressure | MPa | 0.05;0.02;0.01;0.005 | 0.05;0.02;0.01;0.005 |
| Quantity | Piece | 3 3 2 2 | 10 3 2 3 | |
| Negative weights | Pressure | MPa | -0.02;-0.01 | -0.02;-0.01 |
| Quantity | Piece | 4 1 | 4 1 | |
| Fast joint thread | M20x1.5 | |||
Features Dead Weight Vacuum Gauge Tester
Piston and cylinder is grinded precisely; small roundness error and clearance.
Weights has been made correction of pressure deformation coefficient and local gravitational acceleration.
Special piston pressure switch valve; piston pressure platform can be used as pressure pump or pressure source independently.
Consistent with nominal range and measuring range.
Can be equipped kg weights and Mpa weights.
Using quick connectors, no leakage
Selection Guide Dead Weight Vacuum Gauge Tester
1.Pressure Range:
2.Accuracy:
