| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | Y047/Y055 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $840~$3000/pc |
| Packaging Details: | Water Pressure Balance Load Cell Test Equipment Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Power Type: | Floating Ball Dead Weight Tester Piston Type Pressure Gauge |
|---|

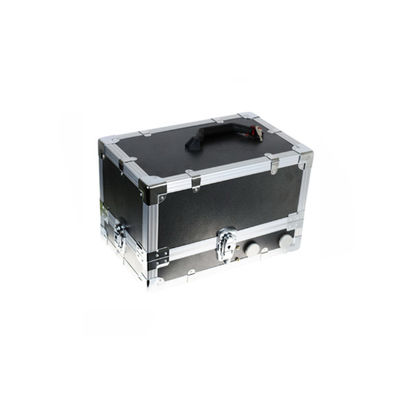

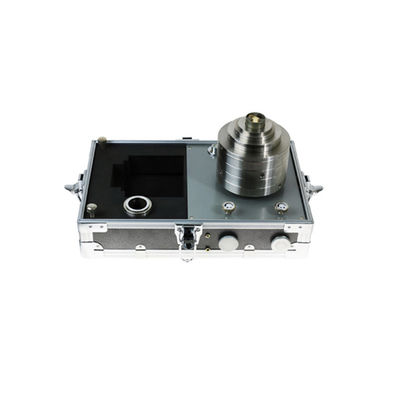

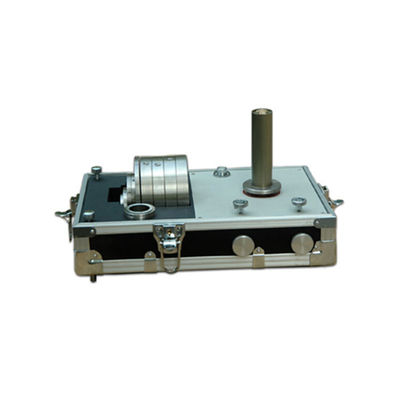

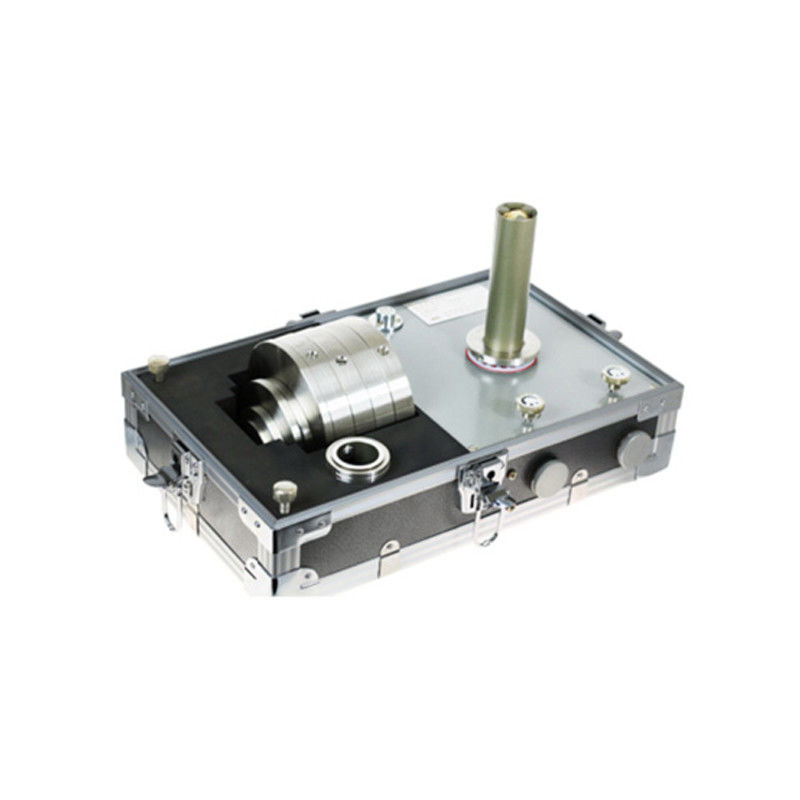

Floating Ball Dead Weight Tester Piston type pressure gauge
Description :Floating Ball Dead Weight Tester Piston type pressure gauge
Floating ball type pressure meter with compressed air or nitrogen gas as the pressure source, is a aerodynamic load pressure meter that wth precision float ball in pressure area of lower sphere working state for the effective area of the floating ball.
Parameter of Floating Ball Dead Weight Tester Piston type pressure gauge :
| Y047 parameter | |
| Item | Data |
| Pressure (MPa) | 0.001~0.25 |
| Accuracy (%) | ±0.05 |
| Temperature (℃) | 15~30 |
| Temperature Coefficient( /℃) | 1.7×10-5 |
| Rated air pressure (MPa) | 0.5 |
| Maximum air pressure (MPa) | 0.7 |
| Min. air pressure (MPa) |
1.5 times of output pressure (lower than 0.3MPa is 0.3MPa) |
|
rated air pressure Air consumption (l/h) |
≤150 |
| Dimension (mm) | 380×240×260 |
| Weight (kg) | ≈15 |
| Y047weights | ||
| Weights | Weight(MPa) | Qty(pcs) |
|
Standard weights |
0.05 | 4 |
| 0.02 | 1 | |
| 0.01 | 2 | |
| 0.005 | 1 | |
| 0.002 | 1 | |
| 0.001 | 2 | |
| Short weight rack | 0.001 | 1 |
| Long weight rack | 0.005 | 1 |
Y055 Technical Parameters:
| Y055weight,Y055Aweights | |||
| Weights | Weights(MPa) | Qty(pcs) | |
| Y055 | Y055A | ||
|
Standard weights |
0.05 | 11 | 7 |
| 0.02 | 1 | 1 | |
| 0.01 | 2 | 2 | |
| 0.005 | 1 | 1 | |
| Long weight rack | 0.005 | 1 | 1 |
| Y055,Y055Aparameter | ||
| Item | ||
| Pressure (MPa) | 0.005~0.6 | 0.005~0.4 |
| Accuracy (%) | ±0.05 | |
| Temperature (℃) | 15~30 | |
| Temperature Coefficient ( /℃) | 1.7×10-5 | |
| Rated air pressure (MPa) | 0.9 | 0.6 |
| Maximum air pressure (MPa) | 1 | |
| Min. air pressure(MPa) |
1.5times of output pressure (lower 0.3MPa is 0.3MPa) |
|
|
rated air pressure Air consumption (l/h) |
≤300 | |
| Dimension (mm) | 380×240×260 | |
| Weight (kg) | ≈15 | ≈12 |
Package:
About us-Shelok:
Contact me : if you need Floating Ball Dead Weight Tester Piston type pressure gauge, no hesitate to let me know
