Place of Origin: | Made In China |
Brand Name: | NanCon |
Certification: | CE |
Model Number: | YS Series |
Minimum Order Quantity: | 1pc |
---|---|
Price: | $865~$965/pc |
Packaging Details: | Water Pressure Balance Load Cell Test Equipment Standard export carton packing or can customized |
Delivery Time: | 3 ~ 7 Working Days After Payment |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 10000pcs/Month |
Pressure Range: | 0-60mpa | Working Medium: | Oil |
---|---|---|---|
Delivery Time: | About 7 Days | Thread Size: | M20*1.5 |
Warranty: | 12Months | Lower Limit: | 0.04MPa |
Upper Limit: | 0.6MPa | Usage: | Dead Weight Tester |
Power: | Hydraulic | Product Name: | Hand Hold Pump Dead Weight Tester Hydraulic Pressure Calibrator |

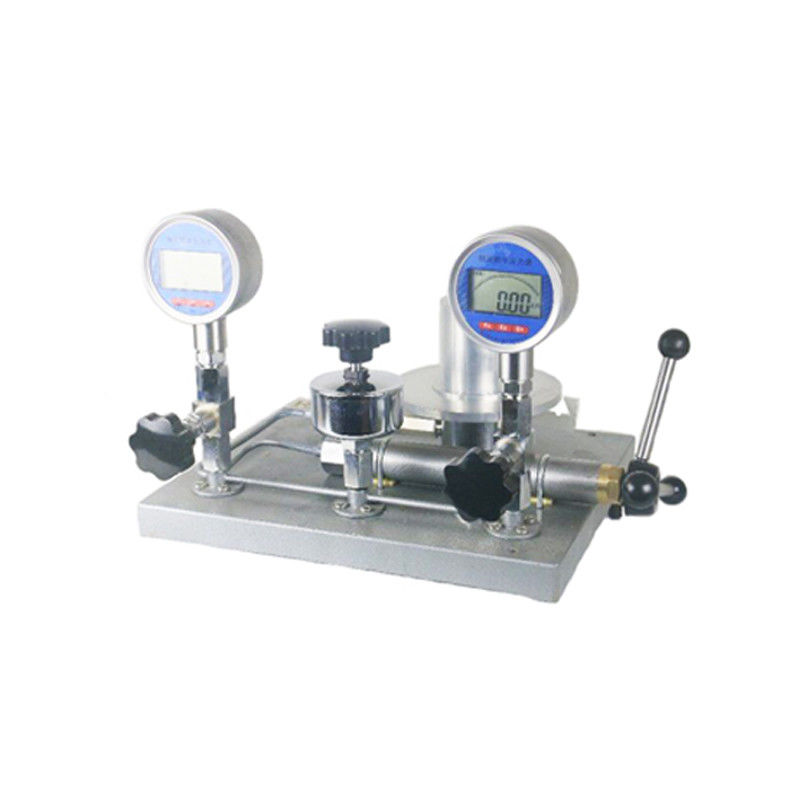

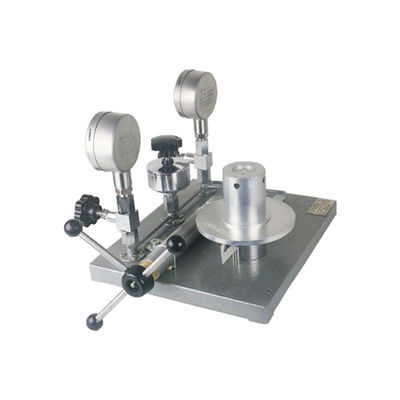

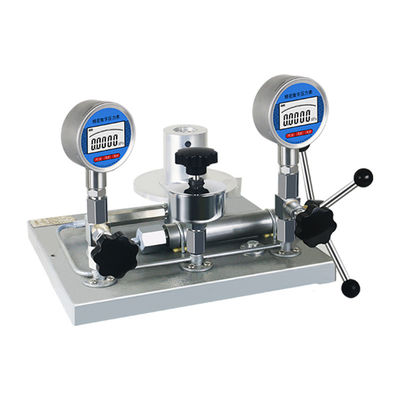

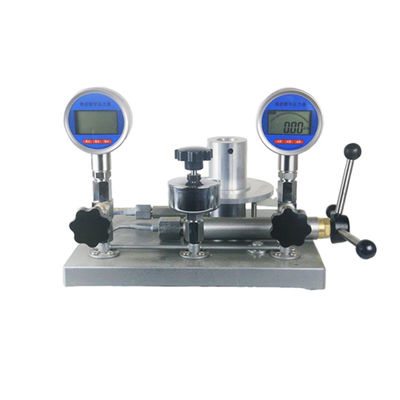

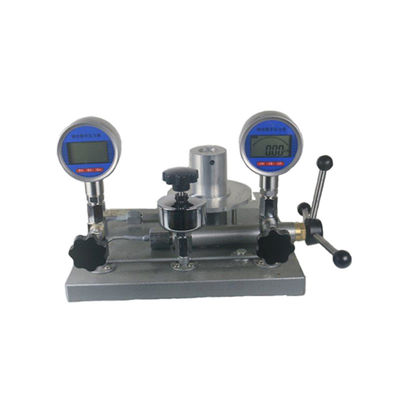

Hand hold pump Dead Weight Tester Hydraulic Pressure Calibrator
Description Hand hold pump Dead Weight Tester Hydraulic Pressure Calibrator
Hydraulic pressure calibrator Dead weight tester is a Standard calibration. Dead weight testers are so called primary standards which means that the pressure measured by a dead weight tester is defined through other quantities; Length, mass and time. Typically dead weight testers are used in calibration laboratories to calibrate pressure transfer standards like electronic pressure measuring devices.
Specification Hydraulic Pressure Calibrator Dead Weight Tester
Parameter | Unite | Pressure Range | ||||
0.6Mpa | 6Mpa | 25Mpa | 60Mpa | |||
Upper limit | Mpa | 0.6 | 6 | 25 | 60 | |
Lower limit | Mpa | 0.04 | 0.1 | 0.5 | 1 | |
Nominal piston area | cm2 | 1 | 0.5 | 0.2 | 0.1 | |
Base and Piston | Nominal mass | Kg | 0.4 | 0.5 | 1 | 1 |
Generated pressure | MPa | 0.04 | 0.1 | 0.5 | 1 | |
Special Weights | Nominal mass | Kg | 0.1;0.5 | 0.5;2.5 | 1;5 | 1;5 |
Generated pressure | MPa | 0.01;0.05 | 0.1;0.5 | 0.5;2.5 | 1;5 | |
Qty | pcs | 6 ;10 | 4;11 | 4;9 | 4;11 | |
Thread Size | M20×1.5 | M20×1.5 | M20×1.5 | M20×1.5 | ||
Weight | Kg | 35 | 60 | 47 | 84 | |
Medium | 25# transformer oil or mixer of transformer oil and kerosene oil as 7:1, the kinematic viscosity is between 9 ~ 12 centistoke at 20℃,acid value is not more than 0.05mg KOH/g | Sebacate (DIDG or diisooctyl sebacate) the kinematic viscosity is between 20 ~ 25 centistoke at 20℃,acid value is less than 0.05mg KOH/g |
