| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | KY Series |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $865~$945/pc |
| Packaging Details: | Water Pressure Balance Load Cell Test Equipment Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Power Type: | Other | Usage: | Universal Testing Machine |
|---|---|---|---|
| Measuring Range: | 5-250Mpa | Accuracy Class: | 0.02~0.05 |
| Product Name: | Digital Piston Pump Pressure Dead Weight Tester |
Digital Piston pump pressure Dead Weight Tester
Description
KY series piston gauge is our new R & D product manufactured according to the latest national "piston gauge" test procedures (JJG59-2007). The key components of piston gauge uses a tungsten carbide material with a high hardness and low
temperature coefficient of linear expansion, which improving the wear resistance of the piston,therefore only a little (negligible )deformation under the pressure,performance is extremely stable. Working medium with a piston isooctyl sebacate,
so pressure gauge with high sensitivity.
As a result of new materials, new technologies, new processes,the technical indicators of new piston gauge has been greatly improved. Thus widely used to test digital pressure gauge, precision pressure gauges, pressure transmitters, pressure sensors and other pressure instruments.

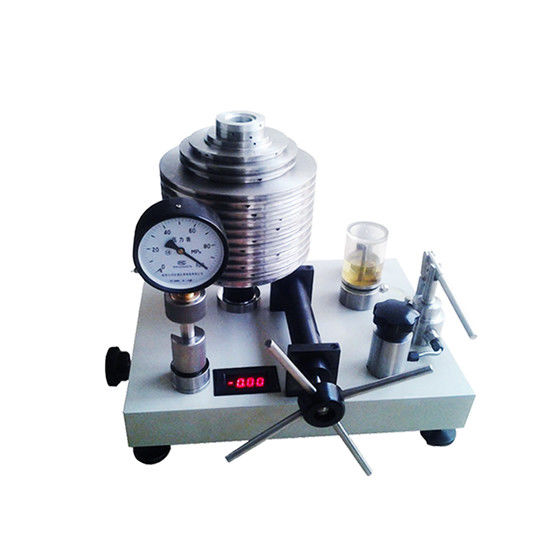

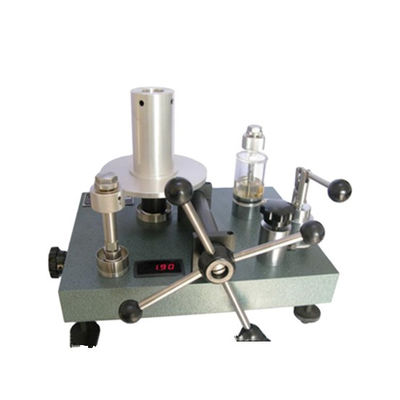

Detailed Images
Specification
Features
1. The piston and cylinder are made of high strength, high stiffness, and low temperature coefficient of linear expansion of the carbide grinding tungsten carbide material , with a wide range of ambient temperature , stable performance 20 ± 5 ℃.
2. The load center of gravity low, weight by Cradle applied directly to the piston, the piston smooth operation, the pressure fluctuation is extremely small, accurate indication.
3. When pressure more than 25MPa ,the medium uses a small viscosity isooctyl sebacate, thus ensuring a very high sensitivity.
4. The weights used are all non-magnetic stainless steel material.
5.The piston displacement sensor used to monitor the working position, the piston up and down stroke of ±1.5mm, instrument display is sensitive, smart, and accurate.
6. Wide range, at the lower 1MPa, the basic error of ± 0.02% or ± 0.05%, a KY100 type manometer, capable of reaching the upper limit of the current domestic 6,60,100MPa three measuring manometer.
7. pressure regulator easy , even at 250MPa pressure could ease.
Applications
The pistons and piston cylinder is made of the carbide tungsten carbide materials which has high strength, high hardness, and low temperature , so,it has wide working temperature and stable performance of 20 + / - 5 ℃.
Random error ±0.02% or ±0.05%
The weight of the pressure gauge is made of stainless steel
The piston top and bottom moves ±1.5mm
The piston runs smoothly, the pressure fluctuation is minimal and the value is accurate.
Applications of Digital Piston pump pressure Dead Weight Tester:
Piston gauges are used to calibrate customer piston gauges and pressure sensing devices
Selection Guide
| Digital Piston pump pressure Dead Weight Tester | ||
| Model number | Range (MPa) | Accuracy |
| KY-0.6 | 0.04~0.6 |
±0.05%
±0.02% |
| KY-6 | 0.1~6 | |
| KY-25 | 0.5~25 | |
| KY-60 | 1~60 | |
| KY-100 | 2~100 | |
| KY-160 | 2~160 | |
| KY-250 | 5~250 | |
| KY-300 | 5~300 | |
Related products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
