| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | Y047, Y055, Y055A |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $865~$945/pc |
| Packaging Details: | Water Pressure Balance Load Cell Test Equipment Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Pressure Range: | 0-0.6mpa | Accuracy: | ±0.05 |
|---|---|---|---|
| Working Temperature(°C): | 15~30 | Temperature Coefficient ( /°C): | 1.7*10-5 |
| Rated Air Pressure (MPa): | 0.5,0.9 Or 0.6 | Dimension(mm): | 380*240*260 |

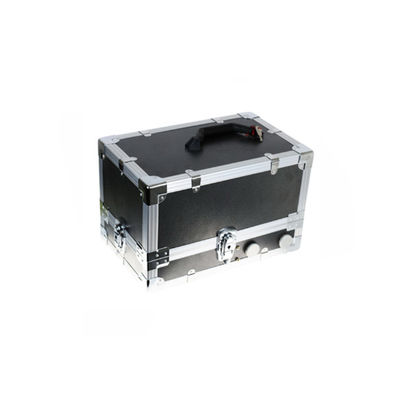

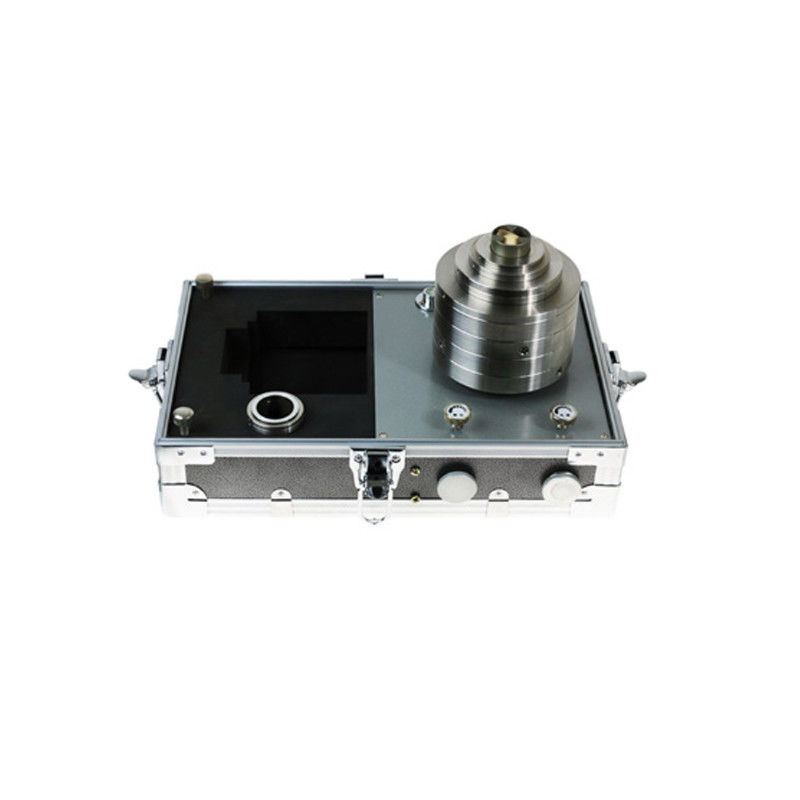

Float ball pressure gauge/pressure calibrator, Dead Weight Tester
Description
Ball pneumatic dead weight tester is as a pressure resource of pressed air and nitrogen. It is pneumatic loaded pressure calibrator to use the floating ball.
It is a kind of pressure benchmark instrument, with nitrogen or instrument compressed air as agergy.
It is an ideal equipment that calibrate all kinds of high accuracy of pressure transmitter, differential transmitter and precision of pressure gauge
Detailed Images
Specification
| Float ball pressure gauge/pressure calibrator, Dead Weight Tester | |||
| Model No. | Y047 | Y055 | Y055A |
| Output pressure ranges | 0.001~0.25Mpa | 0.005~0.6Mpa | 0.005~0.4Mpa |
| Accuracy | ±0.05% | ±0.05% | ±0.05% |
| Working temperature | 15~30℃ | 15~30℃ | 15~30℃ |
| Temperature Coefficient | 1.7×10-5/℃ | 1.7×10-5/℃ | 1.7×10-5/℃ |
| Rated air pressure | 0.5Mpa | 0.9Mpa | 0.6Mpa |
| Max air pressure | 0.7Mpa | 1Mpa | 1Mpa |
| Lowest Air Pressure |
1.5 times of output pressure(As 0.3 MPa when less than 0.3 MPa) |
1.5 times of output pressure(As 0.3 MPa when less than 0.3 MPa) |
1.5 times of output pressure(As 0.3 MPa when less than 0.3 MPa) |
| Air consumption of Rated Air Pressure | ≤150 l/h | ≤300 l/h | ≤300 l/h |
| Dimension | 380×240×260mm | 380×240×260mm | 380×240×260mm |
| Weight | 15KGS | 15KGS | 15KGS |
Related products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Company Information
NanCon considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Zhejiang NanCon Industrial Technology Co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
