| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | DK Series |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $1350~$6950/pc |
| Packaging Details: | Water Pressure Balance Load Cell Test Equipment Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Economic Piston Calibrate Pressure Gauge Dead Weight Tester | Type: | DK Series |
|---|---|---|---|
| Accuracy: | 0.05% | Warranty: | 12Months |

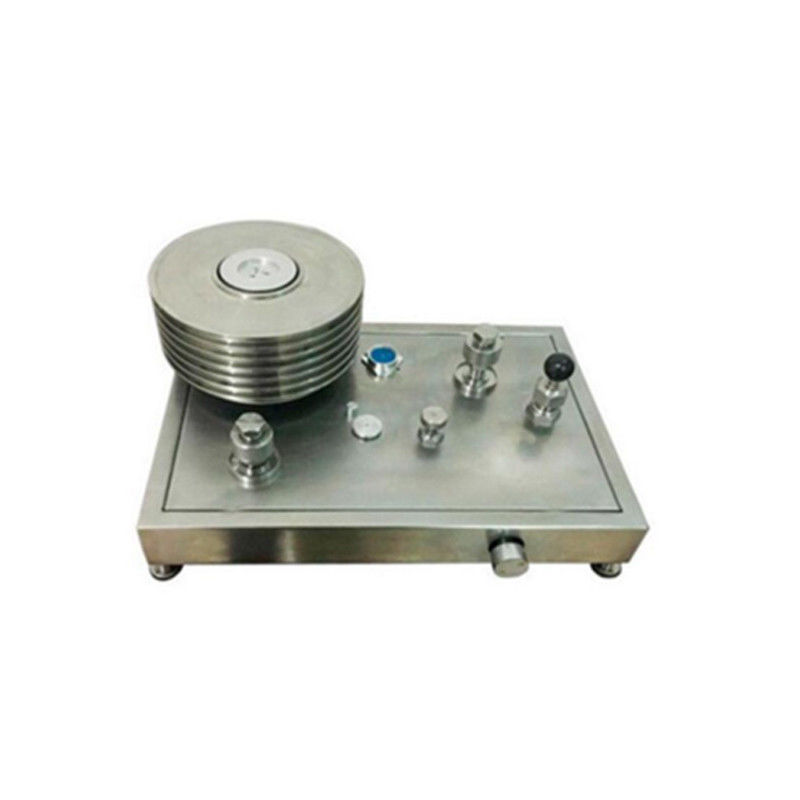

Economic Piston Calibrate pressure gauge dead weight tester
Description
DK series piston type pressure gauge is in our factory YS series piston manometer, KY series piston type pressure gauge, on the basis of structural optimization, with super abrasion and perfect reliability.DK series piston pressure gauge the progress of 0.005%;160 mpa. The maximum range of DK series adopts modular structure, a platform can install different piston system, achieve the goal of economical and practical.
Detailed Images
Specification
Modular: piston system fully modular structure and pressure generator, various modules can realize single work or combination of functions.
Stability: the liquid piston with low weight, to ensure high reliability and stability.
Interchangeability: - any of the piston - sleeve unit.
Piston - sleeve unit: use tungsten carbide materials; Other parts of the austenitic stainless steel is made of high quality, which can effectively avoid deformation . There are six range to choose from: (0.1 -) 0.1 MPa (0.1 -) 0.1 MPa (0.1 to 2.5 MPa (0.1-6) MPa (1-60) MPa MPa (1-100)
Jordan farmar: the demagnetization quality austenitic stainless steel
Selection Guide
| DKHH uncertainty :0.005%rdg( Medium: sebacic acid ester ) | |
| DKHH0025 | (0.1—2.5)MPa |
| DKHH0006 | (0.04—0.6)MPa |
| DKHH0060 | (0.1—6)MPa |
| DKHH0600 | (1—60)MPa |
| DKLP0100 | (1—100)MPa |
| DKHH uncertainty :0.02%rdg ( Medium: sebacic acid ester ) | |
| DKHH2025 | (0.1—2.5)MPa |
| DKHH2006 | (0.04—0.6)MPa |
| DKHH2060 | (0.1—6)MPa |
| DKHH2600 | (1—60)MPa |
| DKHH2100 | (1—100)MPa |
| DKHH uncertainty :0.05%rdg ( Medium: sebacic acid ester ) | |
| DKHH5025 | (0.1—2.5)MPa |
| DKHH5006 | (0.04—0.6)MPa |
| DKHH5060 | (0.1—6)MPa |
| DKHH5600 | (1—60)MPa |
| DKHH5100 | (1—100)MPa |
| DKHH uncertainty :0.02%rdg ( Medium: sebacic acid ester ) | |
| DKHH2025W | (0.1—2.5)MPa |
| DKHH2006W | (0.04—0.6)MPa |
| DKHH2060W | (0.1—6)MPa |
| DKHH2600W | (1—60)MPa |
| DKHH uncertainty :0.05%rdg ( Medium: distilled water ) | |
| DKHH5025W | (0.1—2.5)MPa |
| DKHH5006W | (0.04—0.6)MPa |
| DKHH5060W | (0.1—6)MPa |
| DKHH5600W | (1—60)MPa |
