| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | XY-2002A |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $840 ~$950/pc |
| Packaging Details: | Water Pressure Balance Load Cell Test Equipment Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | High Pressure Pneumatic Pressure Calibrator Hot Sale | Pressure Range: | -0.095-6Mpa |
|---|---|---|---|
| Minimum Controllable Adjustment Degree: | 10pa | Output Interface: | M20 *1.5 (three) |
| Dimension: | 300mm *300mm *150mm | Weight: | 10kg |
High pressure pneumatic pressure calibrator hot sale
Description
Pressure calibrator hydraulic pump price is developed by our company for high pressure, medium pressure, low pressure gas pressure and vacuum pressure source.The product use high quality stainless steel and aluminum alloy materials,with advanced aviation sealing technology and sealing materials, refined through a variety of processing technology, the unique structure of the product and is easy to operate .Could be used for checking the pressure gauge, pressure transmitter, pressure sensor and other pressure instruments as well as vacuum pressure gauge .

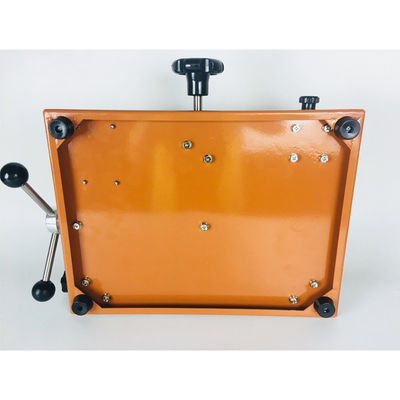

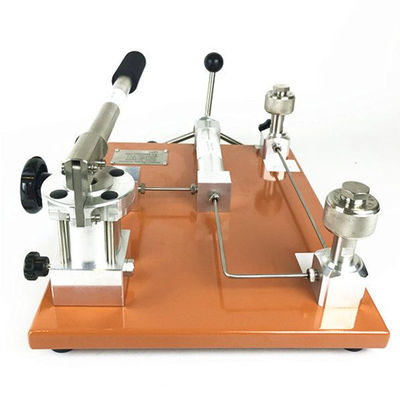

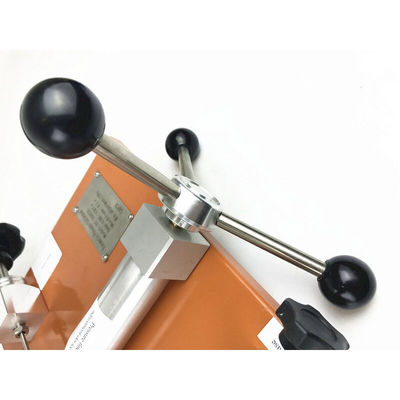

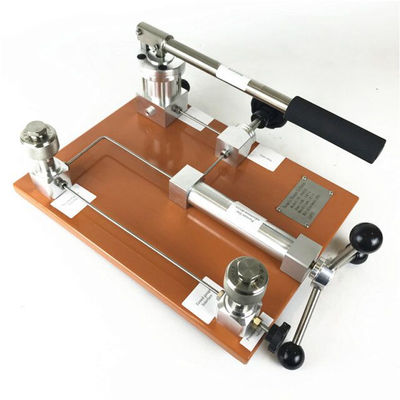

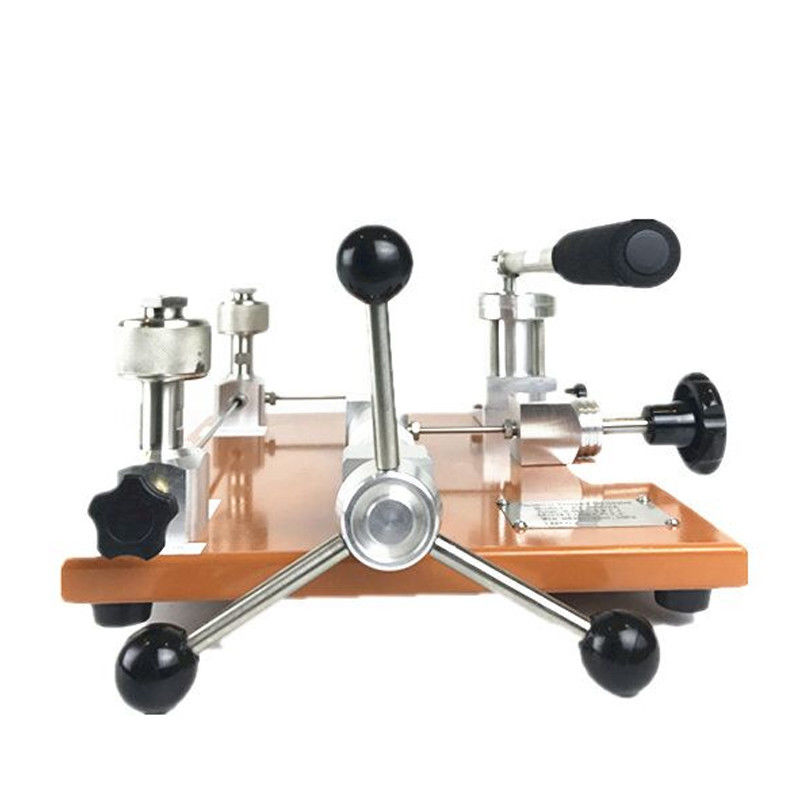

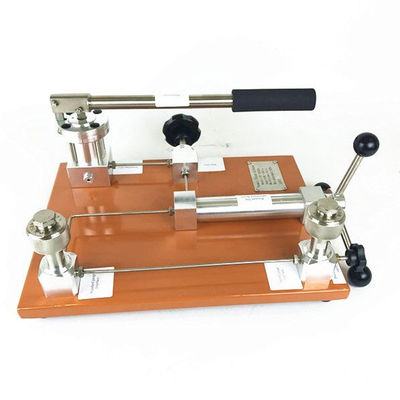

Detailed Images
Specification
| Create pressure range | (-0.095 ~ 10) MPa. |
| Selection |
XY-2002a (-0.095 ~ 4) MPa Low XY-2002b (-0.095 ~ 6) MPa pressure XY-2002c (-0.095 ~ 10) MPa high-pressure |
| Output size | M20 * 1.5 (based on field instrumentation interfaces can provide a variety of different adapters, see pressure accessories) |
| Minimum controllable adjustment degree | 10Pa |
| Output Interface | M20 × 1.5 (three) |
| Dimension | 300mm × 300mm × 150mm |
| Weight | 10kg |
Features
1.Pressure transmission medium is clean and free of impurities of water, do not pollute the environment
2.Out of the oil-water separator, oil water separator to avoid isolating membrane rupture pressure source pollution and on the instruments were seized after the oil into the hidden dangers.
3. Special screw-down device, making steady boost and back check, easy to operate.
4. solve the traditional check valve control loop instability.
5. tiled open structure, easy maintenance and repair.
6. Unique exhaust mechanism, no do not create pressure on the pressure and difficult phenomenon.
7. medium efflux, avoiding dirty recycled to the pressure medium source pollution.
